Diagnostic Procedure

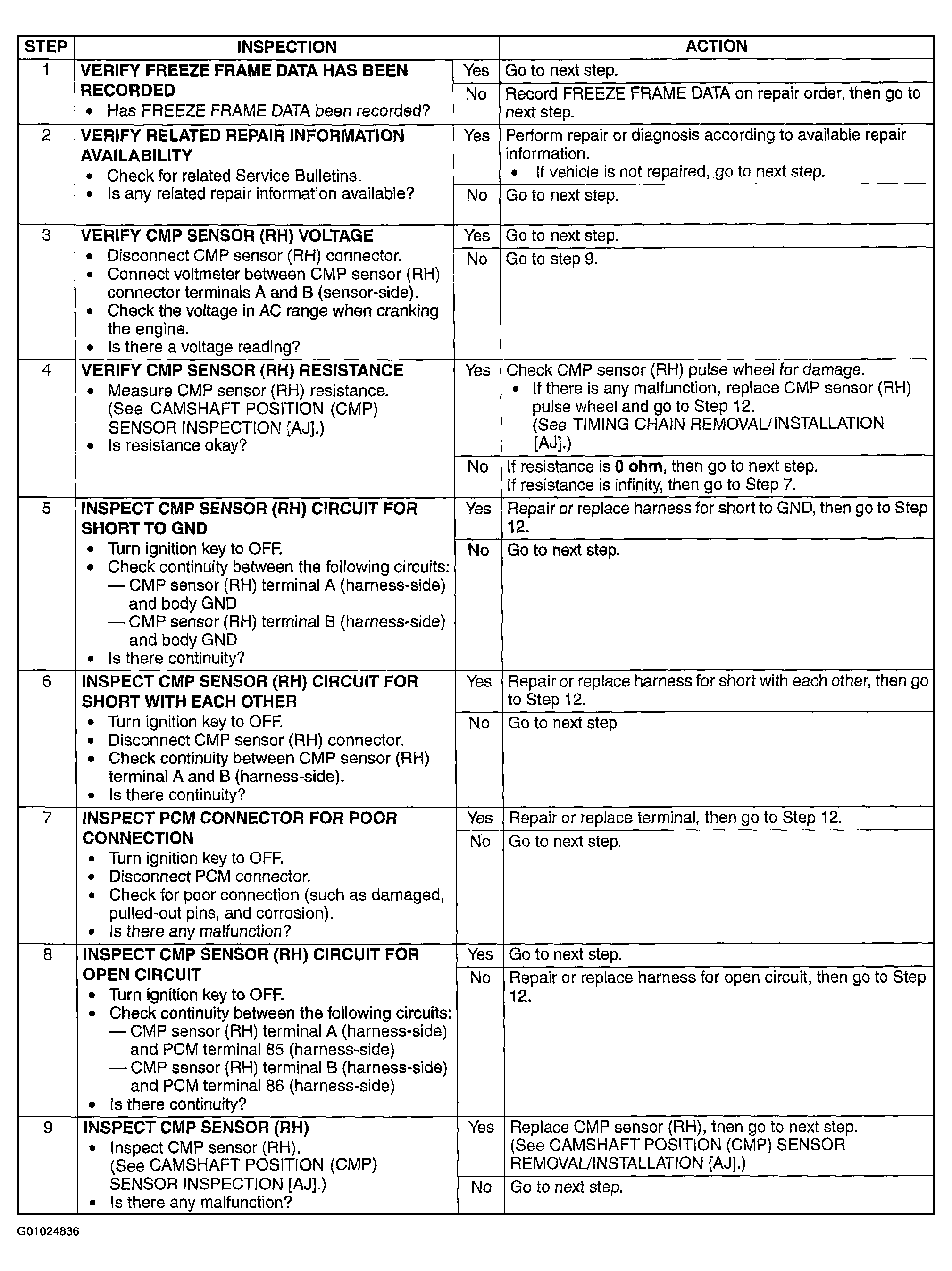

Fig 1: DTC P0340: Diagnostic Procedure Chart (Steps 1-9)
Courtesy of MAZDA MOTORS CORP.

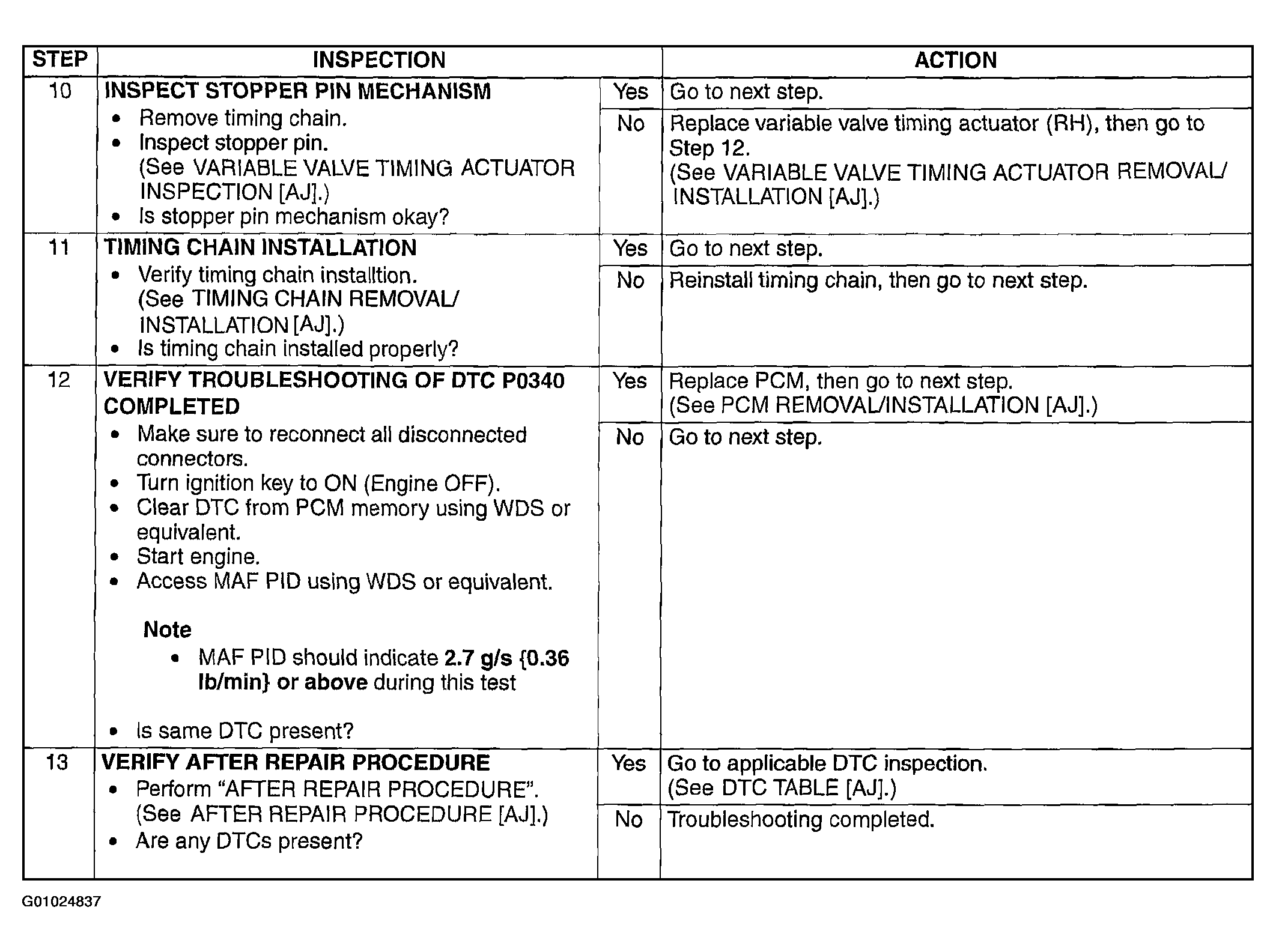

Fig 2: DTC P0340: Diagnostic Procedure Chart (Steps 10-13)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
