On-Board Diagnostic [Engine Control System AJ)
>>
DTC P0455: EVAP Control System Leak Detected (Large Leak)
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

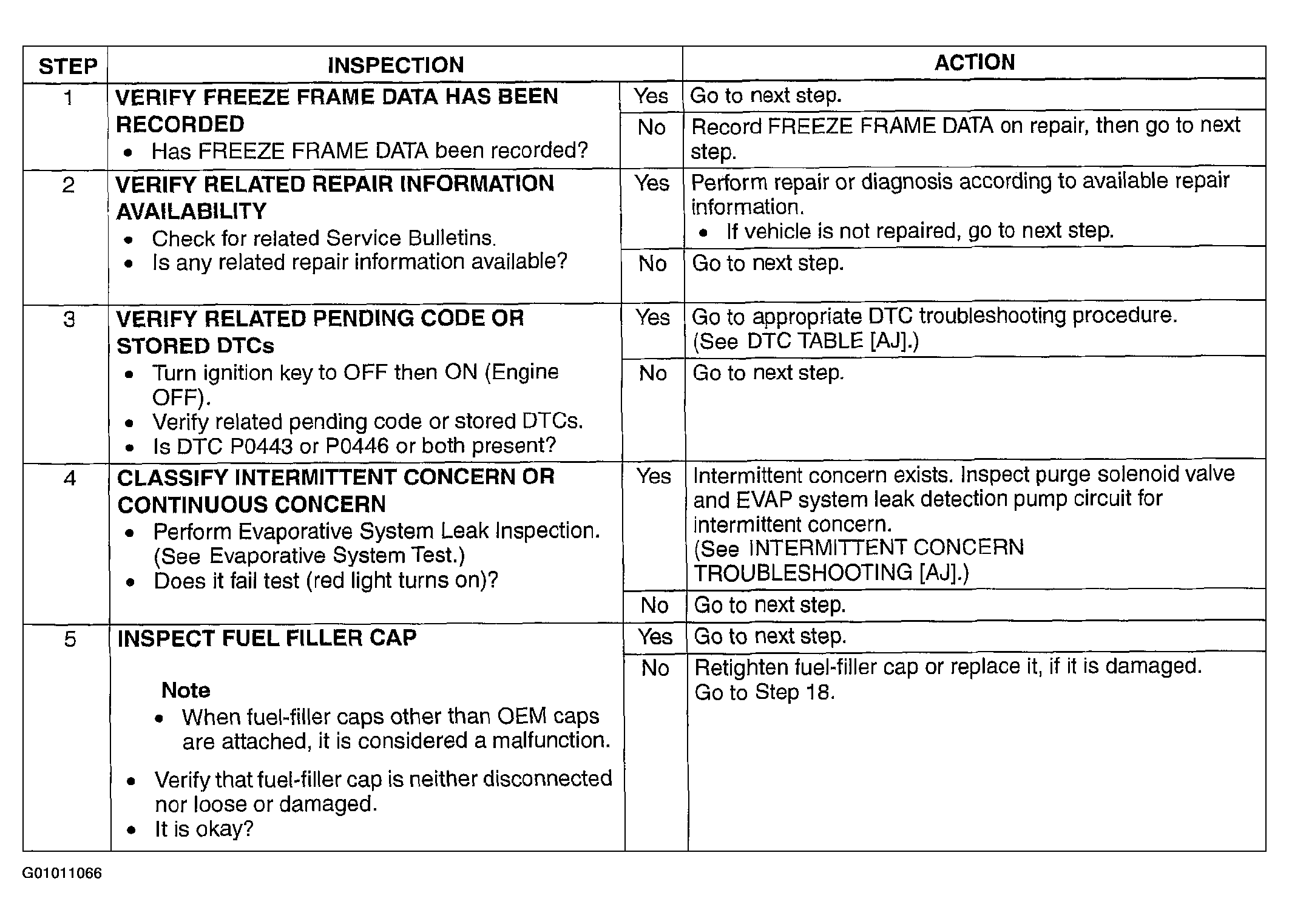

Fig 1: DTC P0455: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

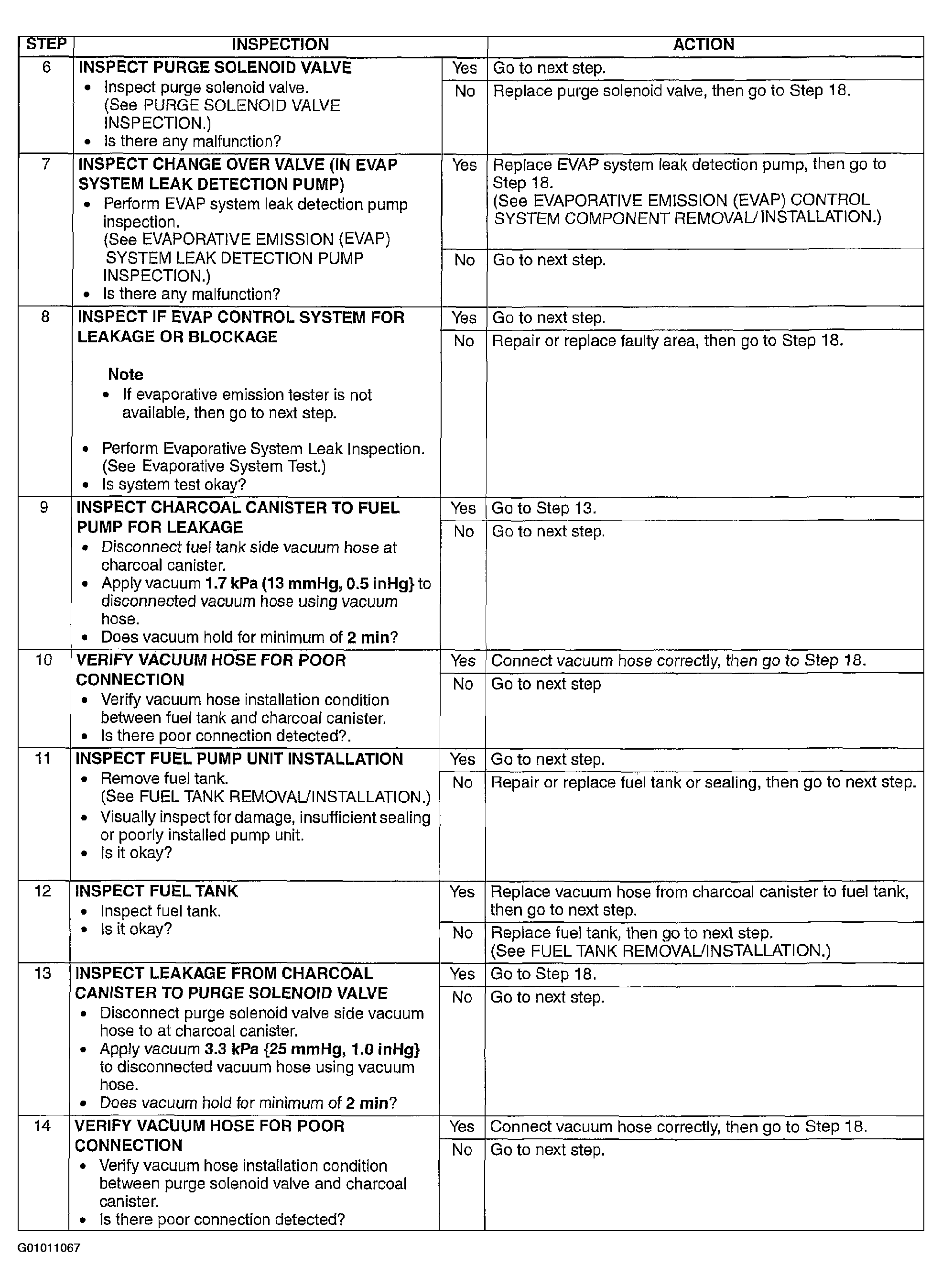

Fig 2: DTC P0455: Diagnostic Procedure Chart (Steps 6-14)
Courtesy of MAZDA MOTORS CORP.

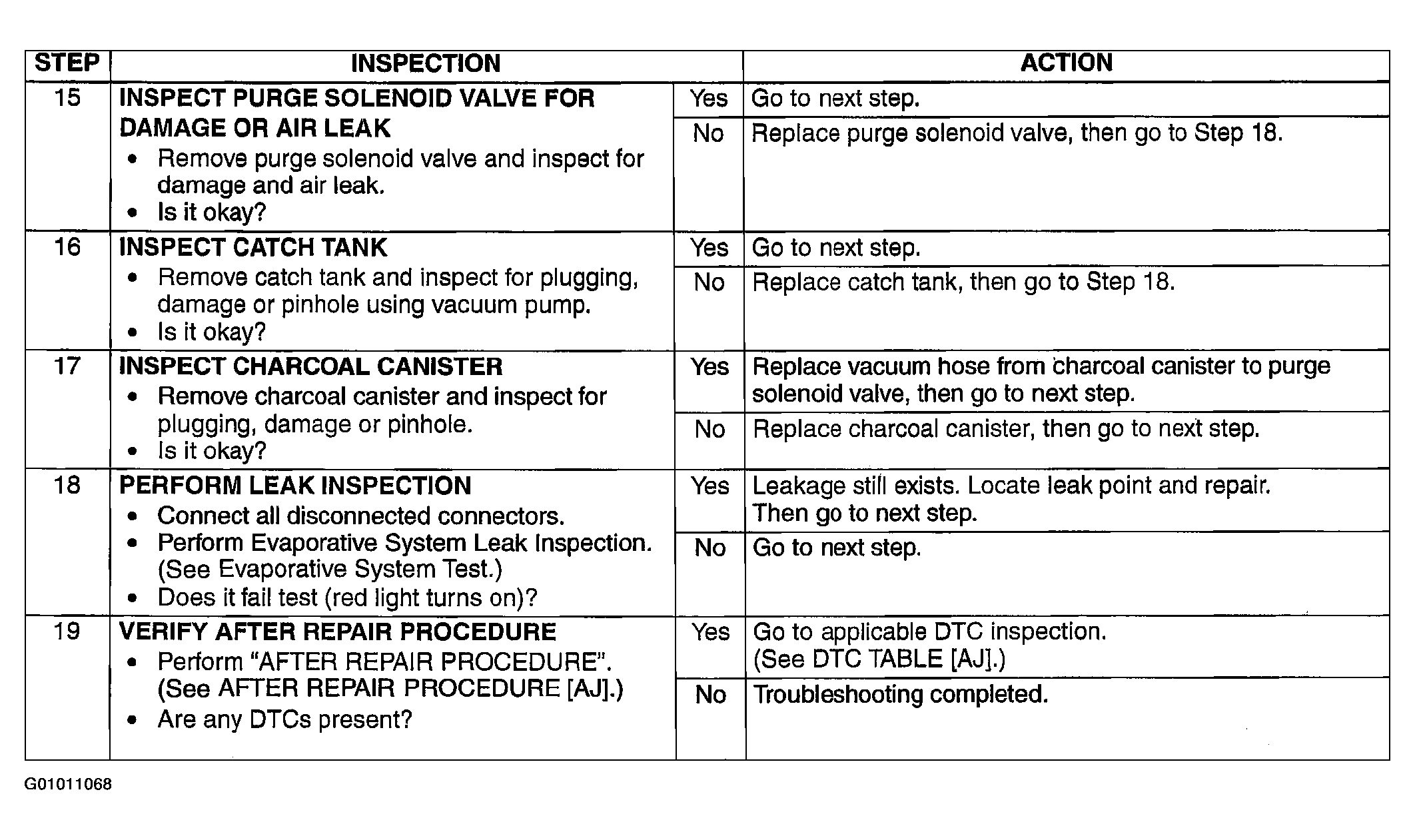

Fig 3: DTC P0455: Diagnostic Procedure Chart (Steps 15-19)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
