Diagnostic Procedure

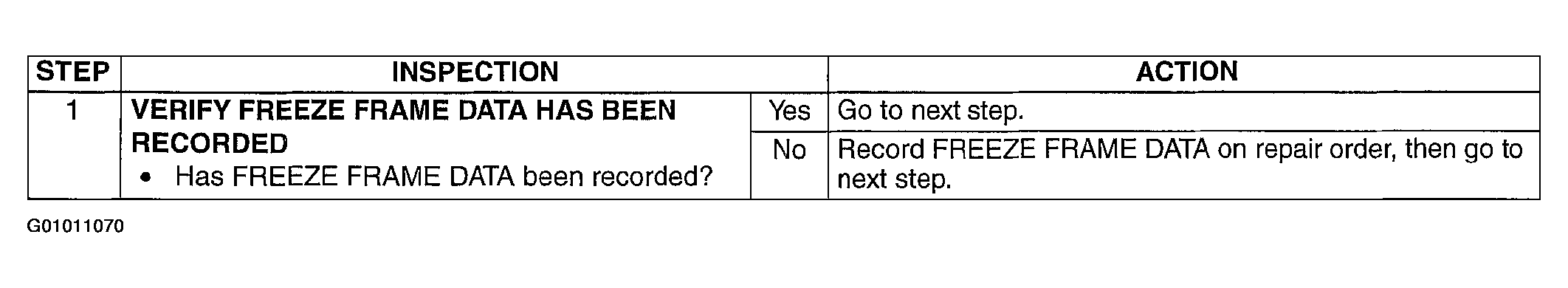

Fig 1: DTC P0456: Diagnostic Procedure Chart (Step 1)
Courtesy of MAZDA MOTORS CORP.

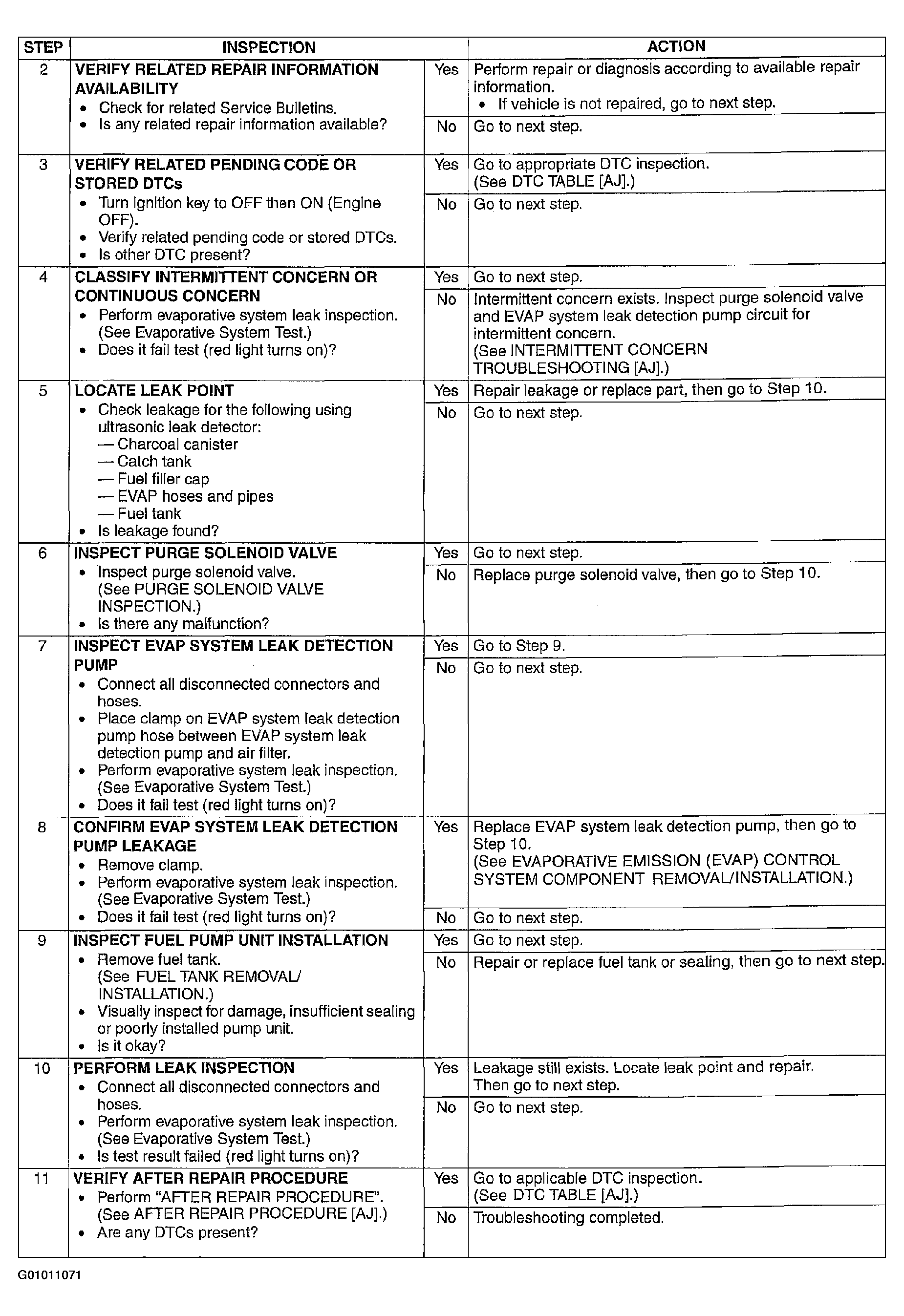

Fig 2: DTC P0456: Diagnostic Procedure Chart (Steps 2-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
