DTC P2100: Throttle Actuator Control Motor Circuit/Open
>>
Diagnostic Procedure
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Procedure

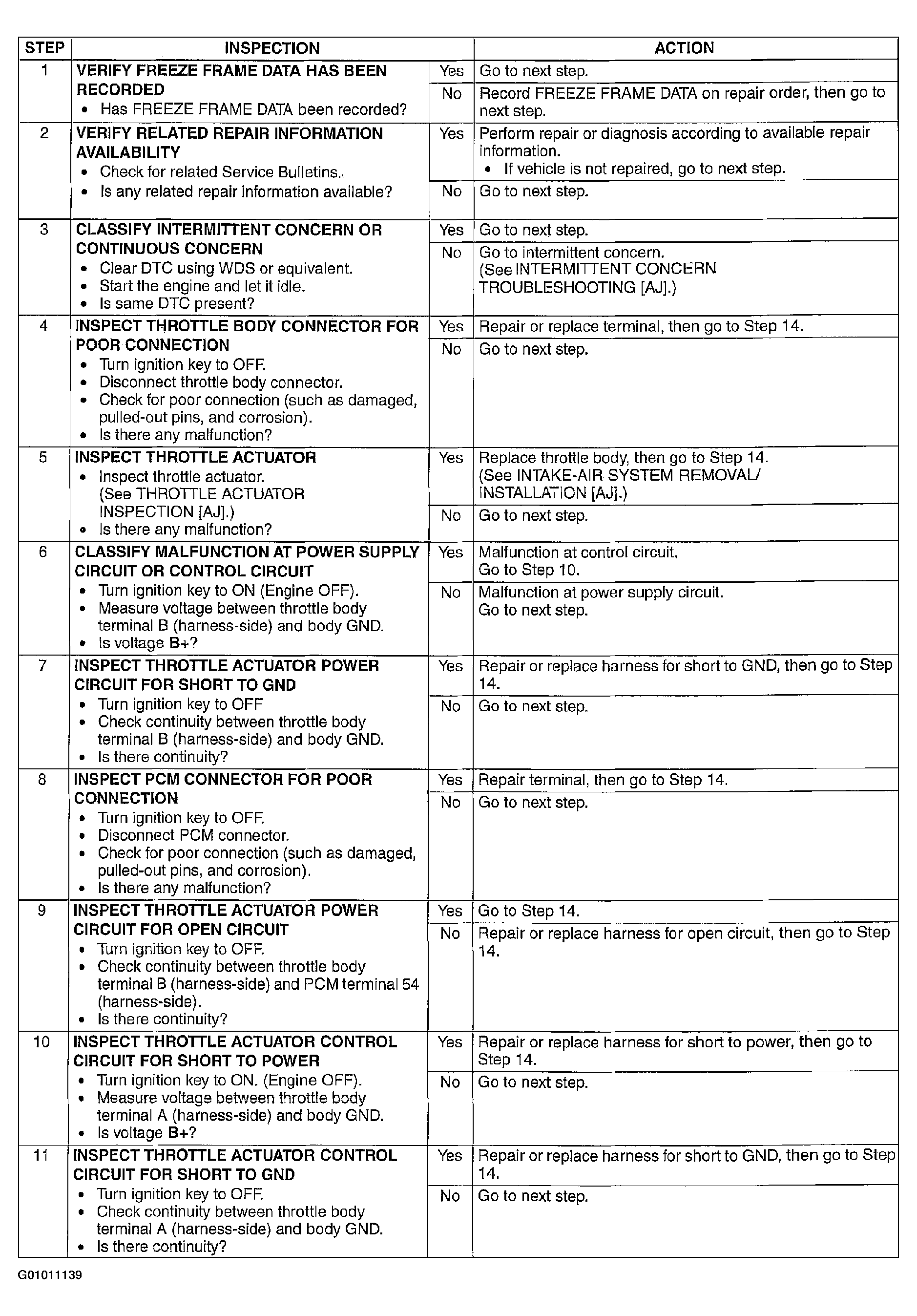

Fig 1: DTC P2100: Diagnostic Procedure Chart (Steps 1-11)
Courtesy of MAZDA MOTORS CORP.

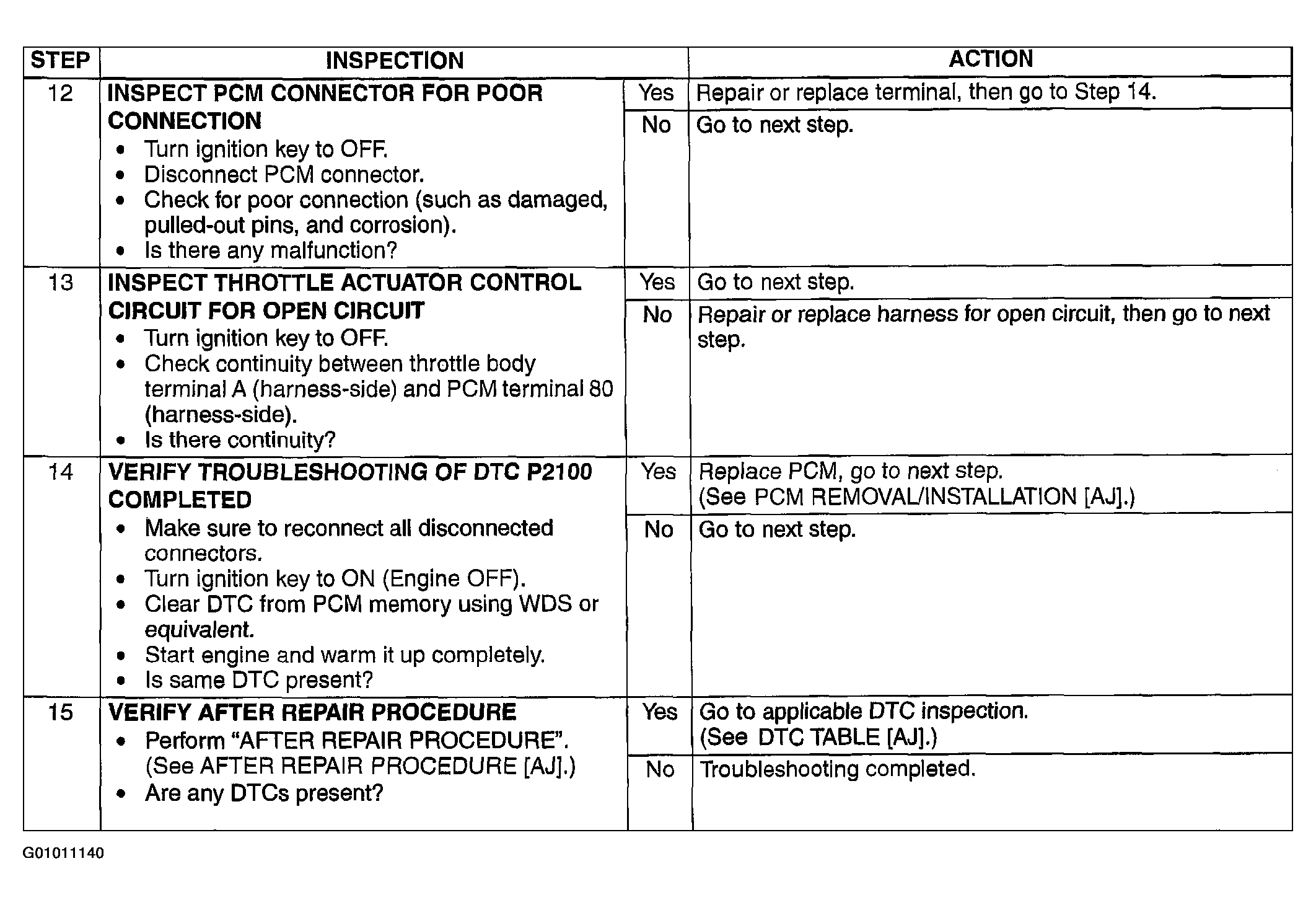

Fig 2: DTC P2100: Diagnostic Procedure Chart (Steps 12-15)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
