DTC P2101: Throttle Actuator Control Motor Circuit Range/Performance
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

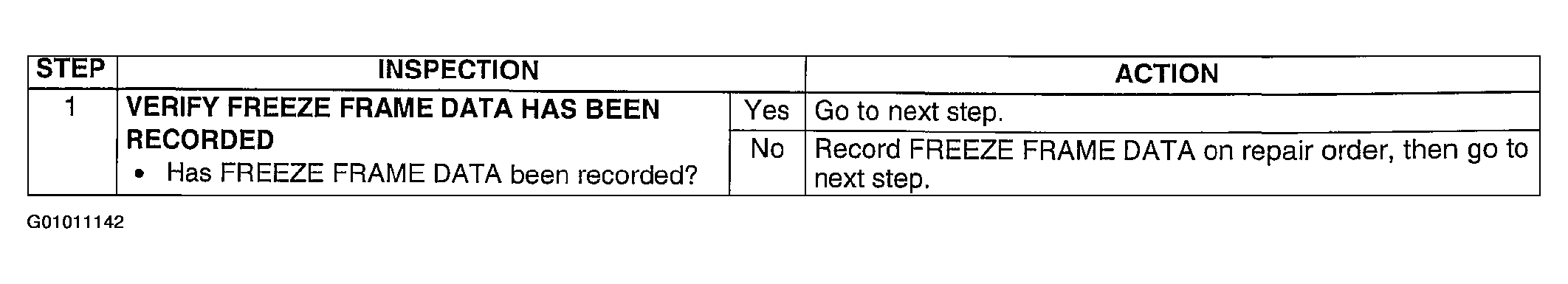

Fig 1: DTC P2101: Diagnostic Procedure Chart (Step 1)
Courtesy of MAZDA MOTORS CORP.

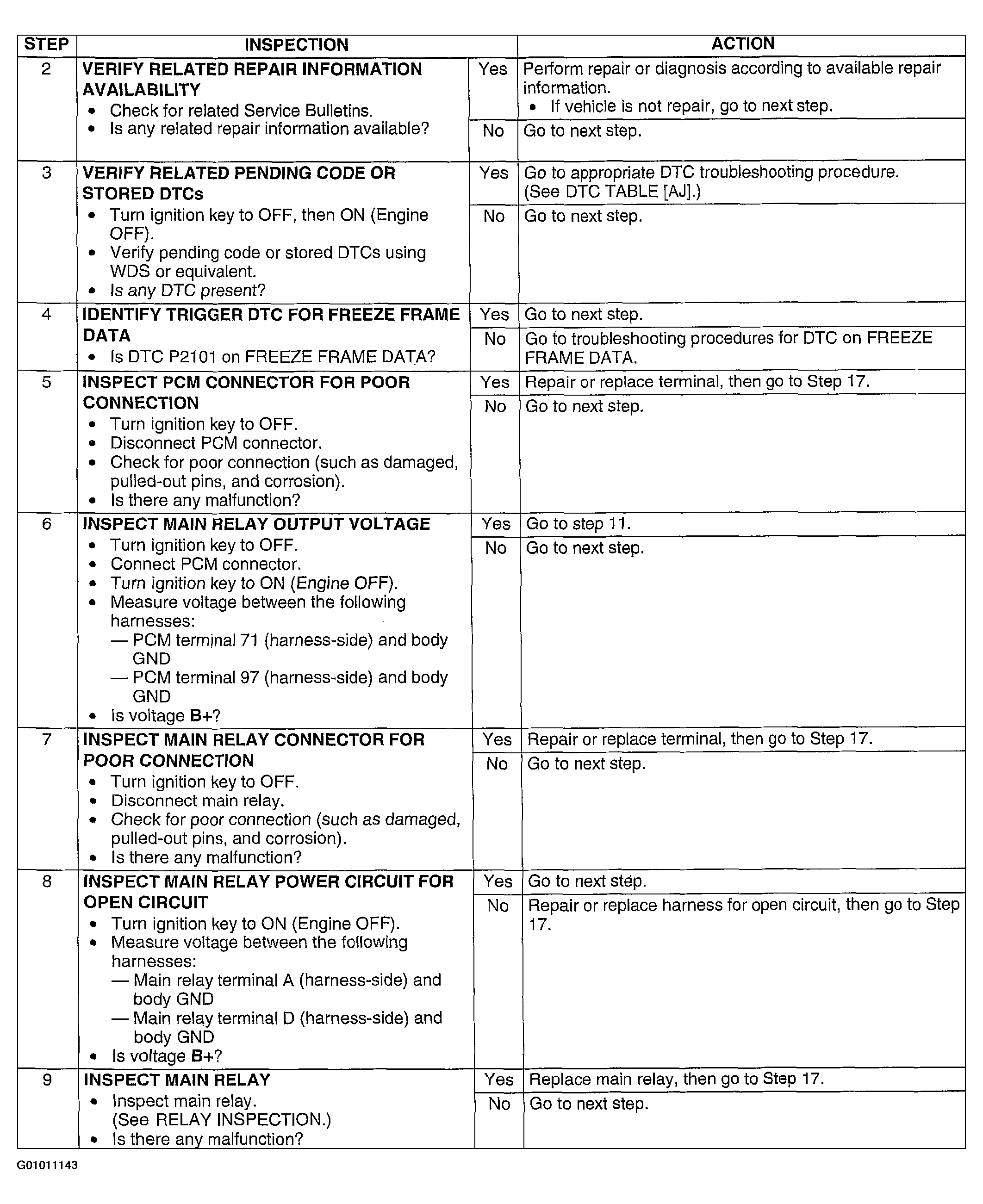

Fig 2: DTC P2101: Diagnostic Procedure Chart (Steps 2-9)
Courtesy of MAZDA MOTORS CORP.

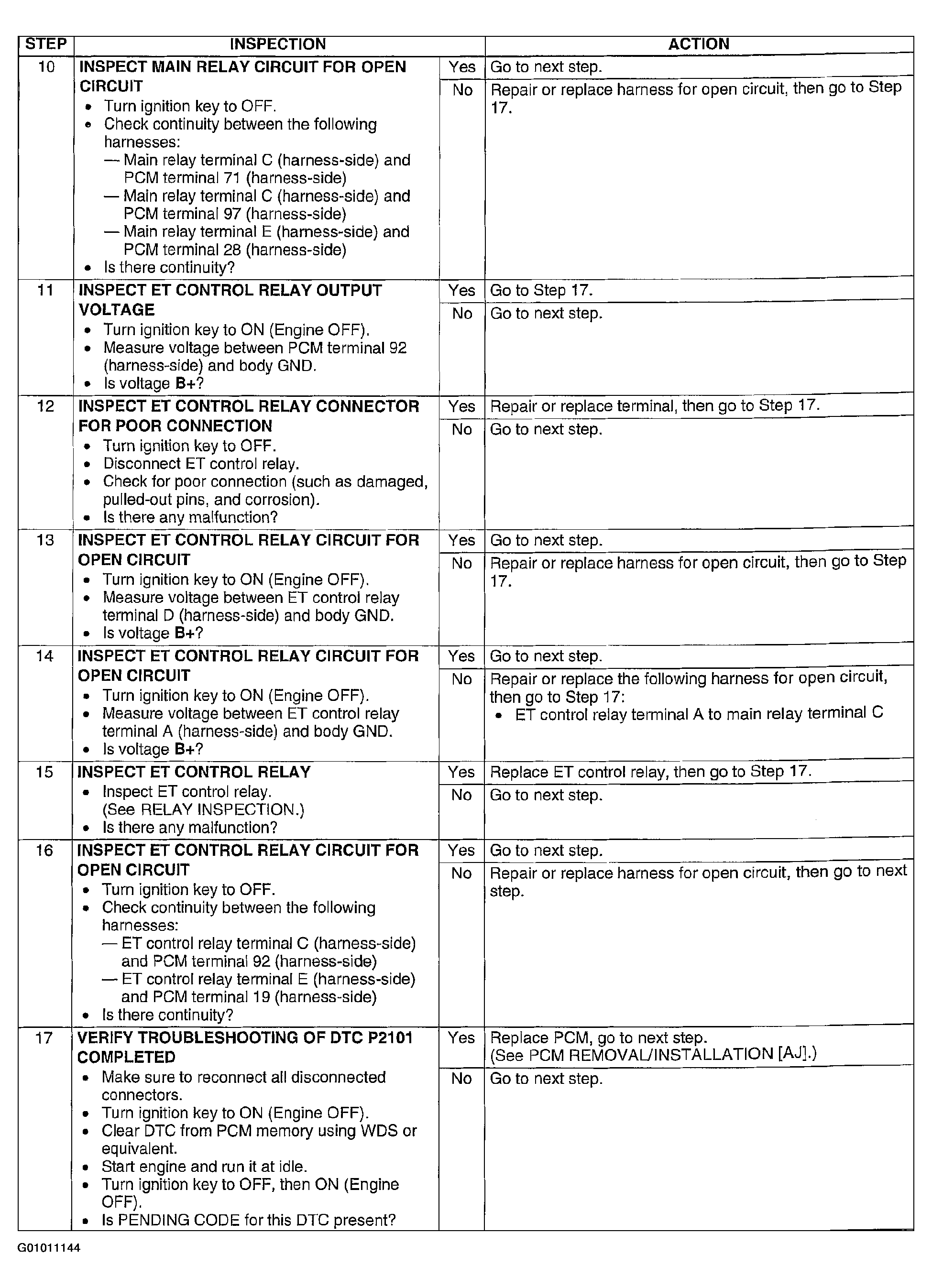

Fig 3: DTC P2101: Diagnostic Procedure Chart (Steps 10-17)
Courtesy of MAZDA MOTORS CORP.

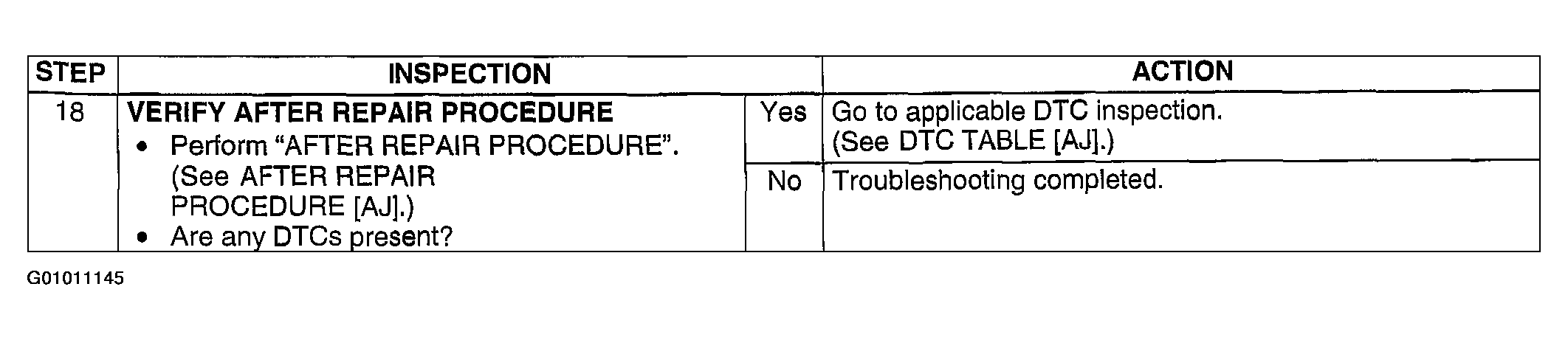

Fig 4: DTC P2101: Diagnostic Procedure Chart (Step 18)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
