Main Fan/Additional Fan Motor Operation Inspection: Specification

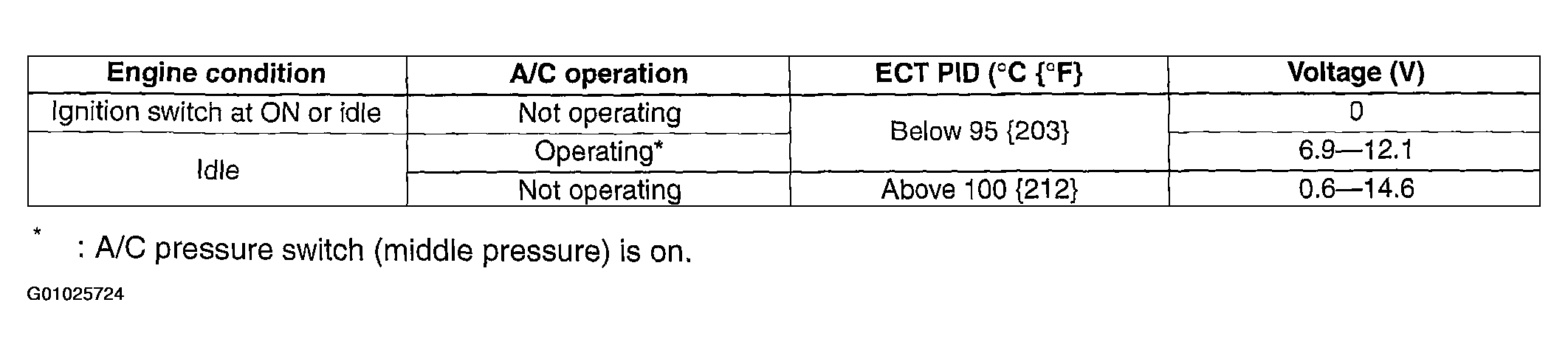

Fig 1: Fan Control Module Voltage Specifications

Courtesy of MAZDA MOTORS CORP.

• If not as specified, inspect the following:
  • CKP sensor
  • ECT sensor
  • APP sensor
  • TP sensor
  • A/C pressure switch (middle pressure)
• If all items are okay, replace fan control module.
