Spark Test

  1. Disconnect the fuel pump relay.
  2. Verify that each high-tension lead and connector is connected properly.
  3. Inspect the ignition system in the following procedure:
WARNING:
  • High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the following spark test.

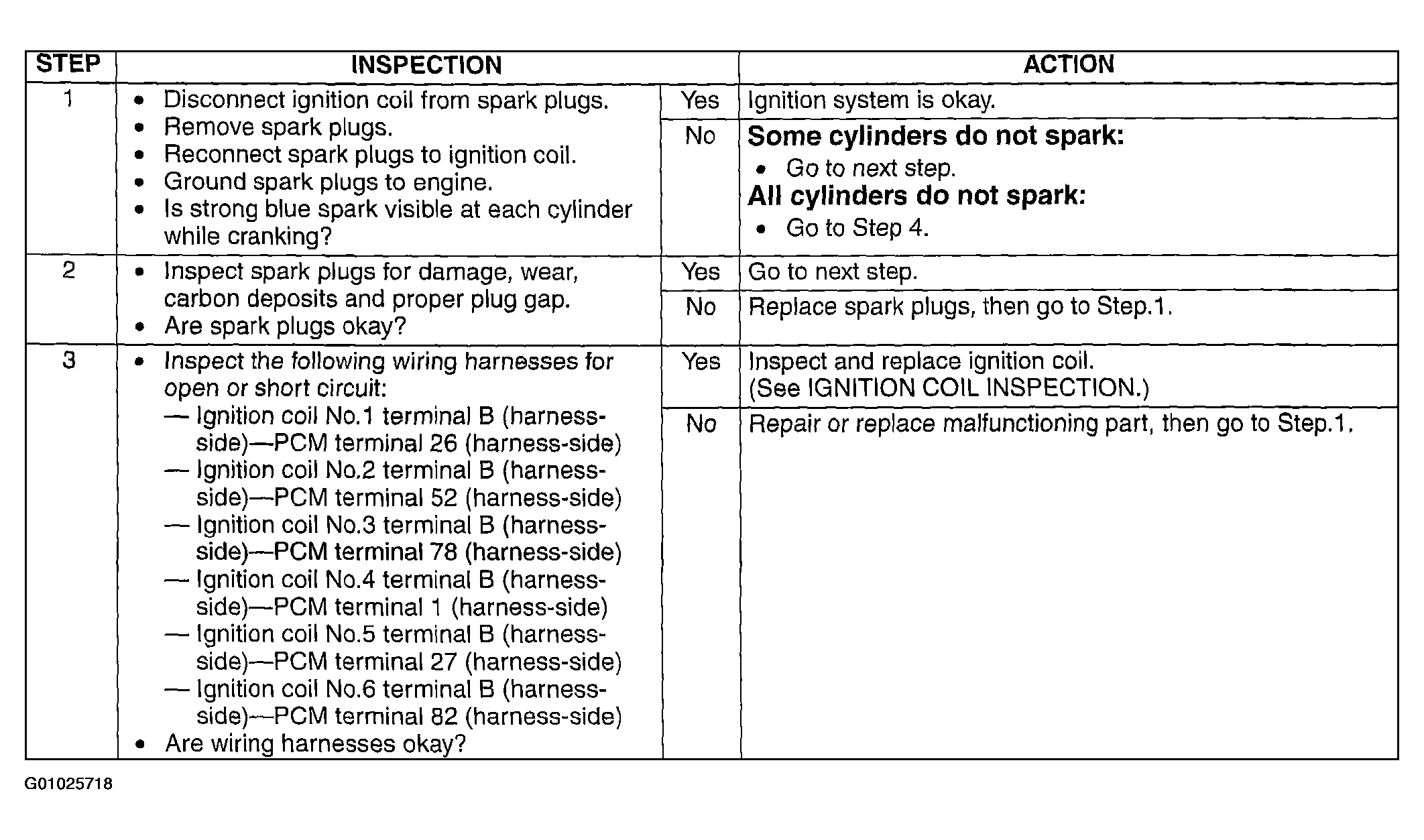

Fig 1: Ignition System Troubleshooting (Steps 1-3)
G01025718Courtesy of MAZDA MOTORS CORP.

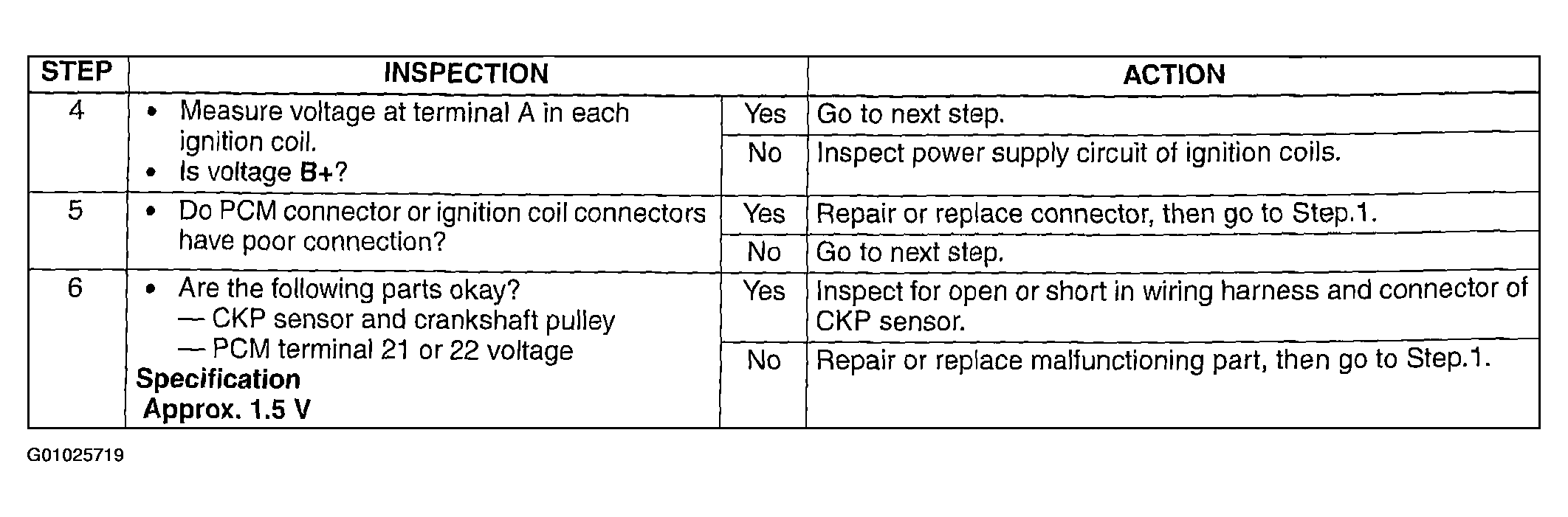

Fig 2: Ignition System Troubleshooting (Steps 4-6)
G01025719Courtesy of MAZDA MOTORS CORP.
