Resistance Inspection: Specification

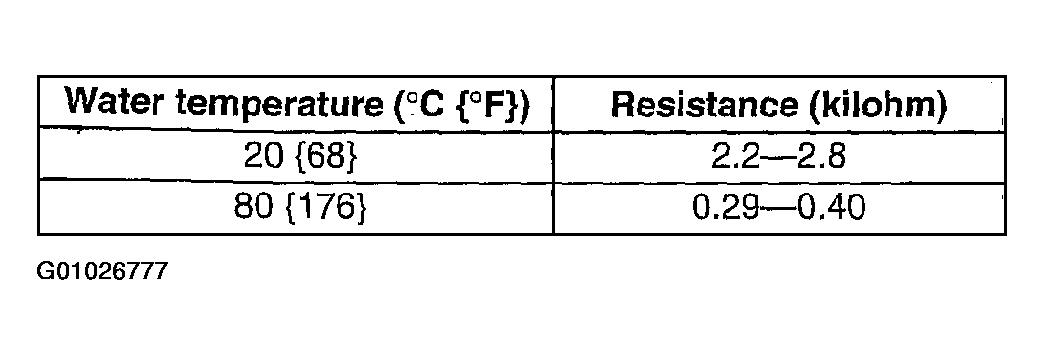

Fig 1: ECT Sensor Temperature/Resistance Table
G01026777Courtesy of MAZDA MOTORS CORP.

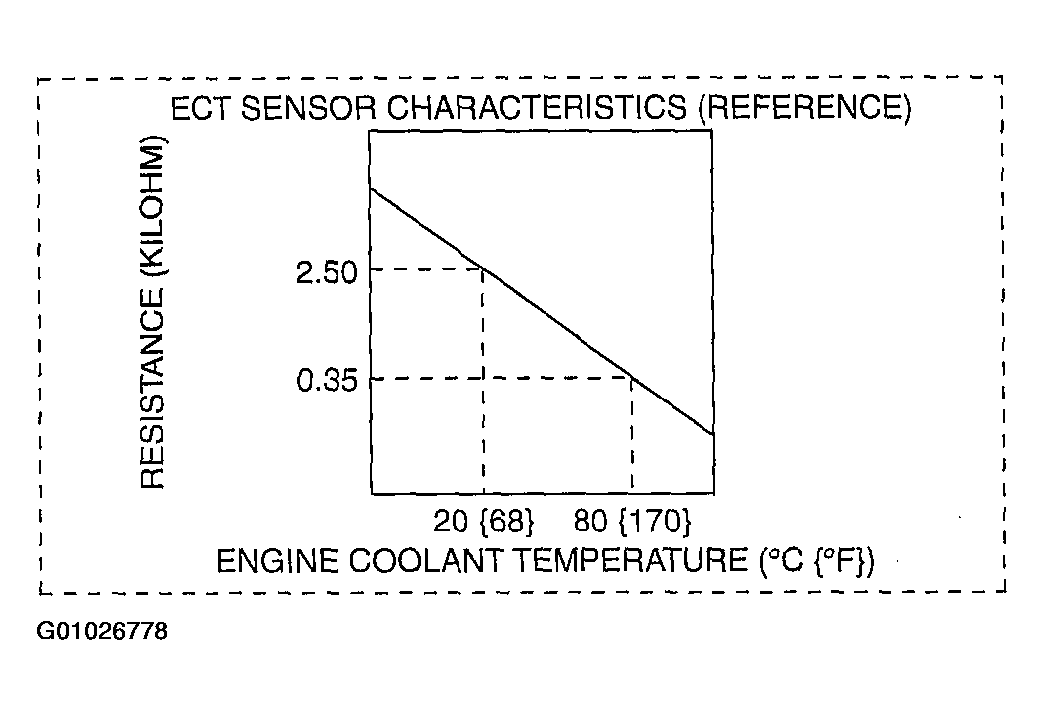

Fig 2: ECT Sensor Temperature Vs. Resistance Graph
G01026778Courtesy of MAZDA MOTORS CORP.
