Exhaust System Components - 2.3L: Notes

The exhaust system consists of the components shown in the following illustrations.

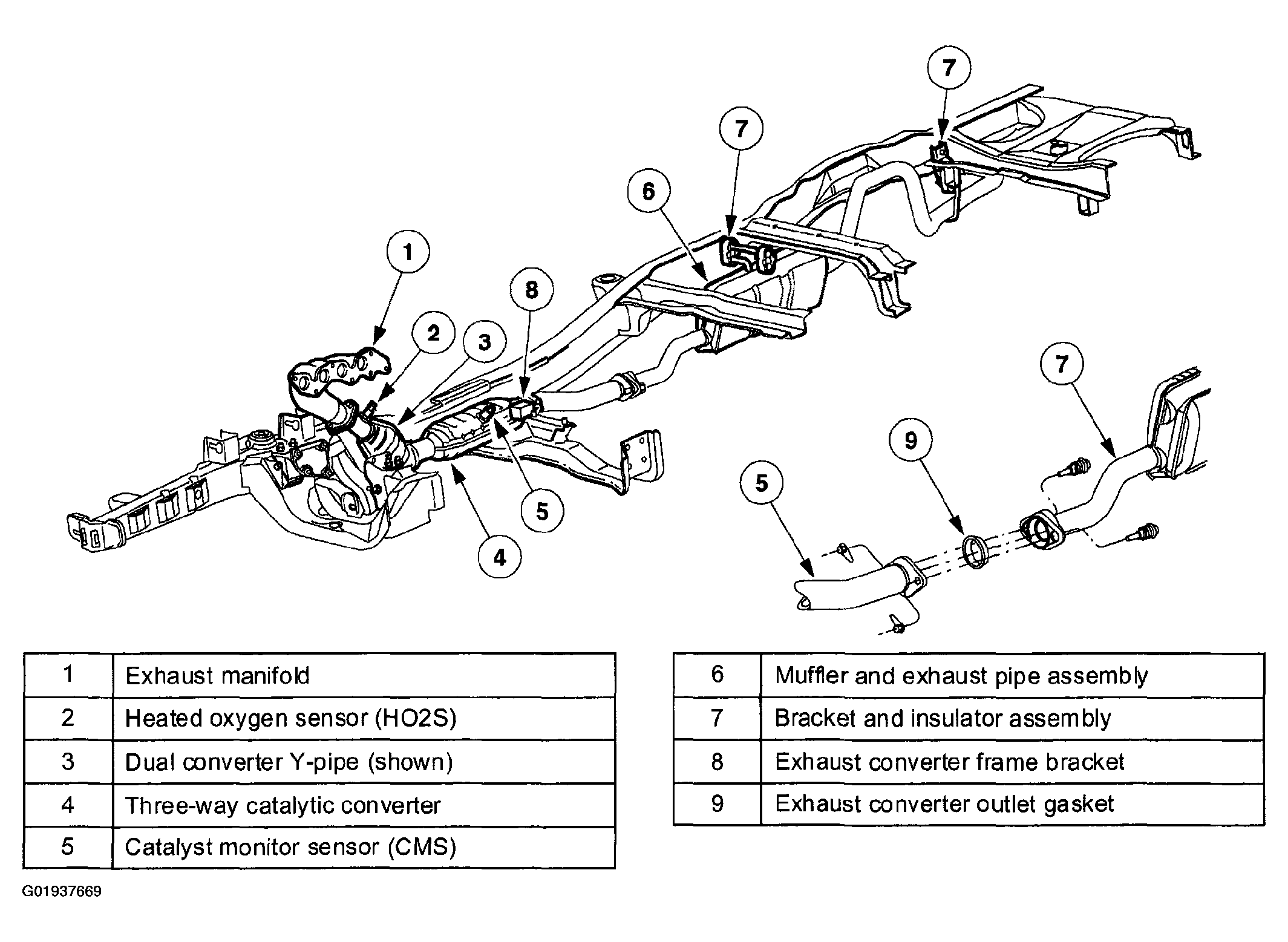

Fig 1: Exhaust System Components - 2.3L
G01937669Courtesy of MAZDA MOTORS CORP.
