Remote Keyless Entry Transmitter Out Of Synchronization

NOTE:

• All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.

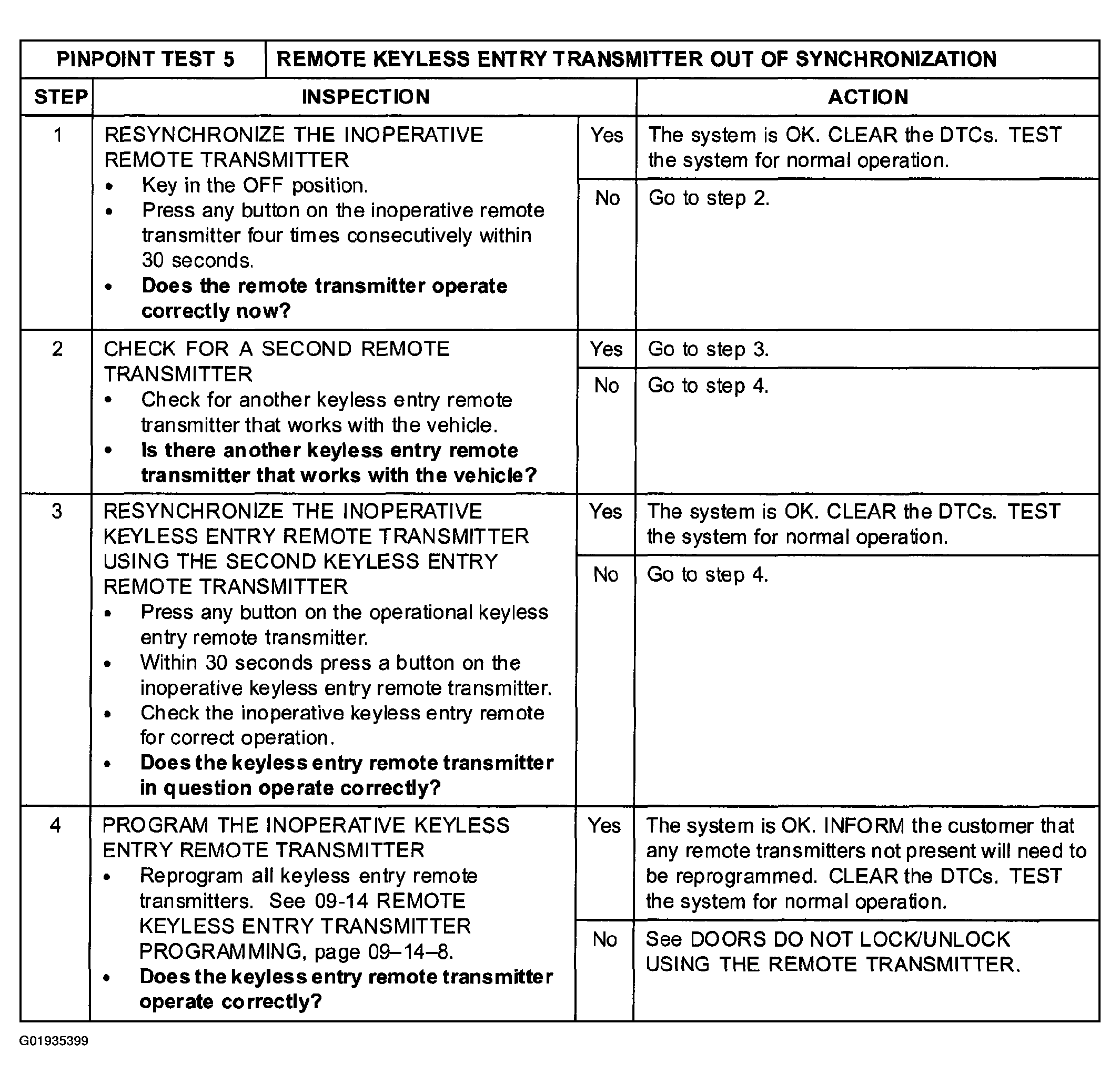

Fig 1: Pinpoint Test 5: For Remote Keyless Entry Transmitter Out Of Synchronization Inspection Table (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.
