Symptom Troubleshooting Chart-Security And Locks

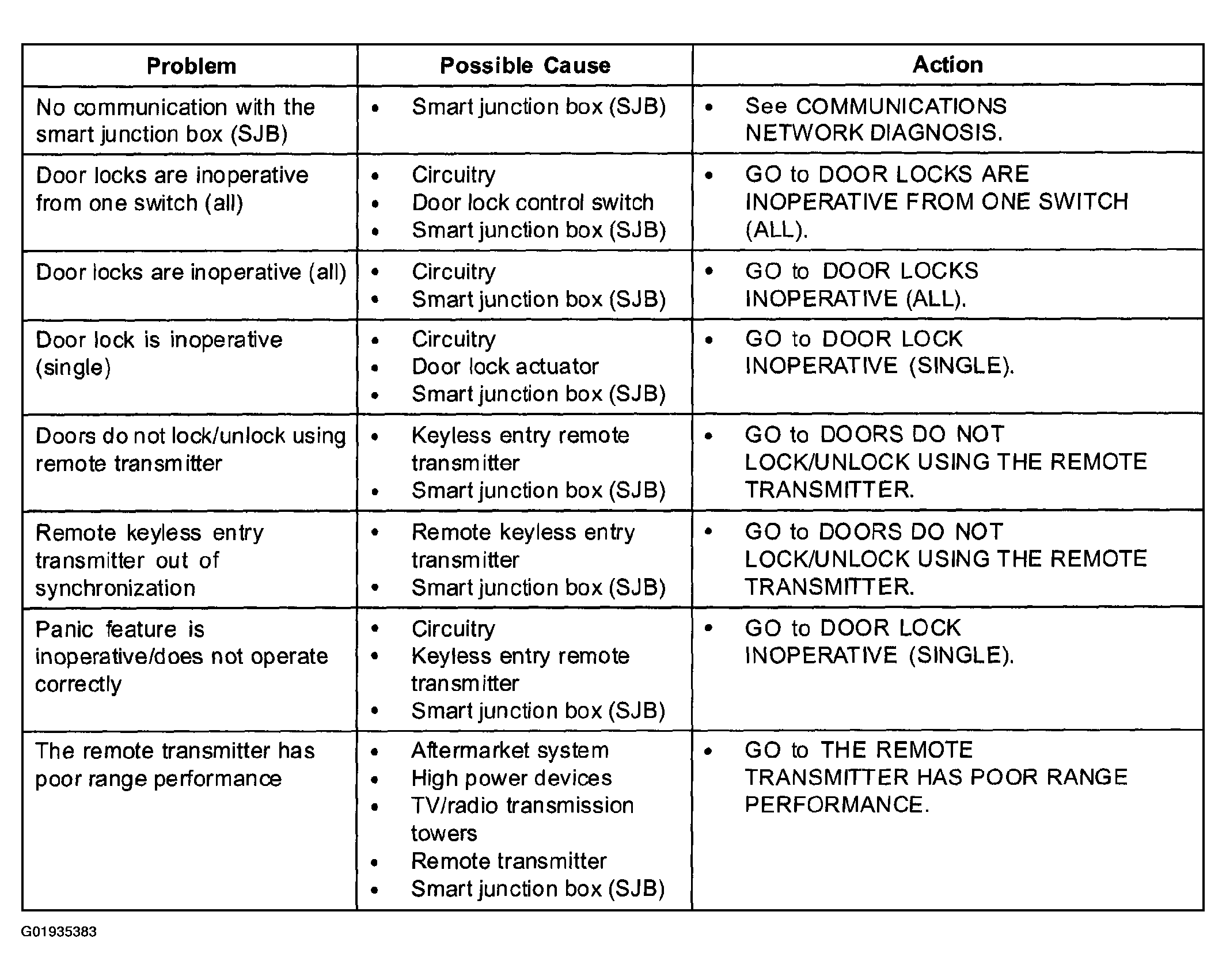

Fig 1: Security And Locks Symptom Troubleshooting Chart (1 of 2)

Courtesy of MAZDA MOTORS CORP.

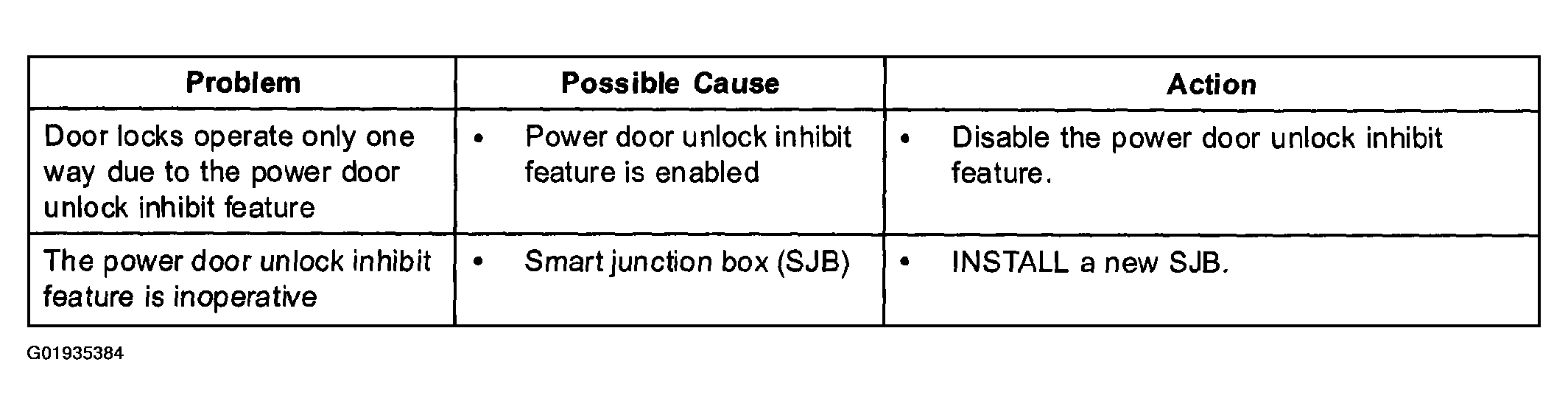

Fig 2: Security And Locks Symptom Troubleshooting Chart (2 of 2)

Courtesy of MAZDA MOTORS CORP.
