No Module/Network Communication - ISO 9141 Network

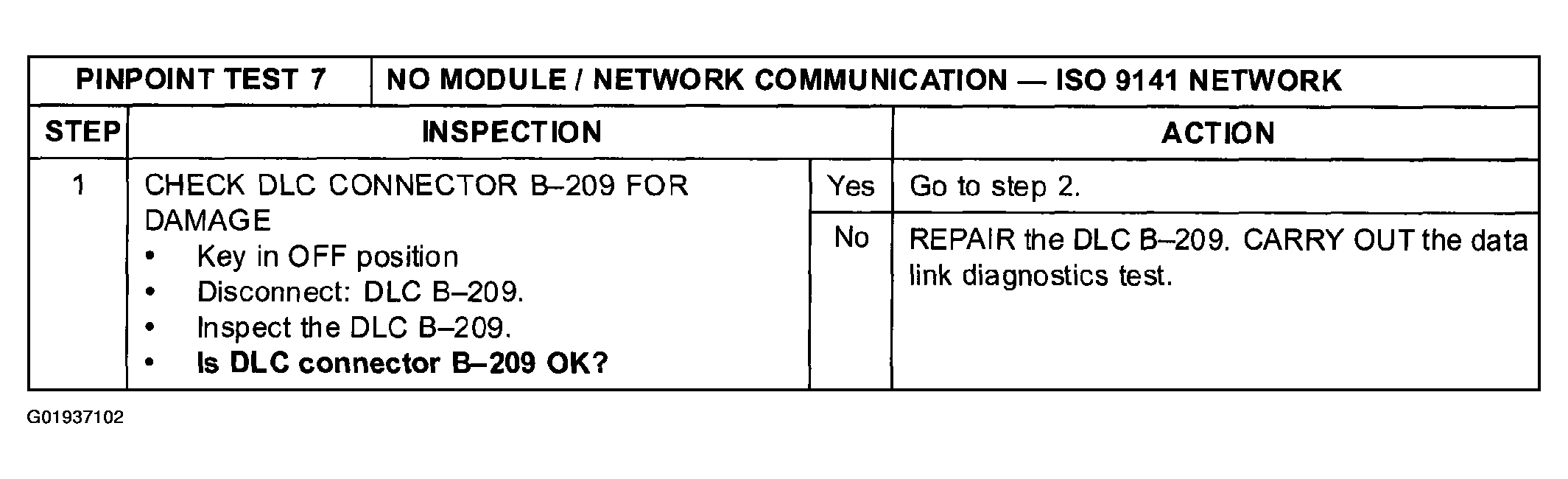

Fig 1: Pinpoint Test 7: No Module/Network Communication - ISO 9141 Network Inspection Table (Step 1)
G01937102Courtesy of MAZDA MOTORS CORP.
Fig 2: Pinpoint Test 7: No Module/Network Communication - ISO 9141 Network Inspection Table (Steps 2-7)
G01937103Courtesy of MAZDA MOTORS CORP.

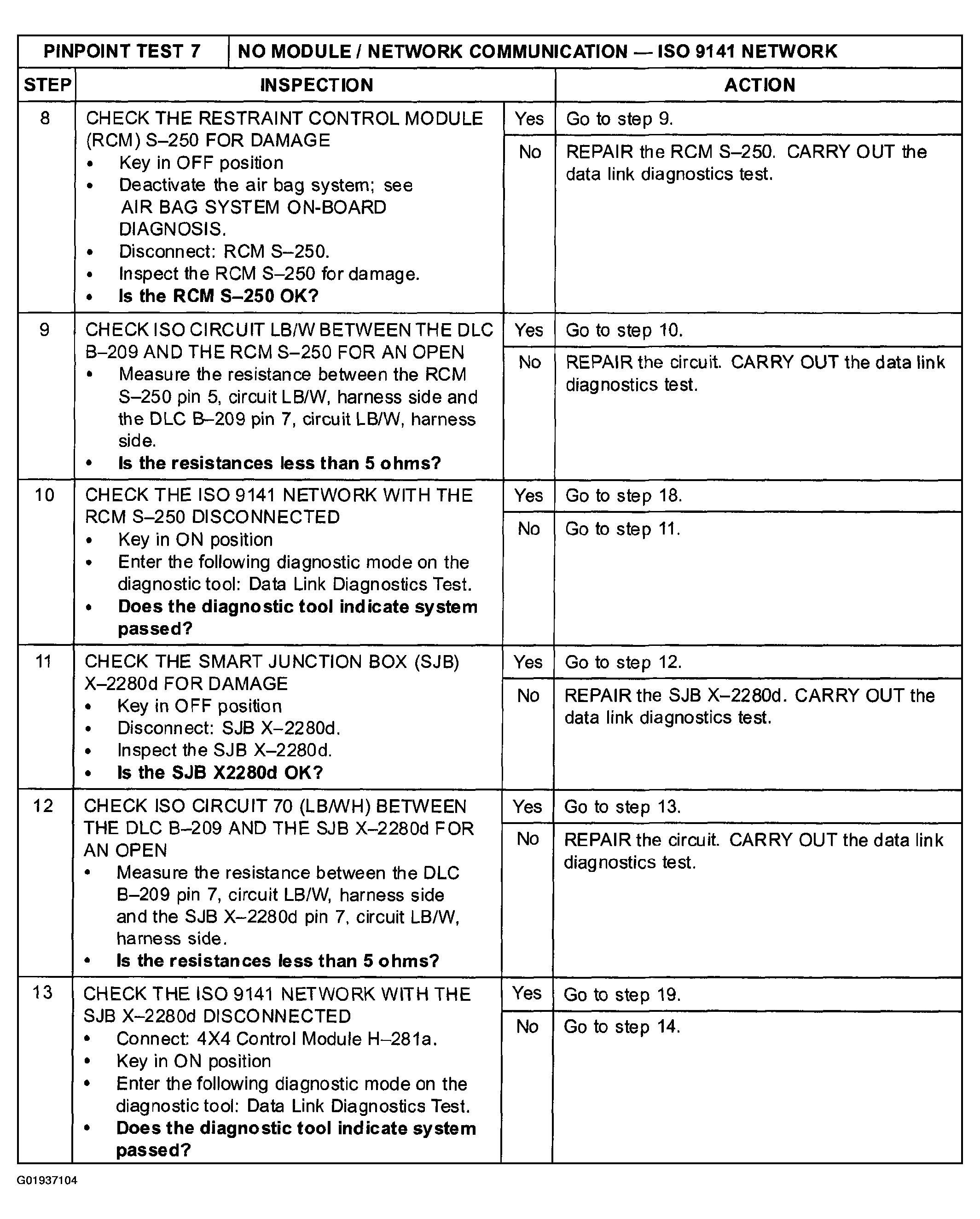

Fig 3: Pinpoint Test 7: No Module/Network Communication - ISO 9141 Network Inspection Table (Steps 8-13)
G01937104Courtesy of MAZDA MOTORS CORP.

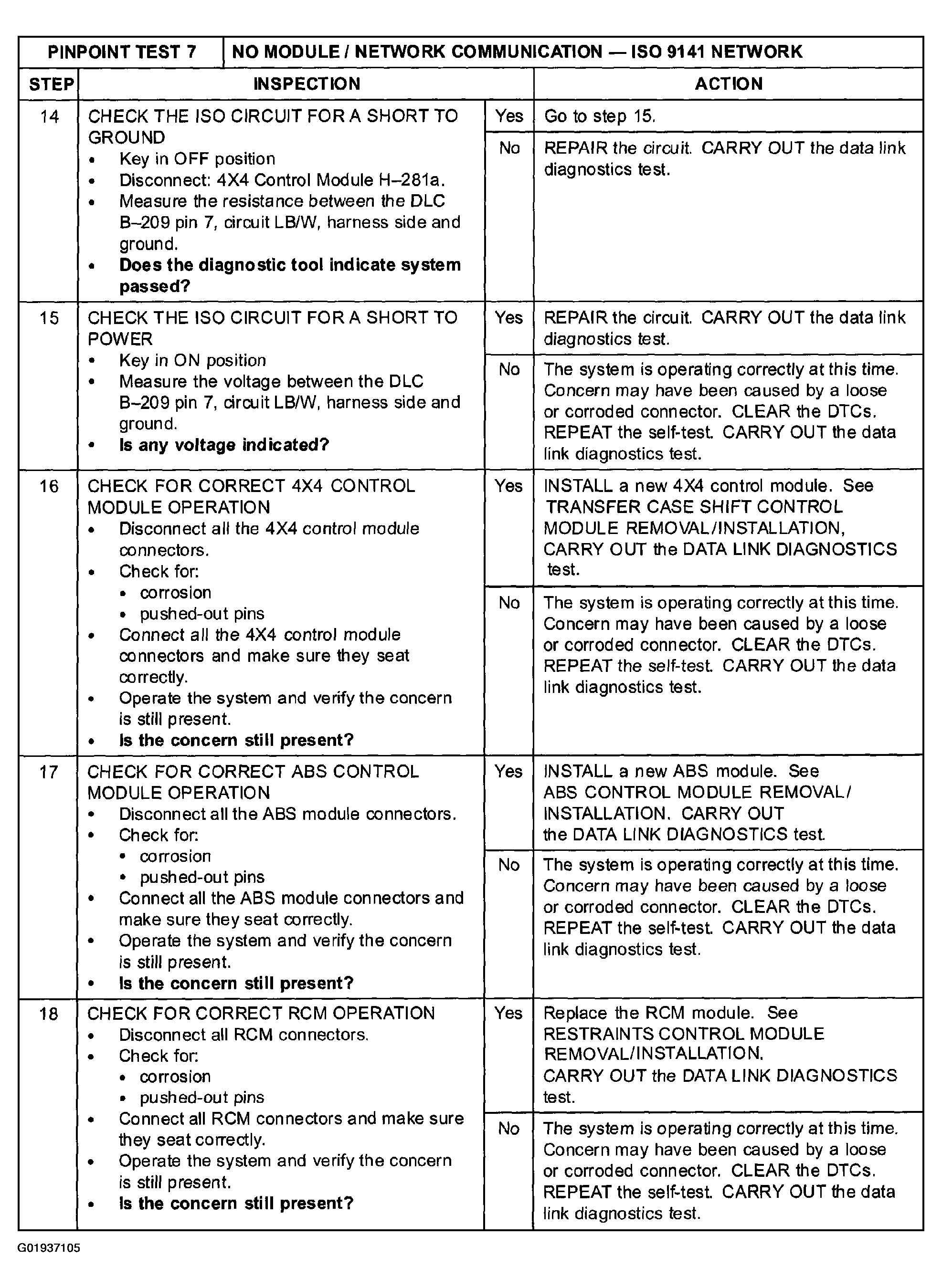

Fig 4: Pinpoint Test 7: No Module/Network Communication - ISO 9141 Network Inspection Table (Steps 14-18)
G01937105Courtesy of MAZDA MOTORS CORP.

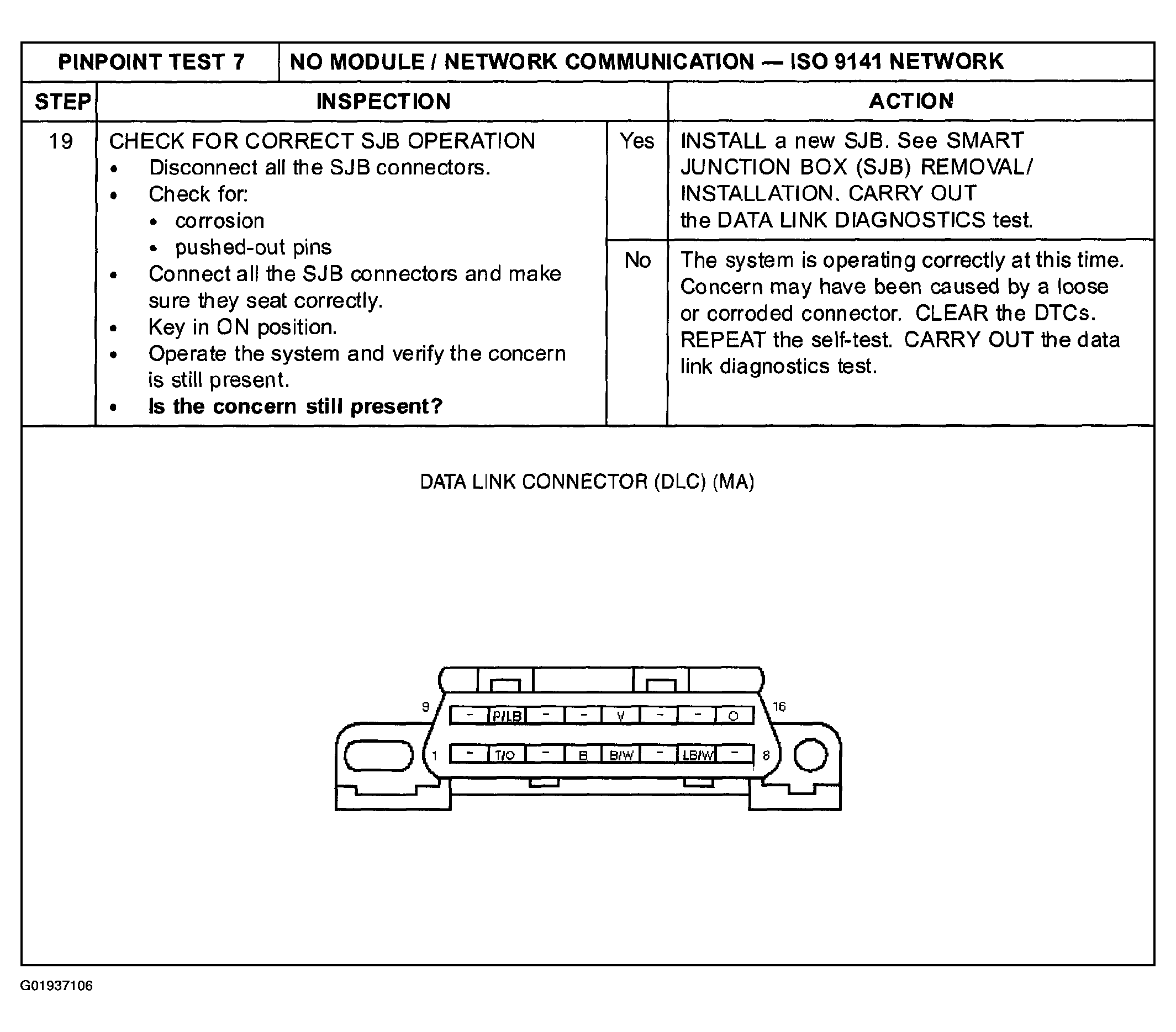

Fig 5: Pinpoint Test 7: No Module/Network Communication - ISO 9141 Network Inspection Table (Step 19 & Data Link Connector Terminal Wire Color)
G01937106Courtesy of MAZDA MOTORS CORP.

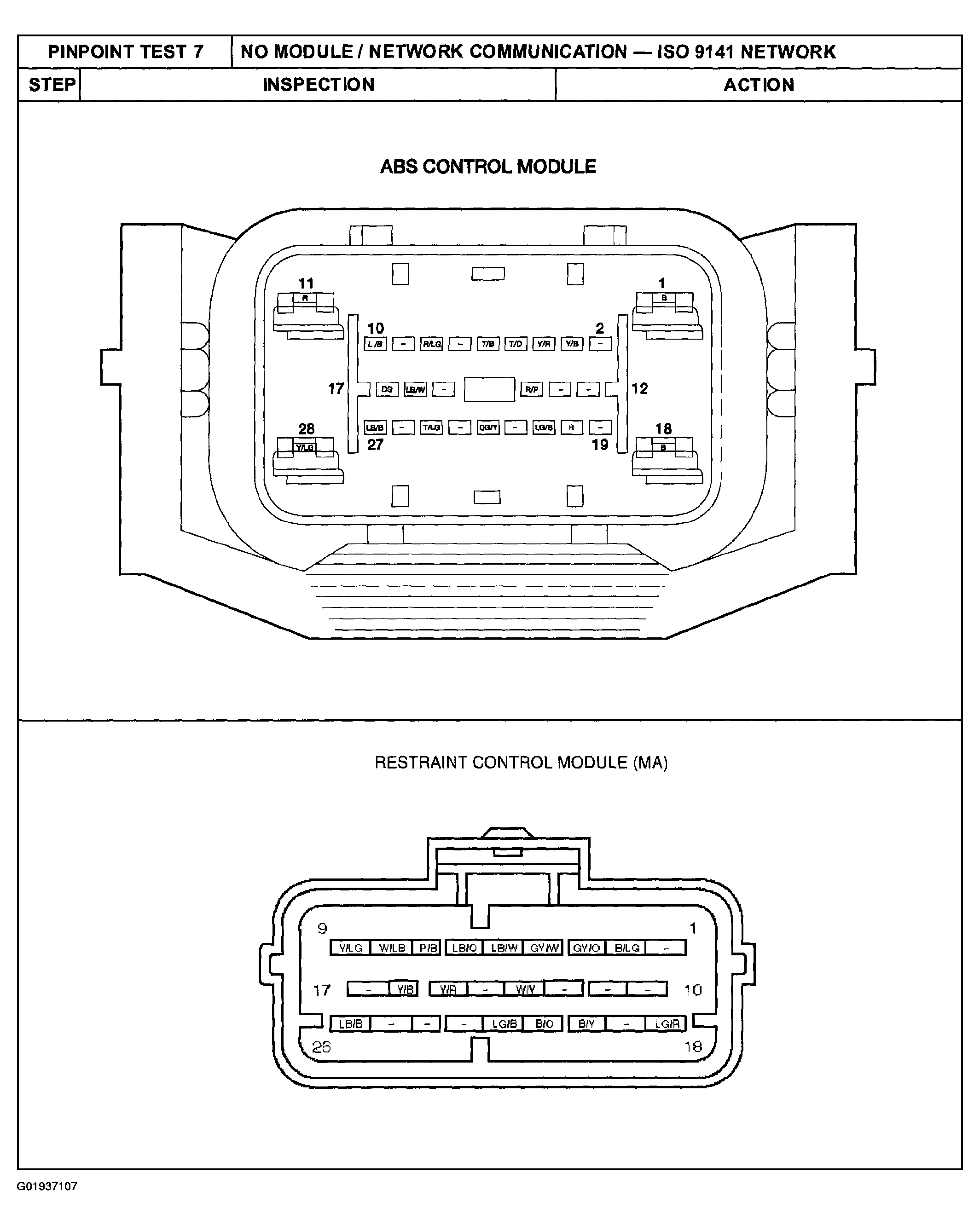

Fig 6: Identifying ABS And Restraint (MA) Control Module Connector Terminal Wire Color
G01937107Courtesy of MAZDA MOTORS CORP.

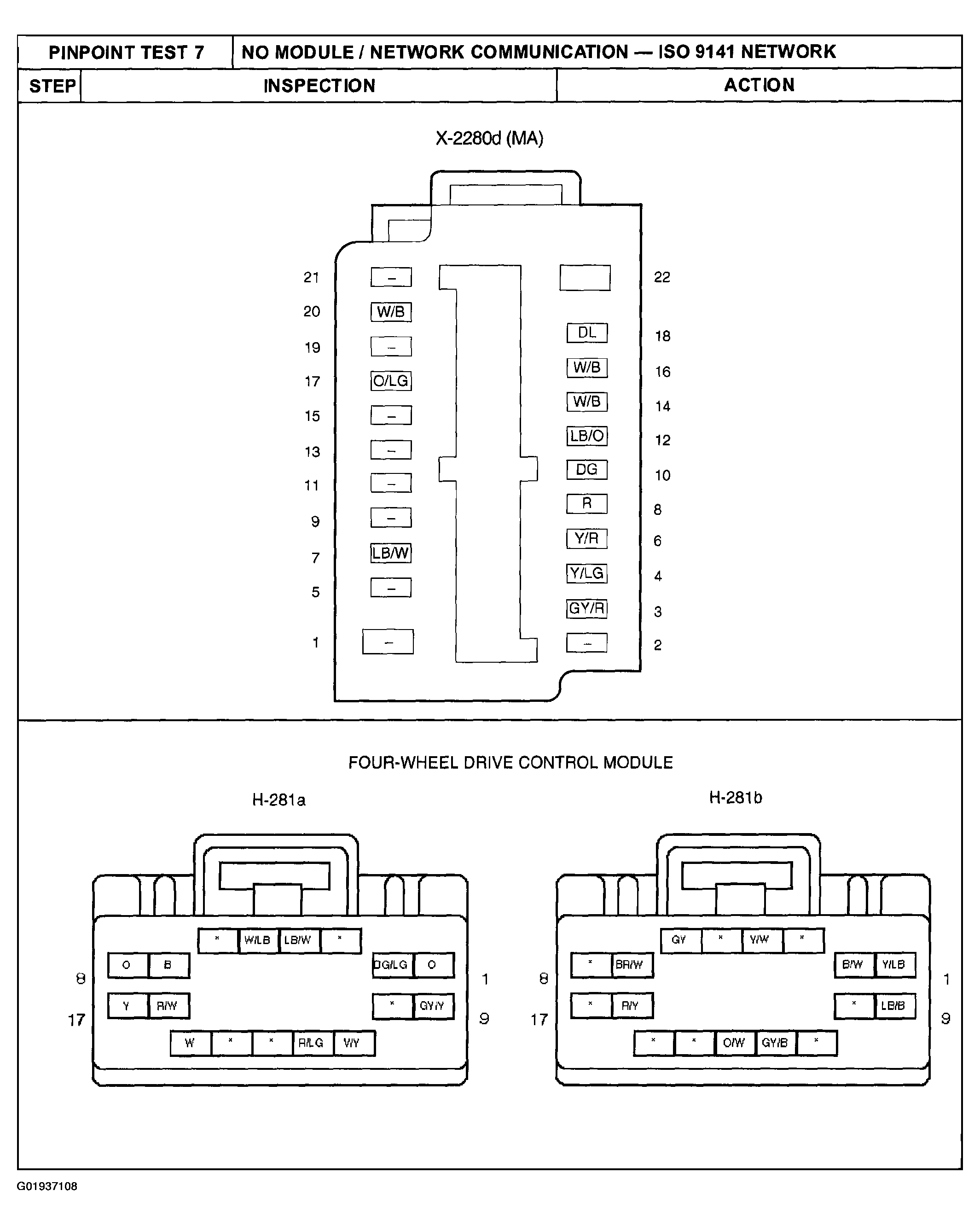

Fig 7: Identifying X-2280d (MA) And Four Wheel Drive Control Module Connector Terminal Wire Color
G01937108Courtesy of MAZDA MOTORS CORP.
