Starting System Pinpoint Test 1: Engine Does Not Crank

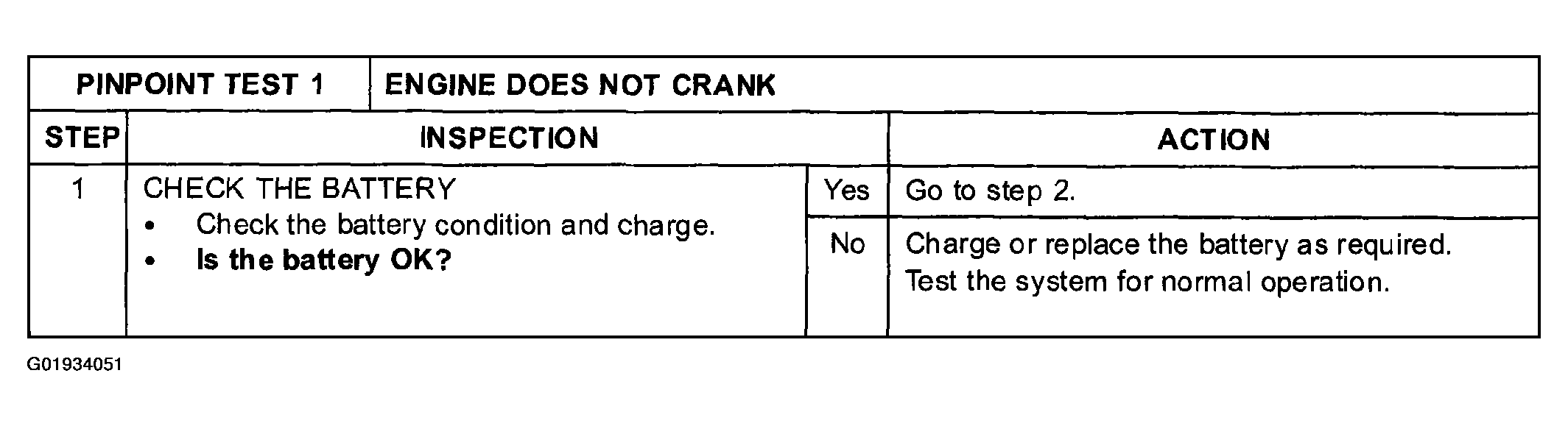

Fig 1: Starting System Pinpoint Test 1: Engine Does Not Crank (Step 1)

Courtesy of MAZDA MOTORS CORP.

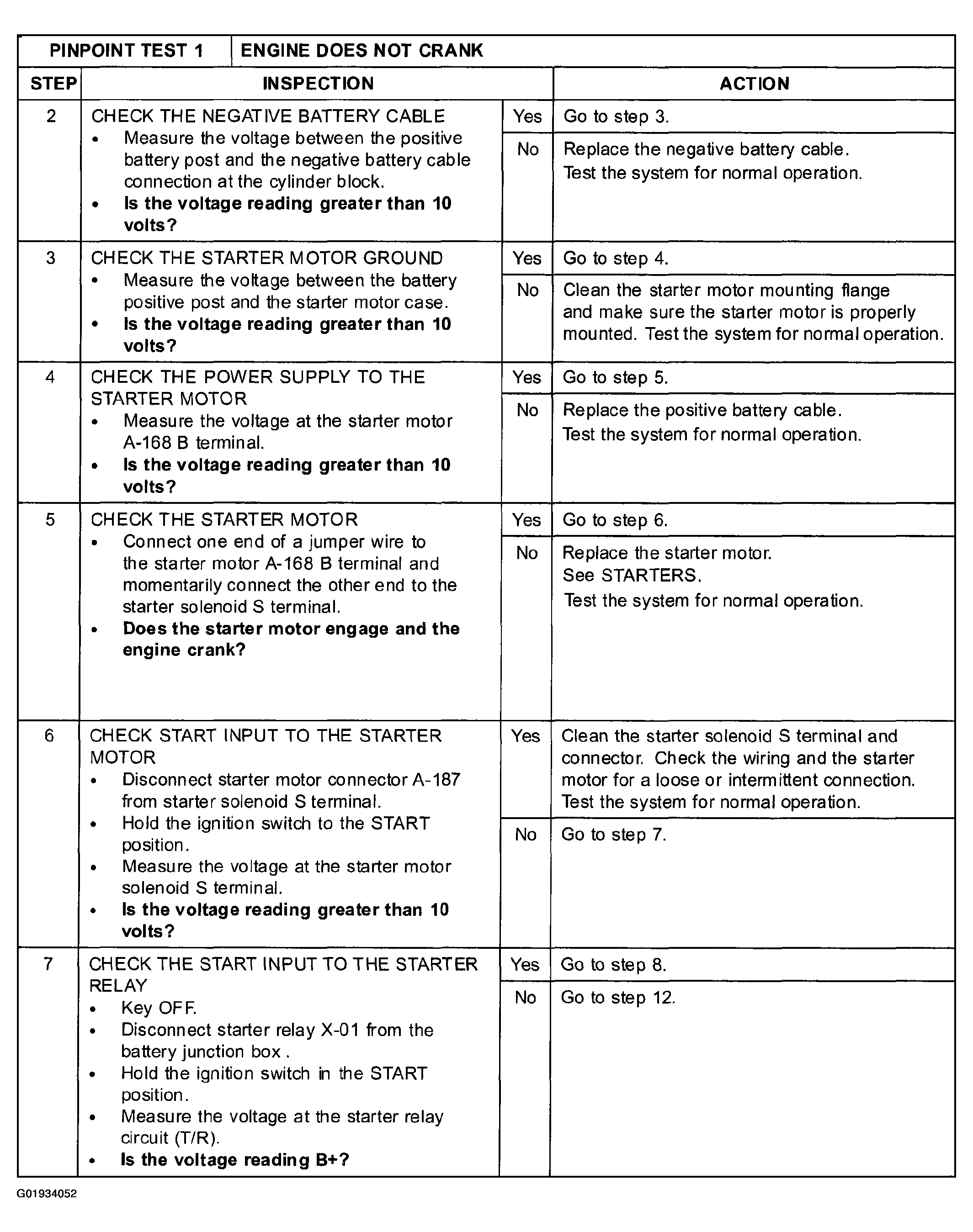

Fig 2: Starting System Pinpoint Test 1: Engine Does Not Crank (Steps 2-7)

Courtesy of MAZDA MOTORS CORP.

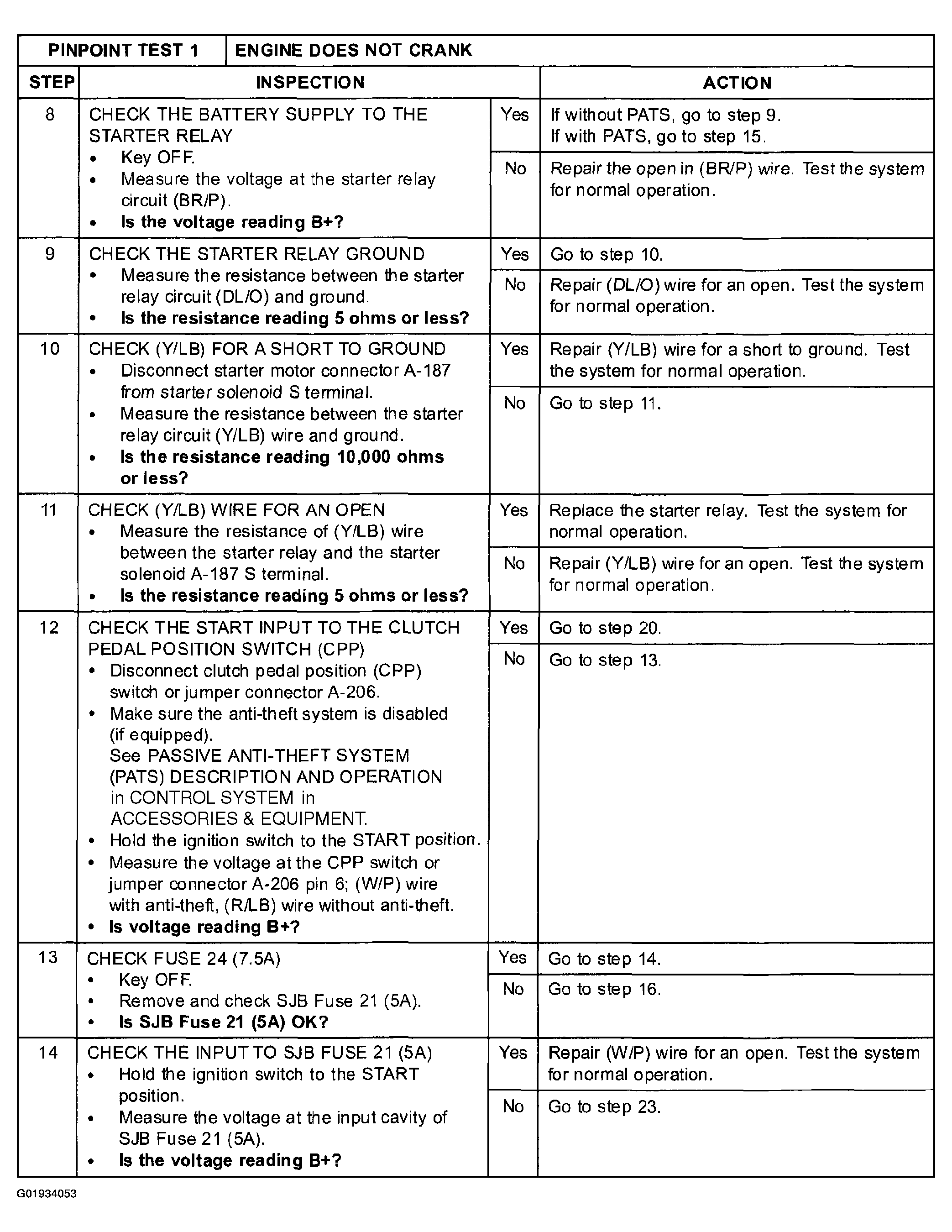

Fig 3: Starting System Pinpoint Test 1: Engine Does Not Crank (Steps 8-14)

Courtesy of MAZDA MOTORS CORP.

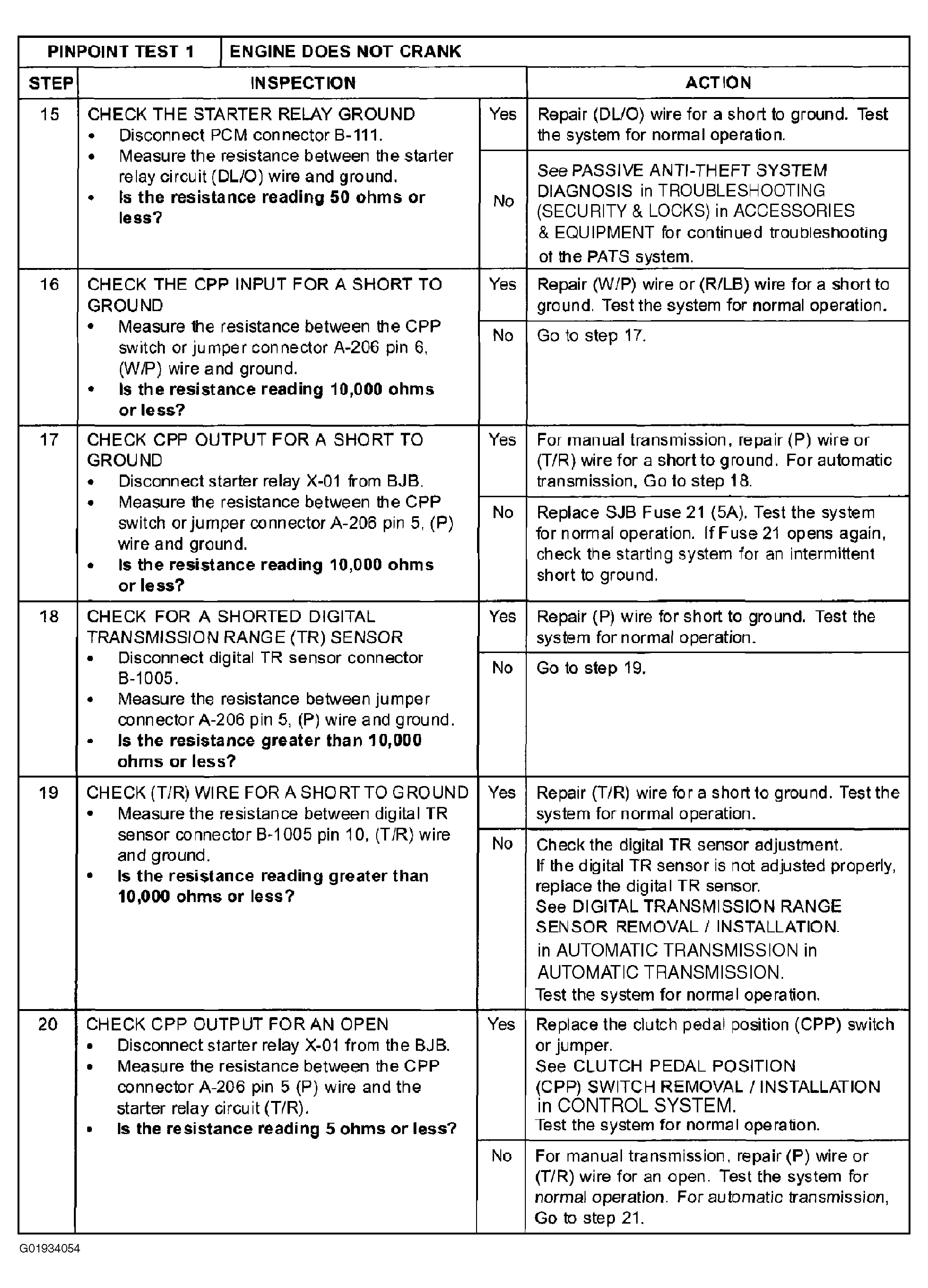

Fig 4: Starting System Pinpoint Test 1: Engine Does Not Crank (Steps 15-20)

Courtesy of MAZDA MOTORS CORP.

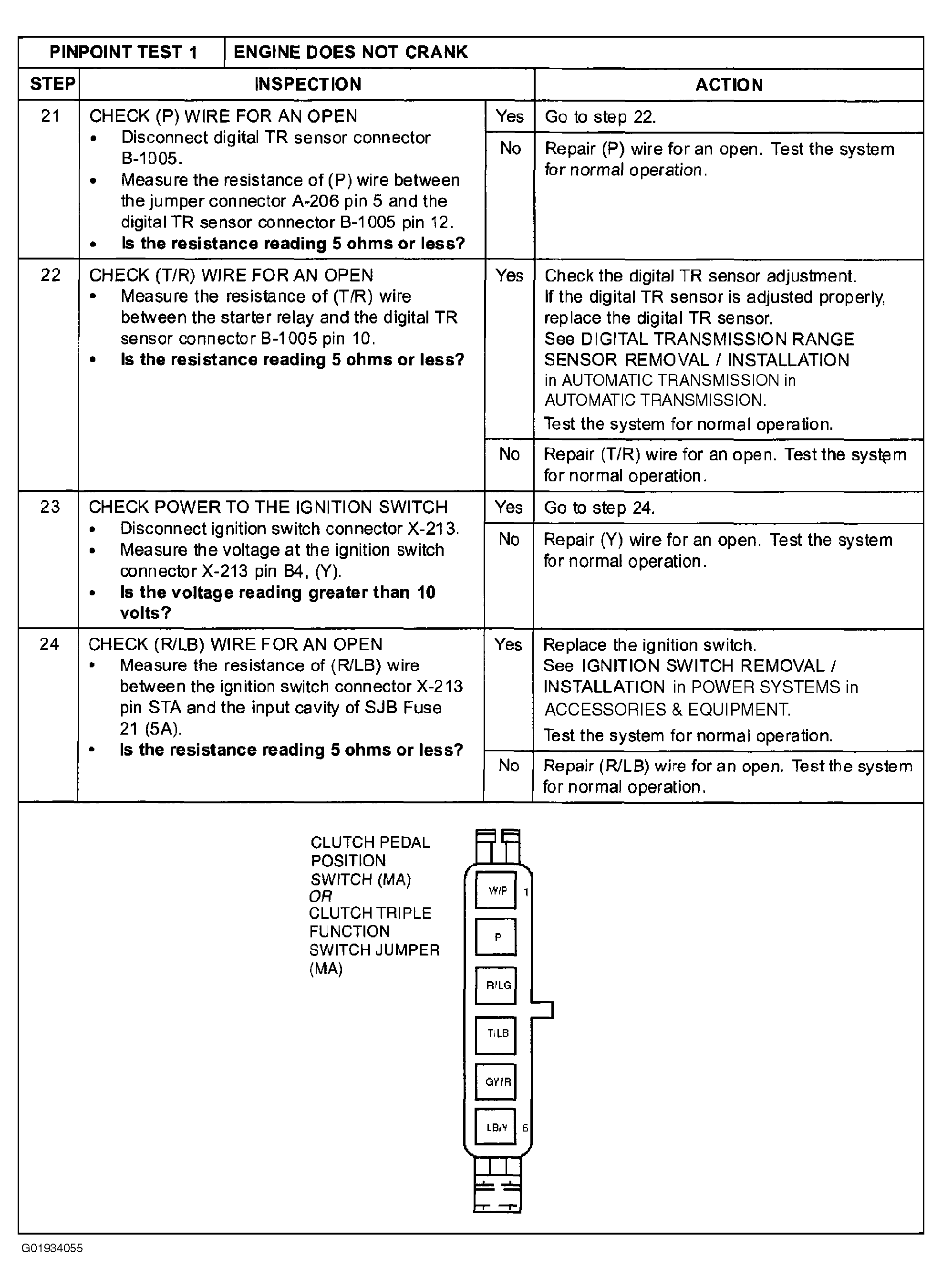

Fig 5: Starting System Pinpoint Test 1: Engine Does Not Crank (Steps 21-24)

Courtesy of MAZDA MOTORS CORP.

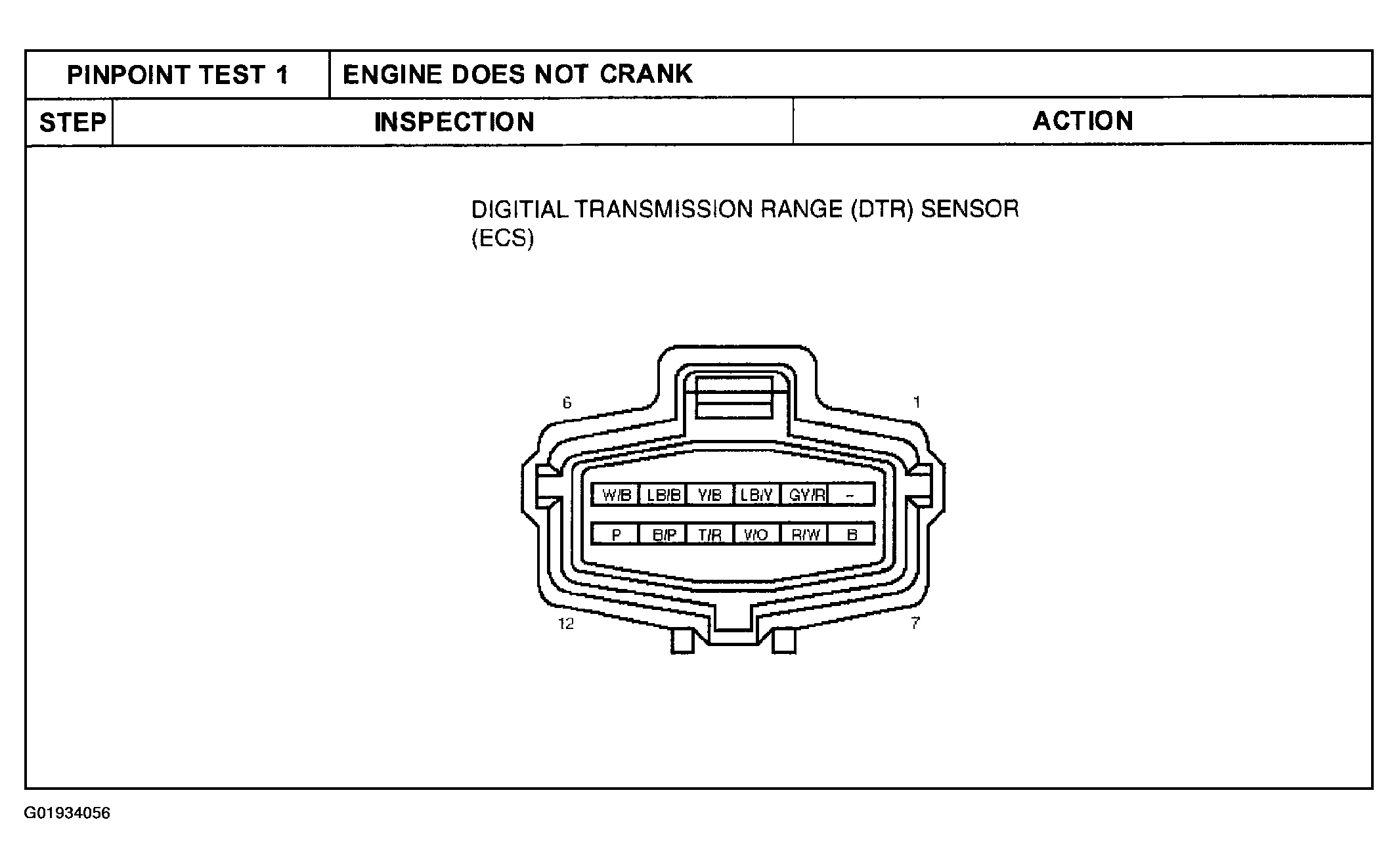

Fig 6: Starting System Pinpoint Test 1: Identifying DTR Sensor Connector Terminals

Courtesy of MAZDA MOTORS CORP.

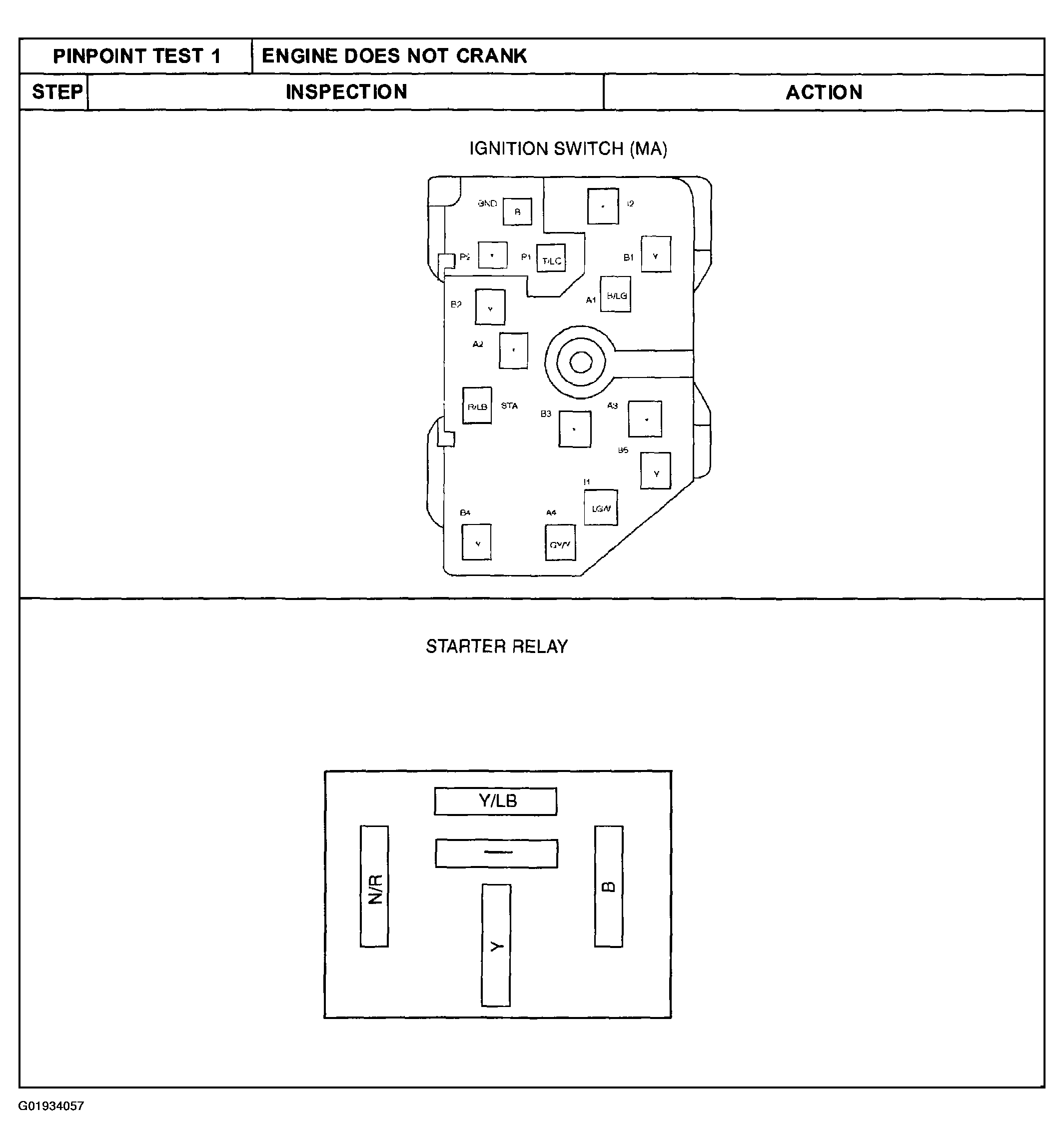

Fig 7: Starting System Pinpoint Test 1: Identifying Ignition Switch & Starter Relay Connector Terminals

Courtesy of MAZDA MOTORS CORP.
