Charging System Pinpoint Test 5: The Charging System Warning Indicator Is Off With The Ignition Switch In The Run Position And The Engine Off

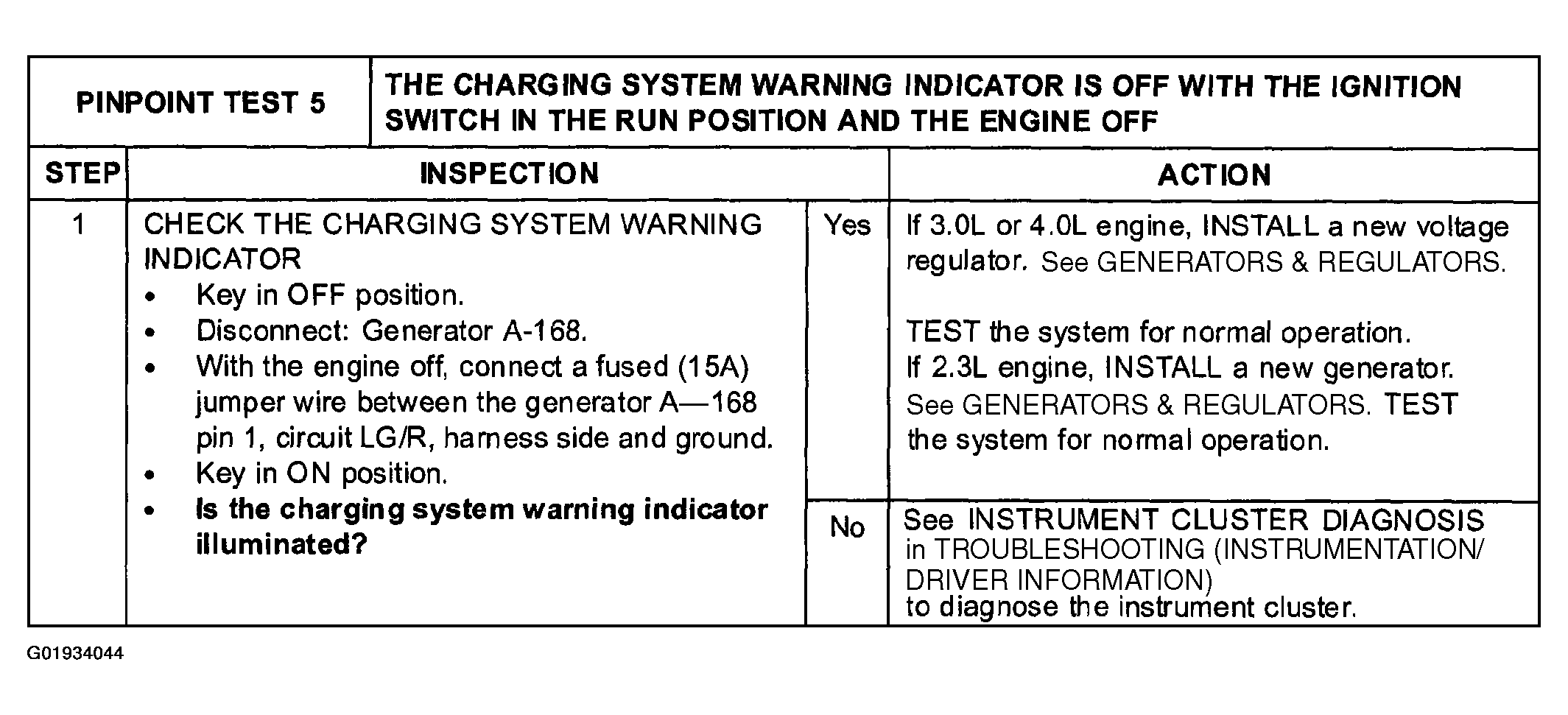

Fig 1: Charging System Pinpoint Test 5: Charging System Warning Indicator Is Off With Ignition Switch In Run Position And Engine Off (Step 1)

Courtesy of MAZDA MOTORS CORP.

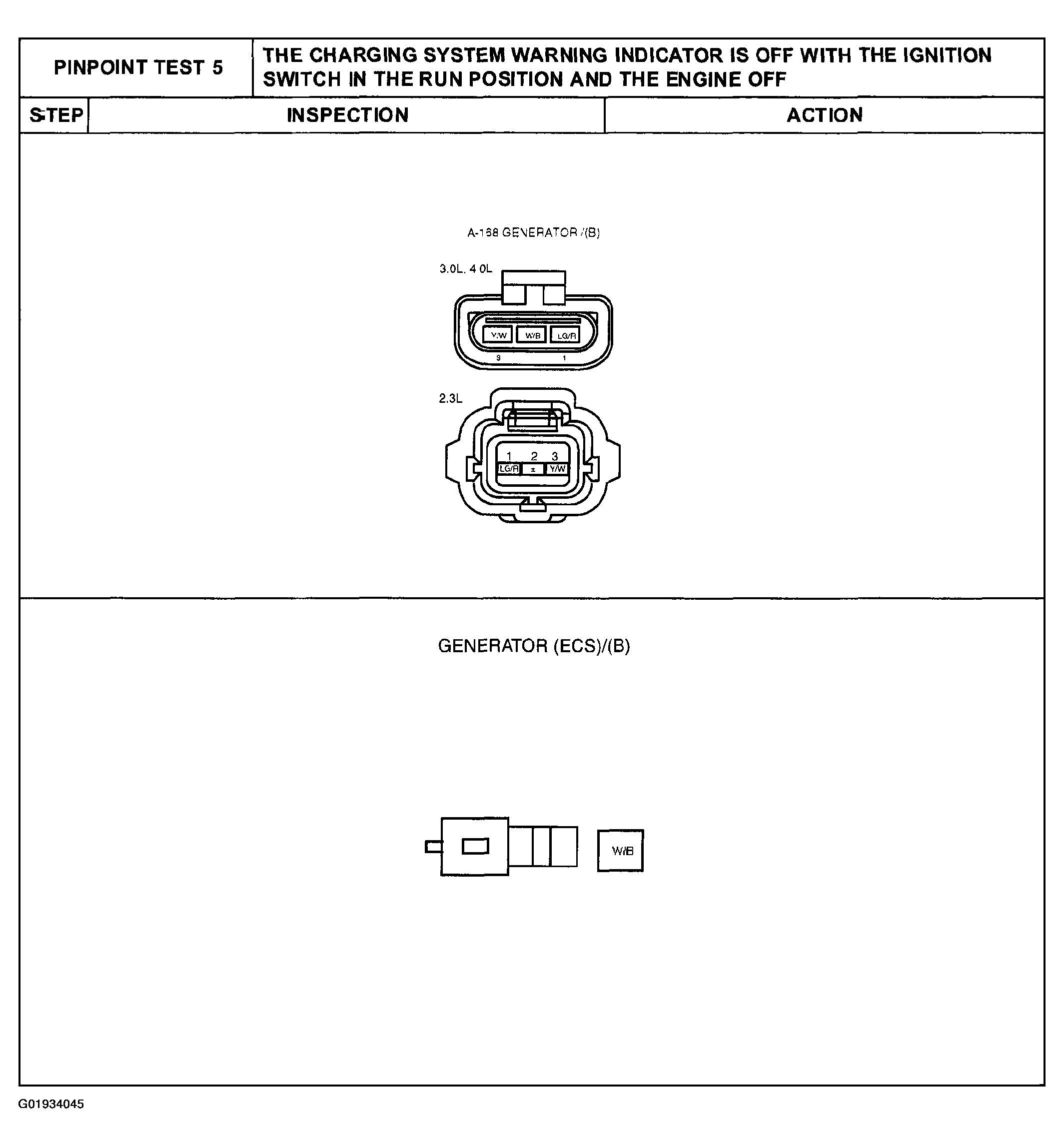

Fig 2: Charging System Pinpoint Test 5: Identifying Generator Connectors

Courtesy of MAZDA MOTORS CORP.
