Transfer Case Electronic Shift Pinpoint Test 2: No Communication With The 4X4 Control Module

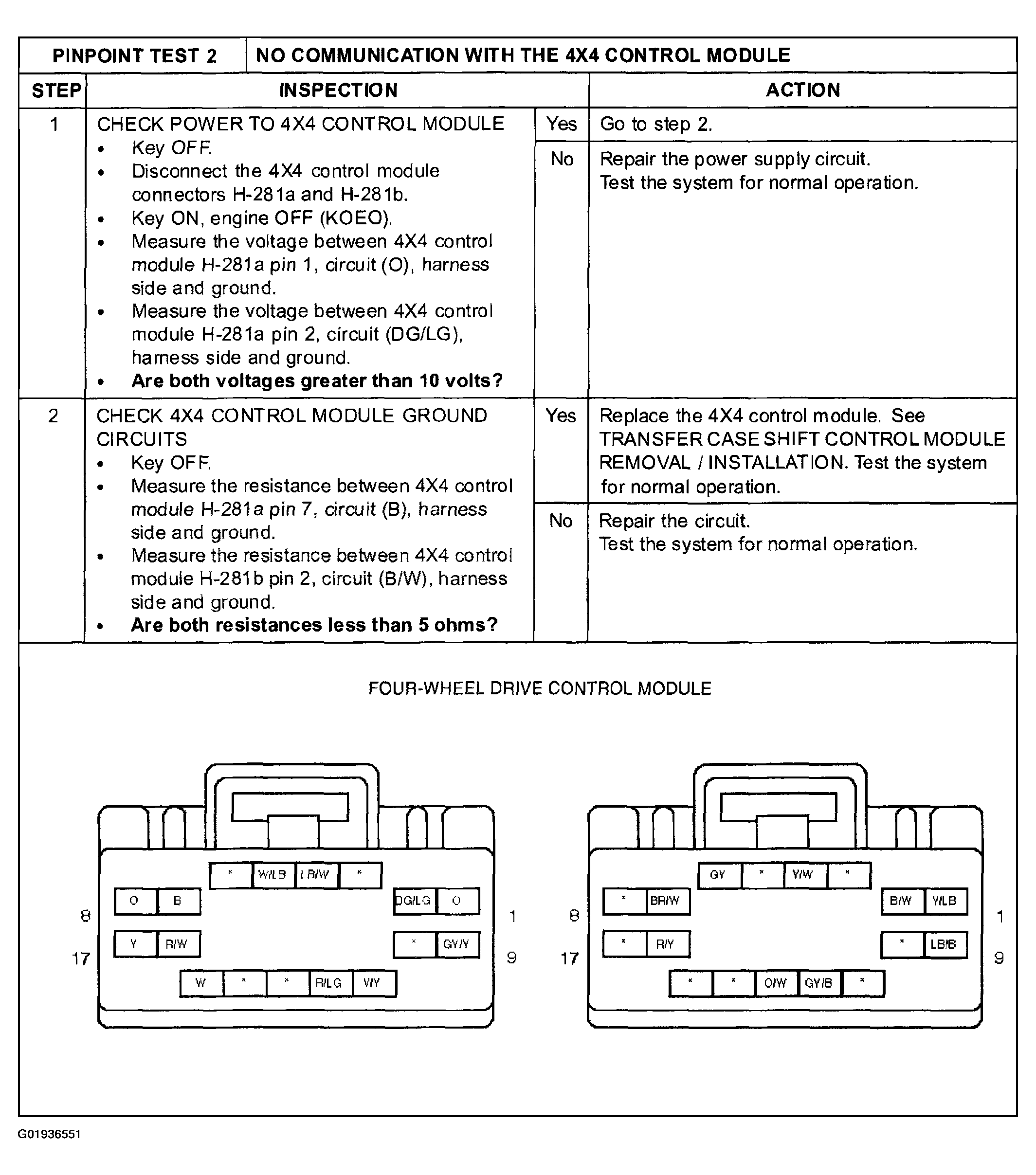

Fig 1: Transfer Case Electronic Shift Pinpoint Test 2: No Communication With 4X4 Control Module (Steps 1 & 2) & Four Wheel Drive Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.
