Transfer Case Shift Control Module Removal / Installation

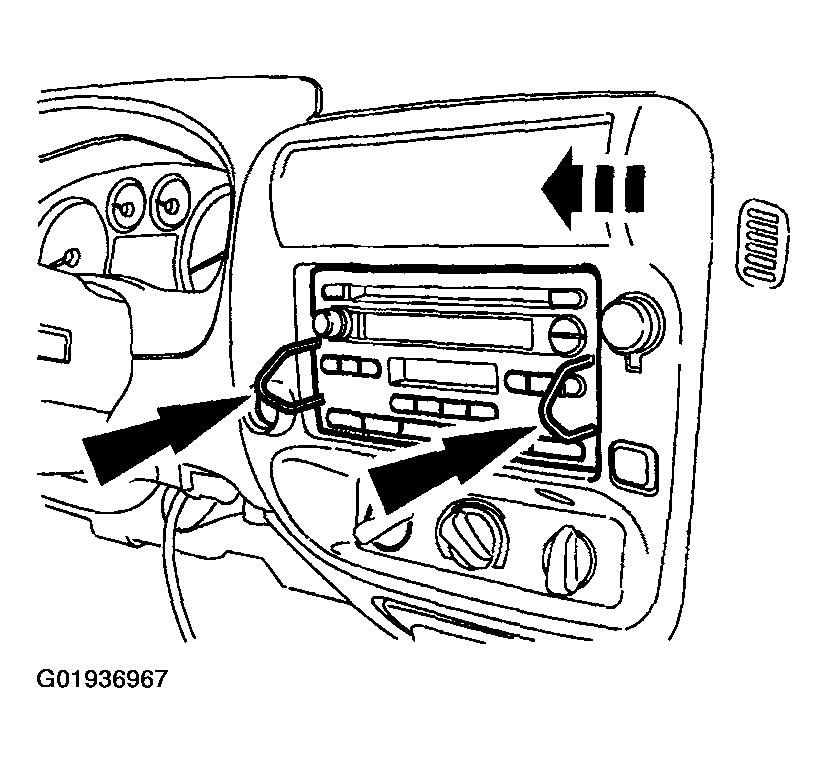

Fig 1: Removing Audio Unit

Courtesy of MAZDA MOTORS CORP.

1. Remove the audio unit.
   • Insert the removal tool.
   • Remove and support the audio unit.
   Fig 2: Removing Audio Unit Electrical Connector & Antenna Cable

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the audio unit electrical connector and antenna cable.

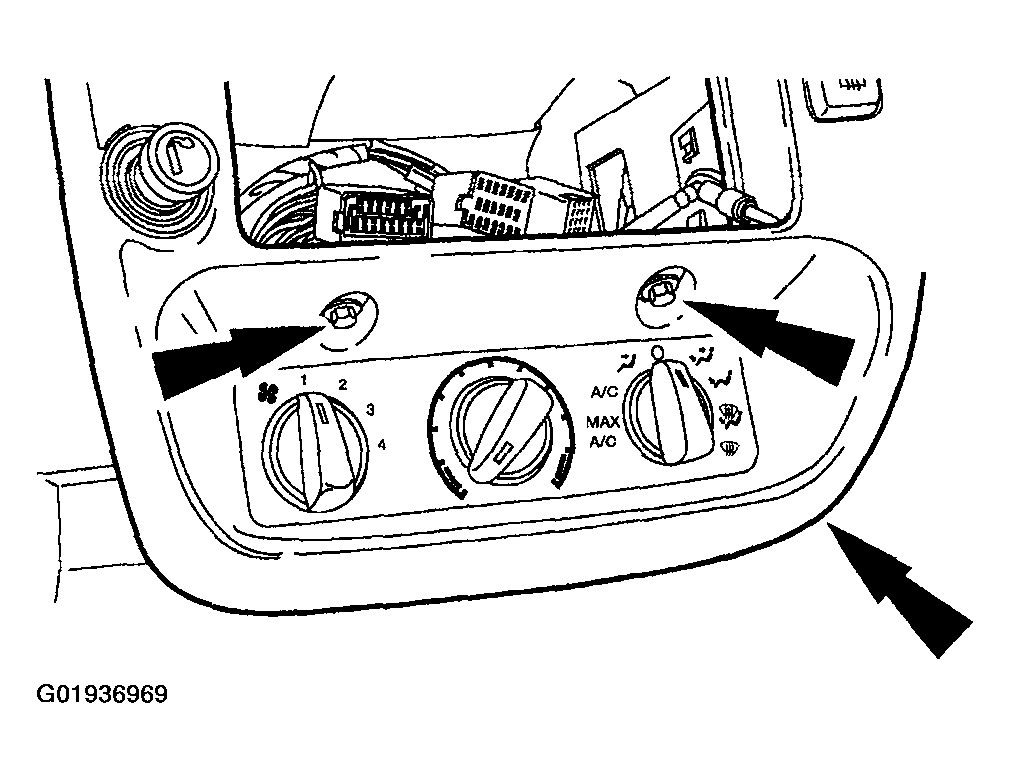

   Fig 3: Removing Instrument Panel Center Finish Panel Screws

   Courtesy of MAZDA MOTORS CORP.
3. Remove the screws. Disengage the spring clips. Remove the instrument panel finish panel.

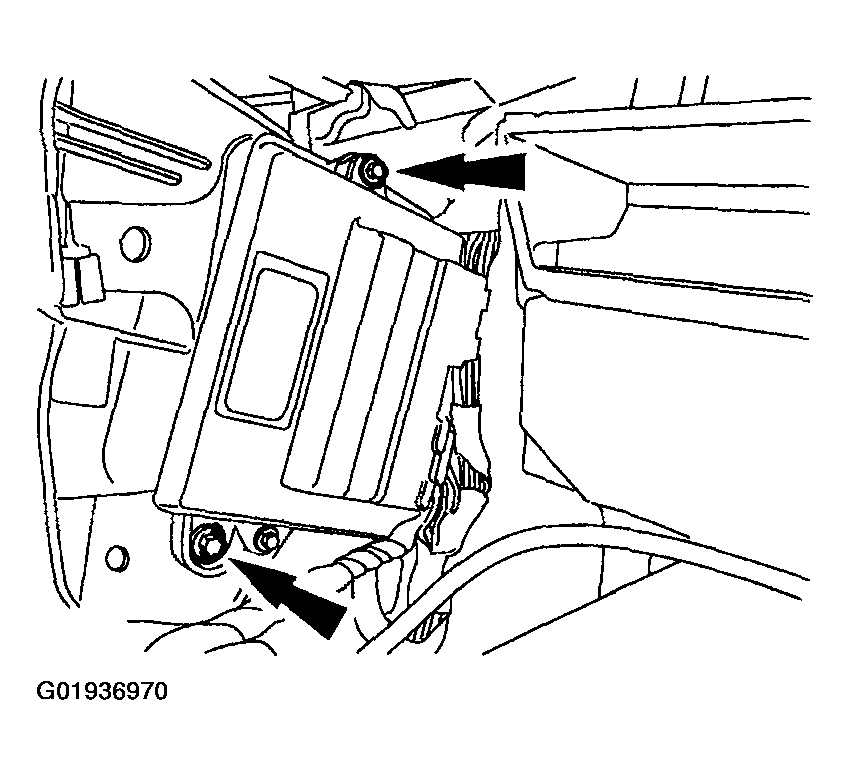

   Fig 4: Identifying Four Wheel Drive Control Module

   Courtesy of MAZDA MOTORS CORP.
4. Remove the 4X4 control module.
   1. Disengage the locking tangs and remove the harness connectors.
   2. Remove the screws.
   3. Remove the 4X4 control module.
5. Install in reverse order of removal.
