Steering Specifications

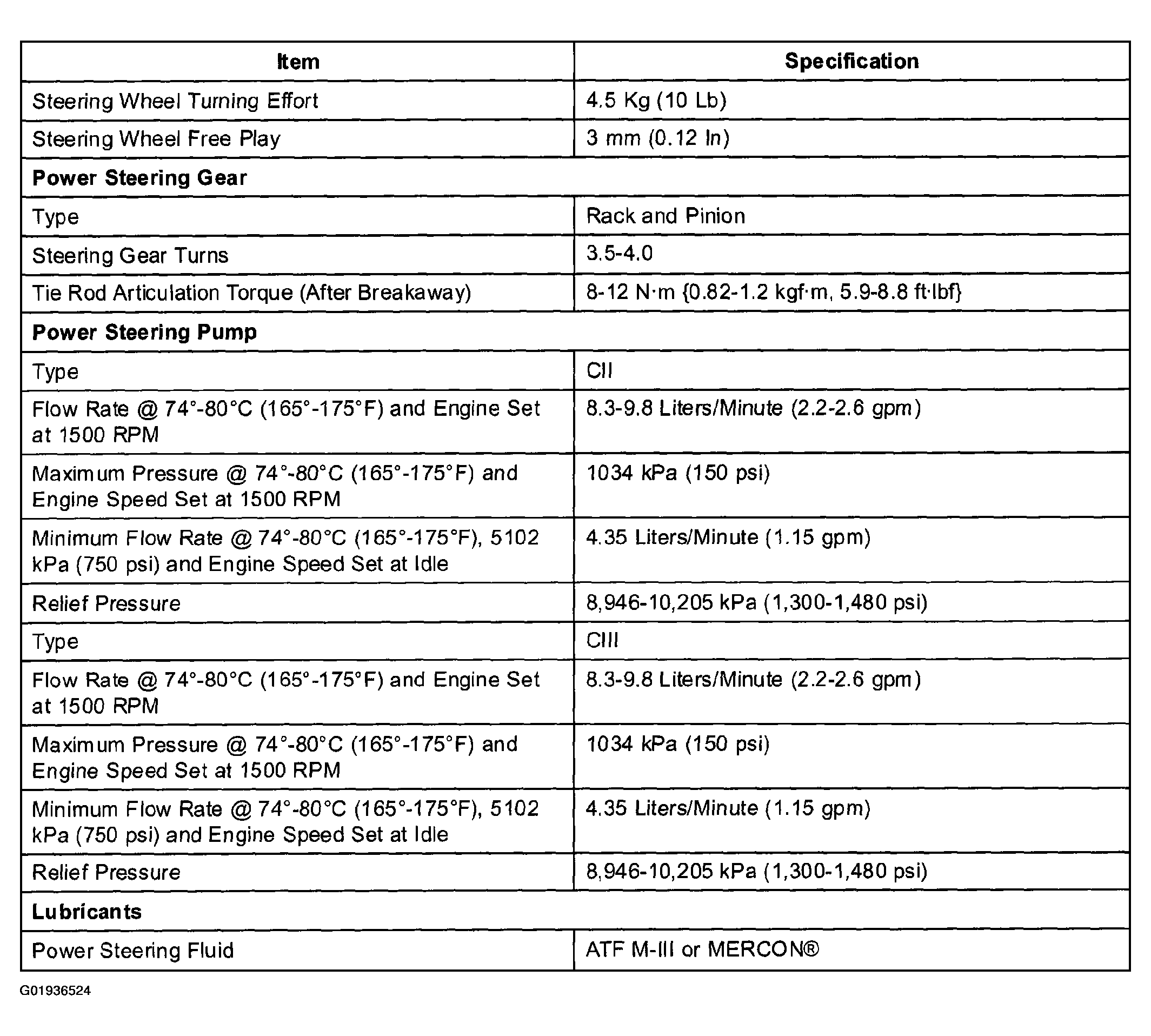

Fig 1: Steering Technical Specification Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
