Doors Do Not Lock/Unlock Using The Remote Transmitter

NOTE:

• All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.

NOTE:

• Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.

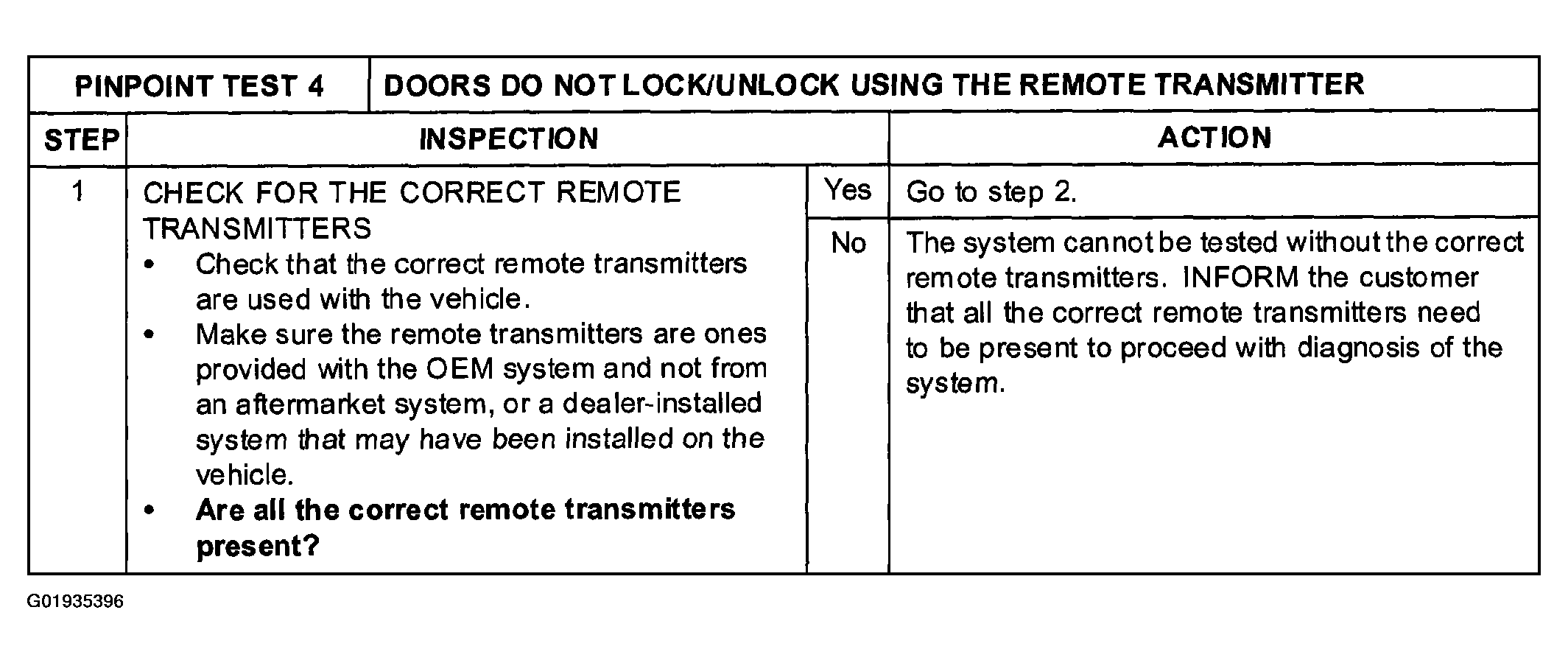

Fig 1: Pinpoint Test 4: For Doors Do Not Lock/Unlock Using Remote Transmitter Inspection Table (Step 1)

Courtesy of MAZDA MOTORS CORP.

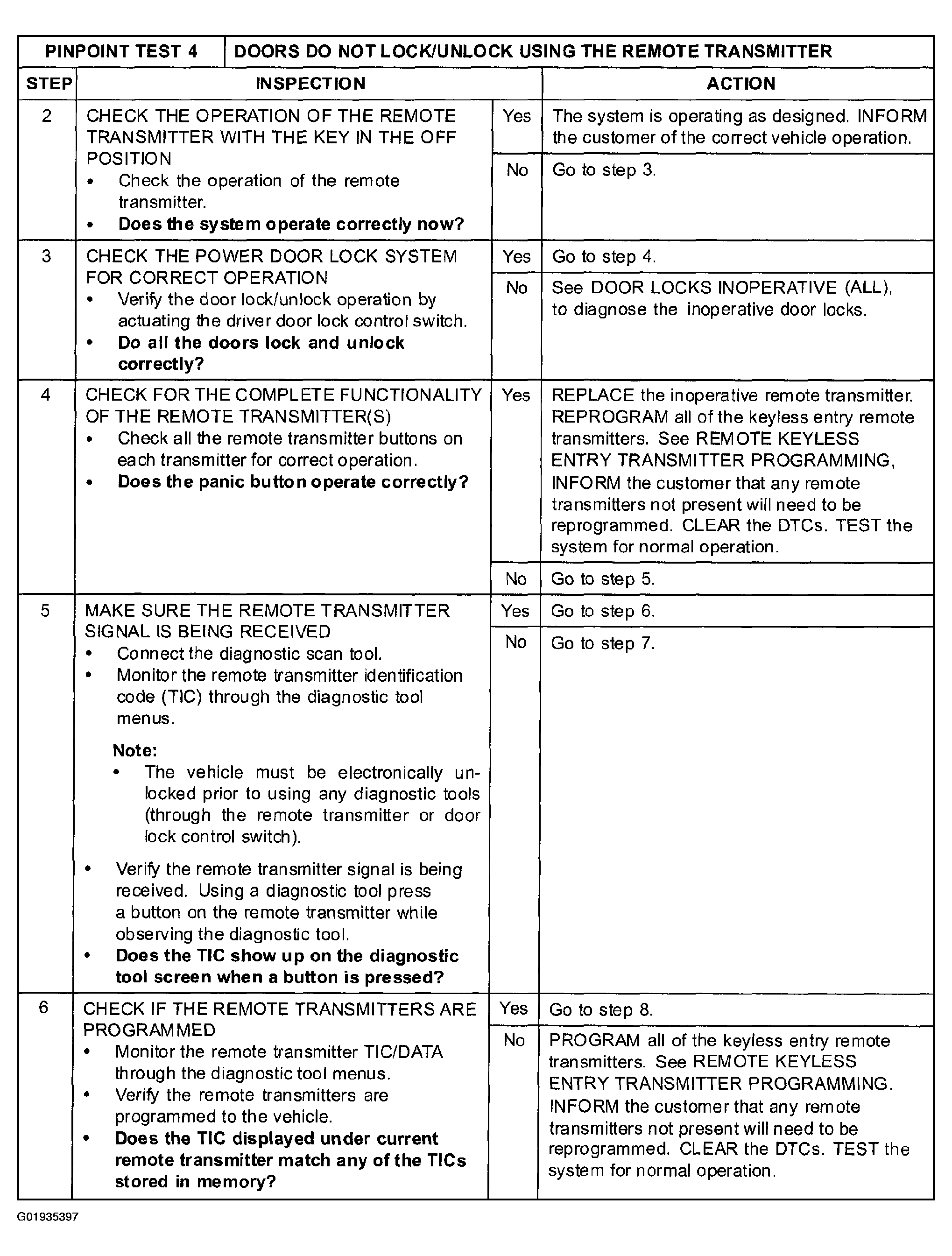

Fig 2: Pinpoint Test 4: For Doors Do Not Lock/Unlock Using Remote Transmitter Inspection Table (Steps 2-6)

Courtesy of MAZDA MOTORS CORP.

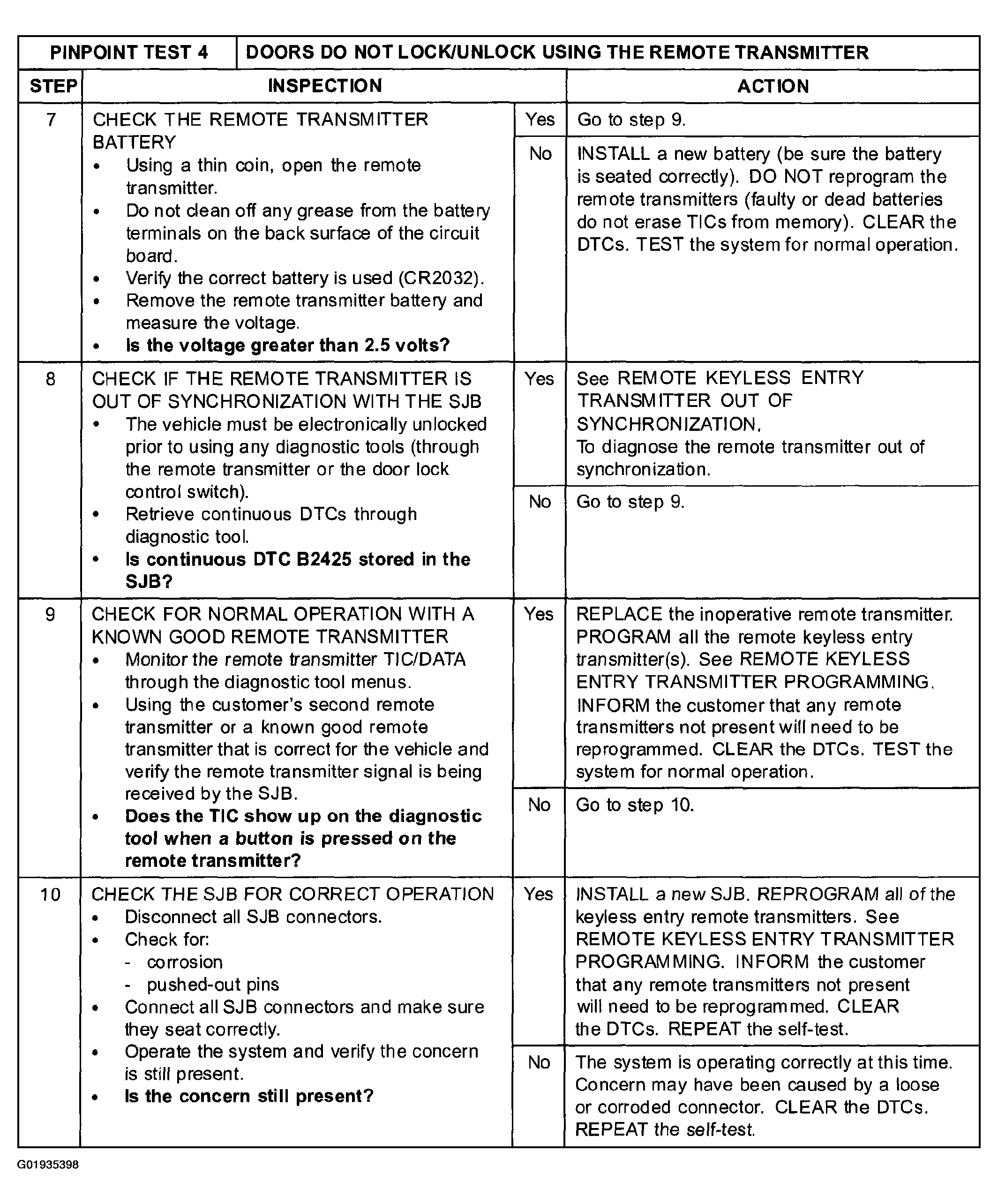

Fig 3: Pinpoint Test 4: For Doors Do Not Lock/Unlock Using Remote Transmitter Inspection Table (Steps 7-10)

Courtesy of MAZDA MOTORS CORP.
