Cruise Control System Pinpoint Test 1: Cruise Control Is Inoperative-No Flash Codes

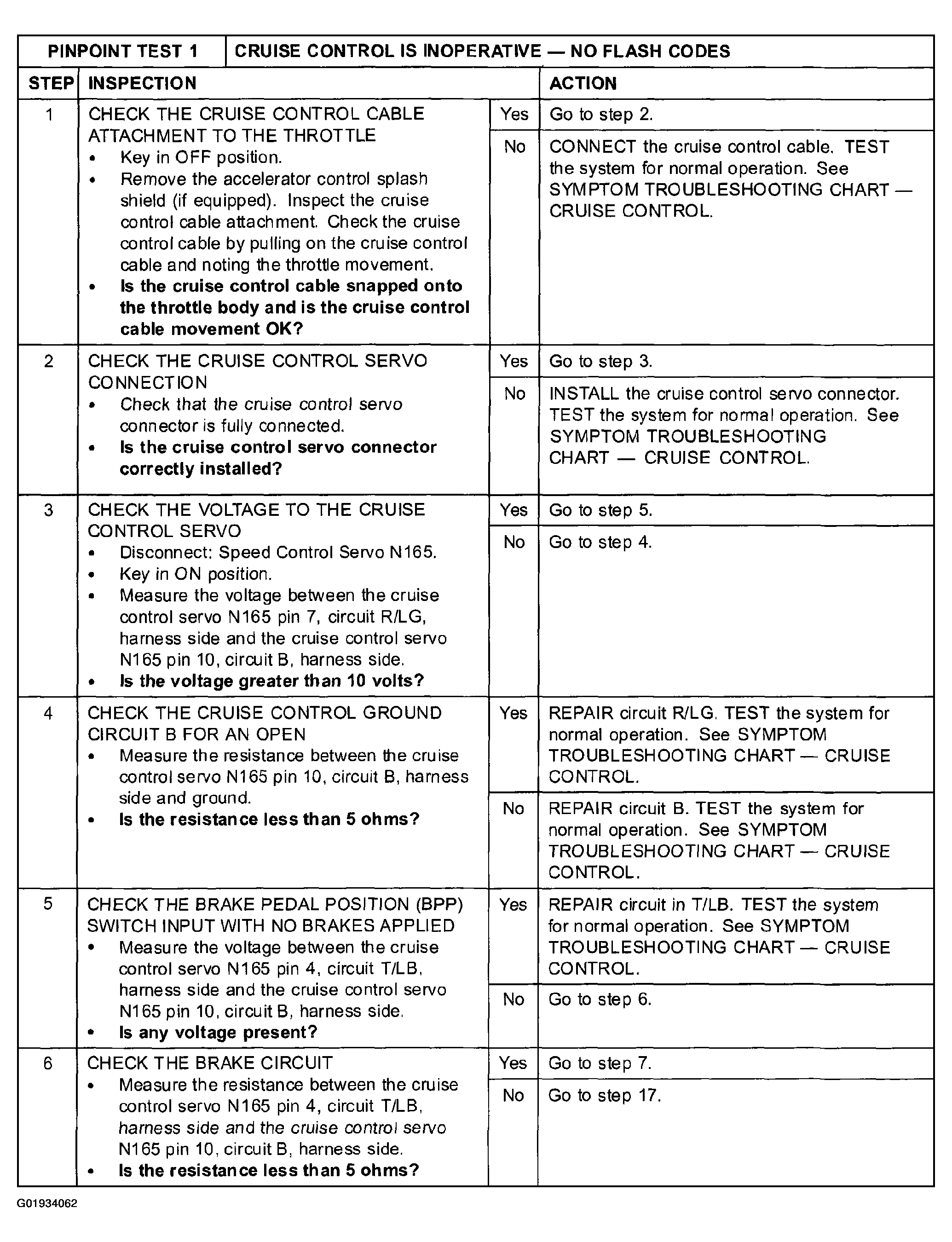

Fig 1: Cruise Control System Pinpoint Test 1: Cruise Control Inoperative - No Flash Codes (Steps 1-6)

Courtesy of MAZDA MOTORS CORP.

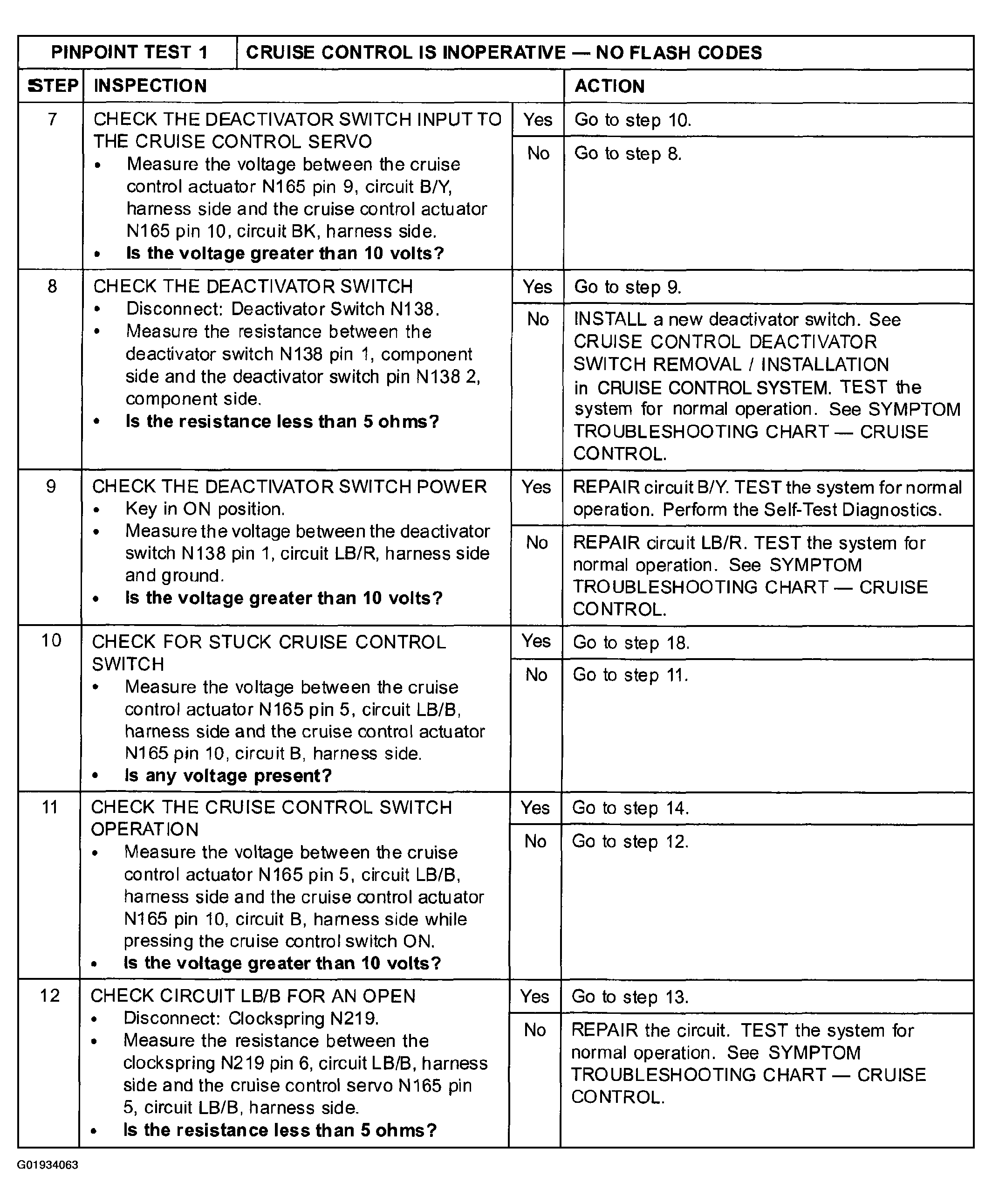

Fig 2: Cruise Control System Pinpoint Test 1: Cruise Control Inoperative - No Flash Codes (Steps 7-12)

Courtesy of MAZDA MOTORS CORP.

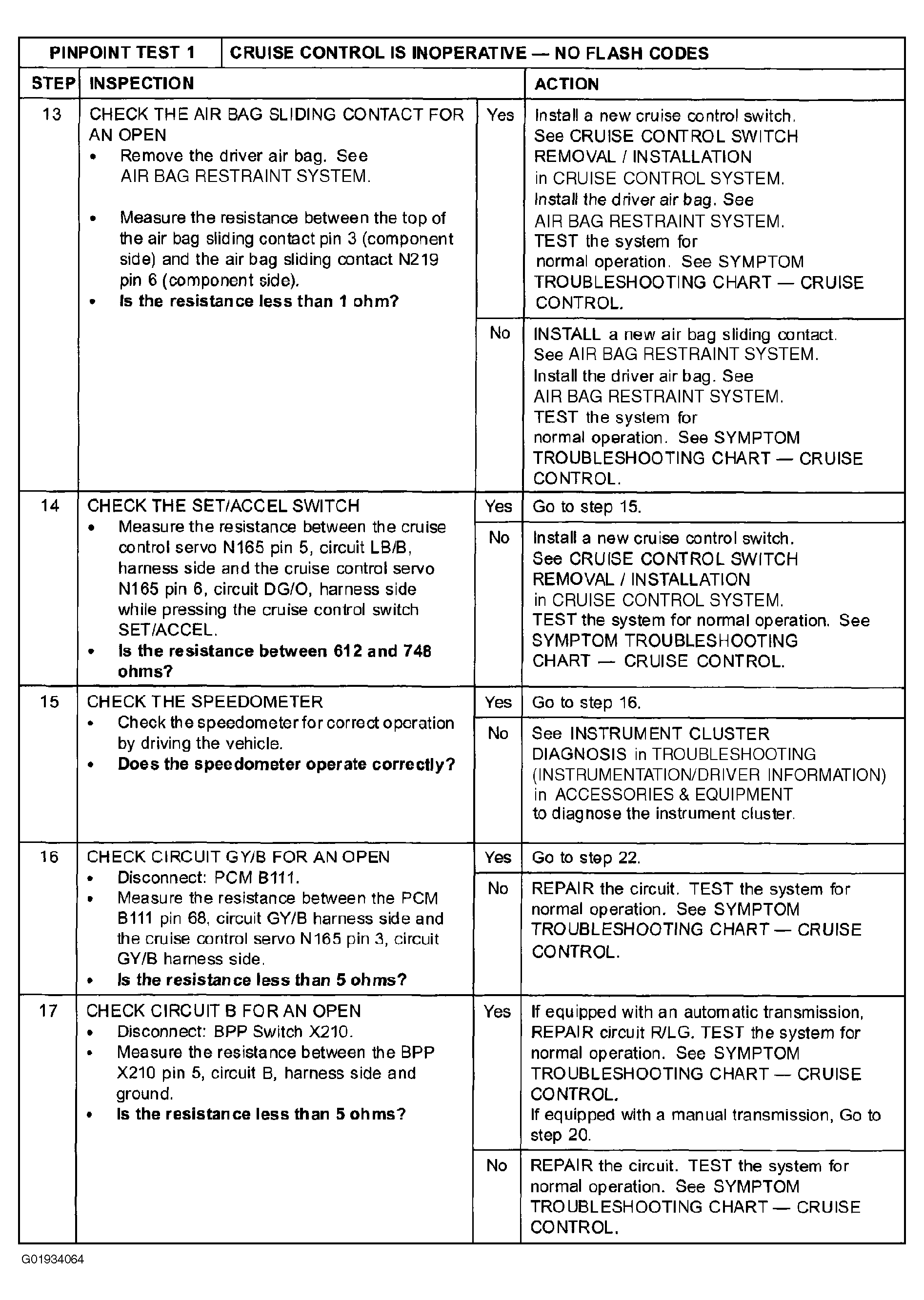

Fig 3: Cruise Control System Pinpoint Test 1: Cruise Control Inoperative - No Flash Codes (Steps 13-17)

Courtesy of MAZDA MOTORS CORP.

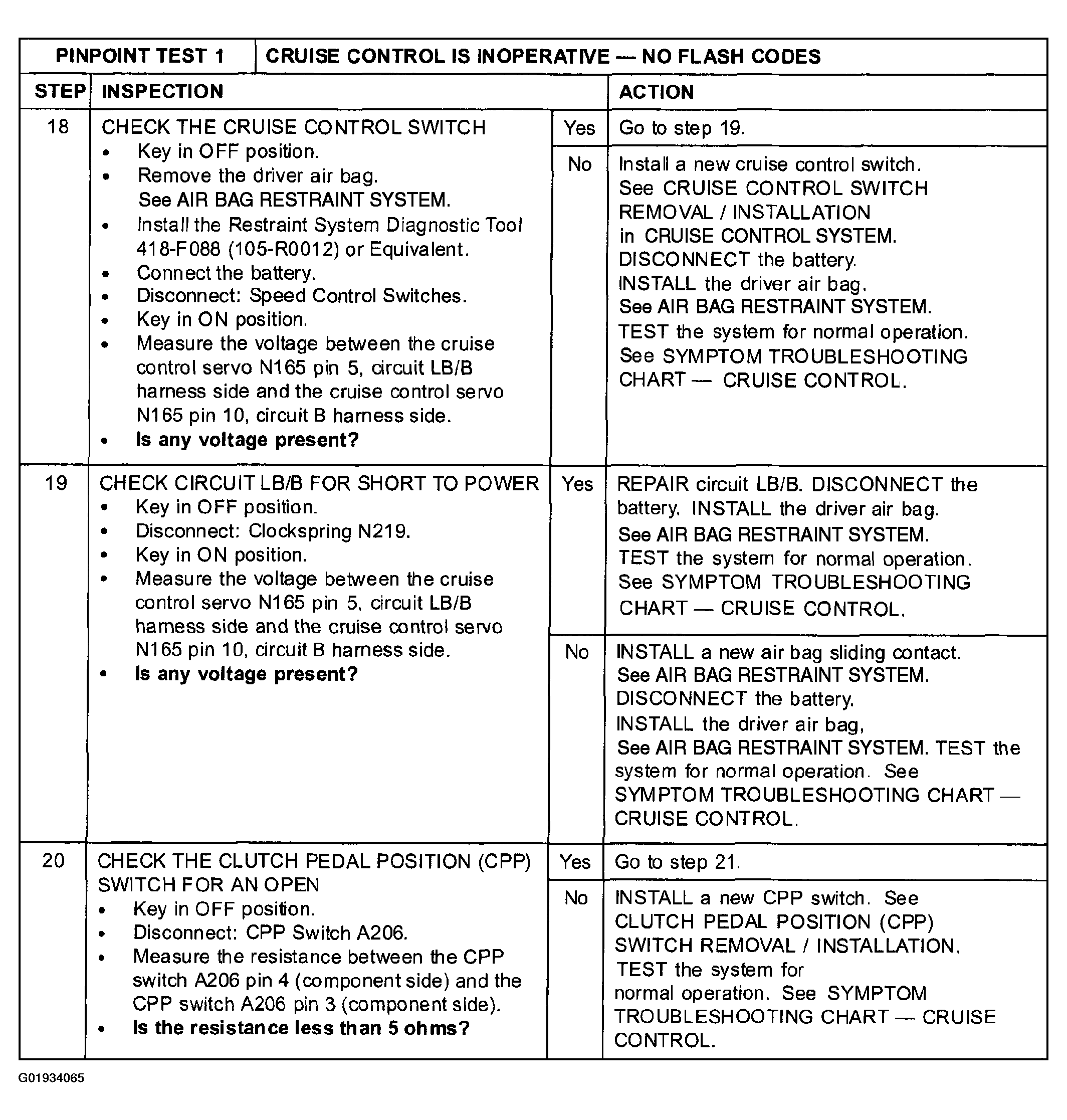

Fig 4: Cruise Control System Pinpoint Test 1: Cruise Control Inoperative - No Flash Codes (Steps 18-20)

Courtesy of MAZDA MOTORS CORP.

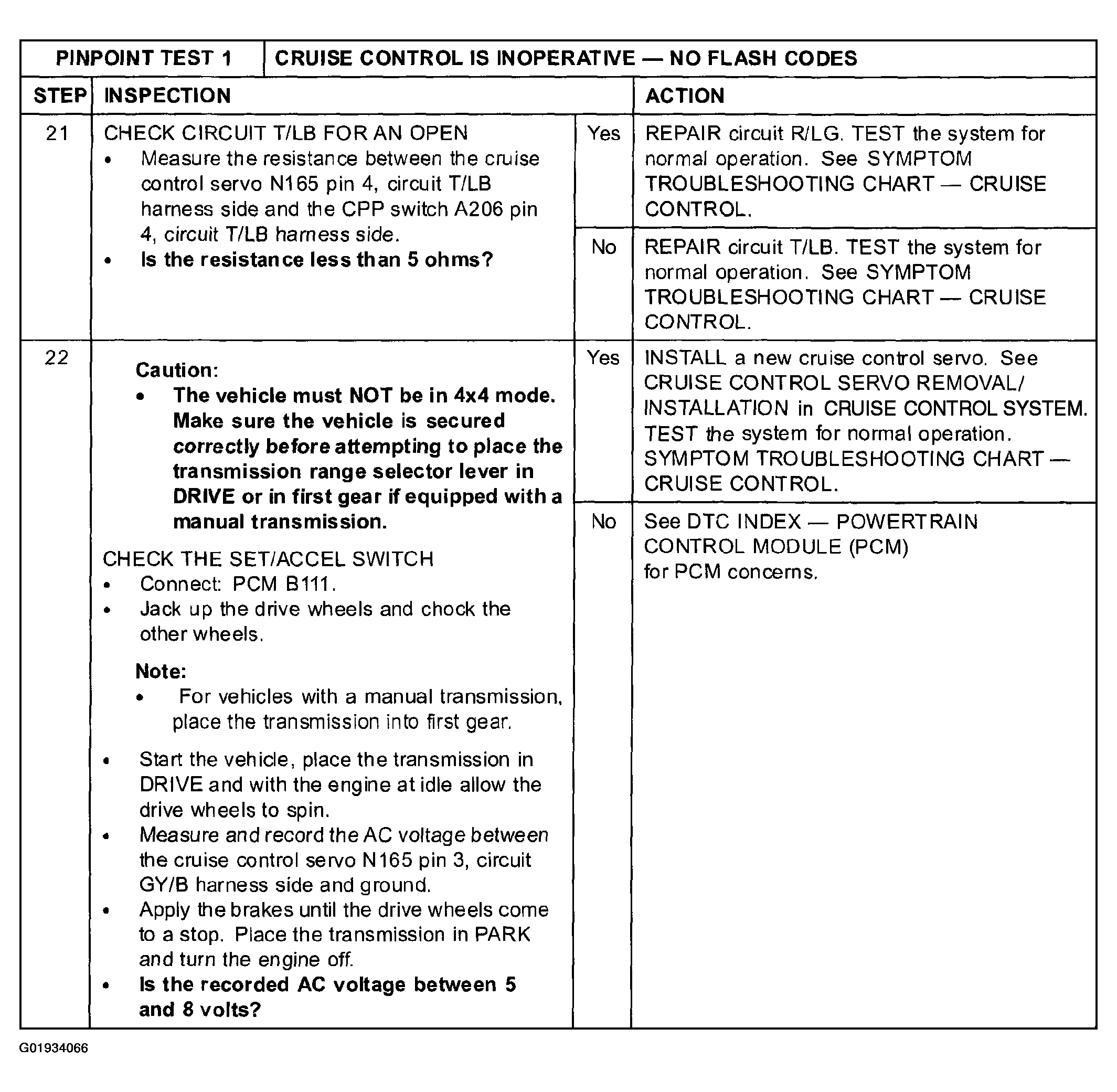

Fig 5: Cruise Control System Pinpoint Test 1: Cruise Control Inoperative - No Flash Codes (Steps 21-22)

Courtesy of MAZDA MOTORS CORP.

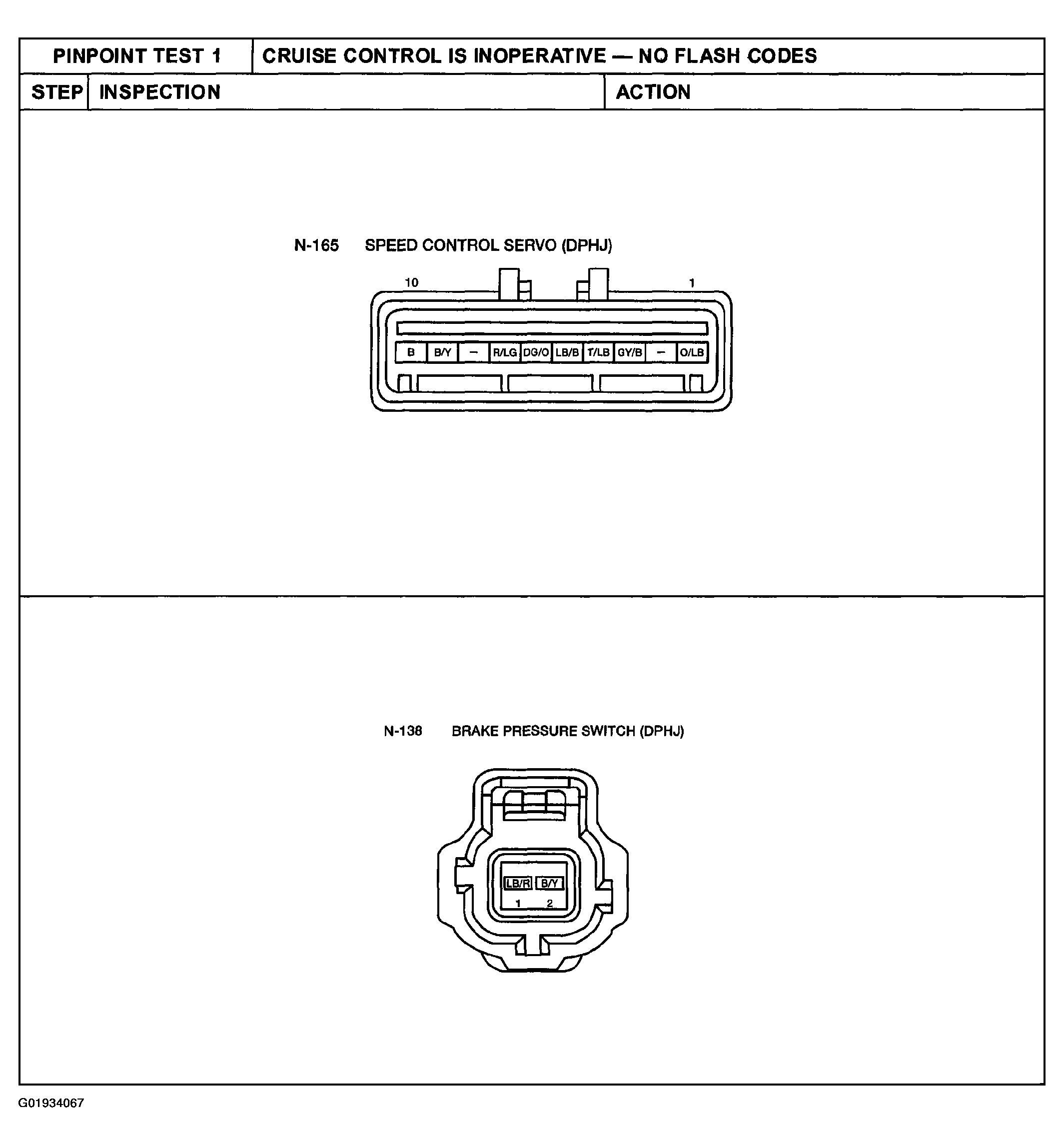

Fig 6: Cruise Control System Pinpoint Test 1: Identifying Speed Control Servo & Brake Pressure Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.

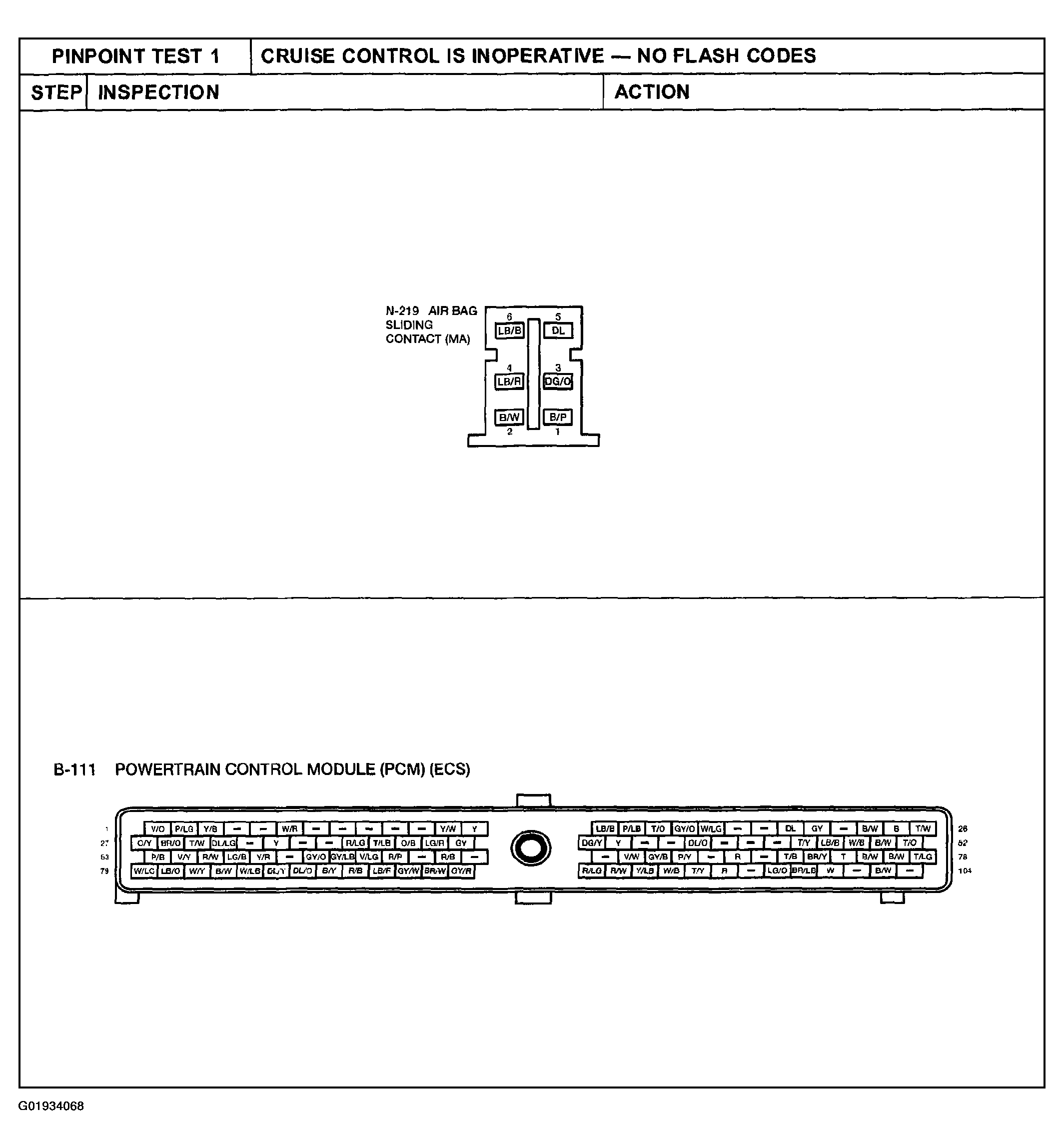

Fig 7: Cruise Control System Pinpoint Test 1: Identifying Air Bag Sliding Contact & PCM Connector Terminals

Courtesy of MAZDA MOTORS CORP.

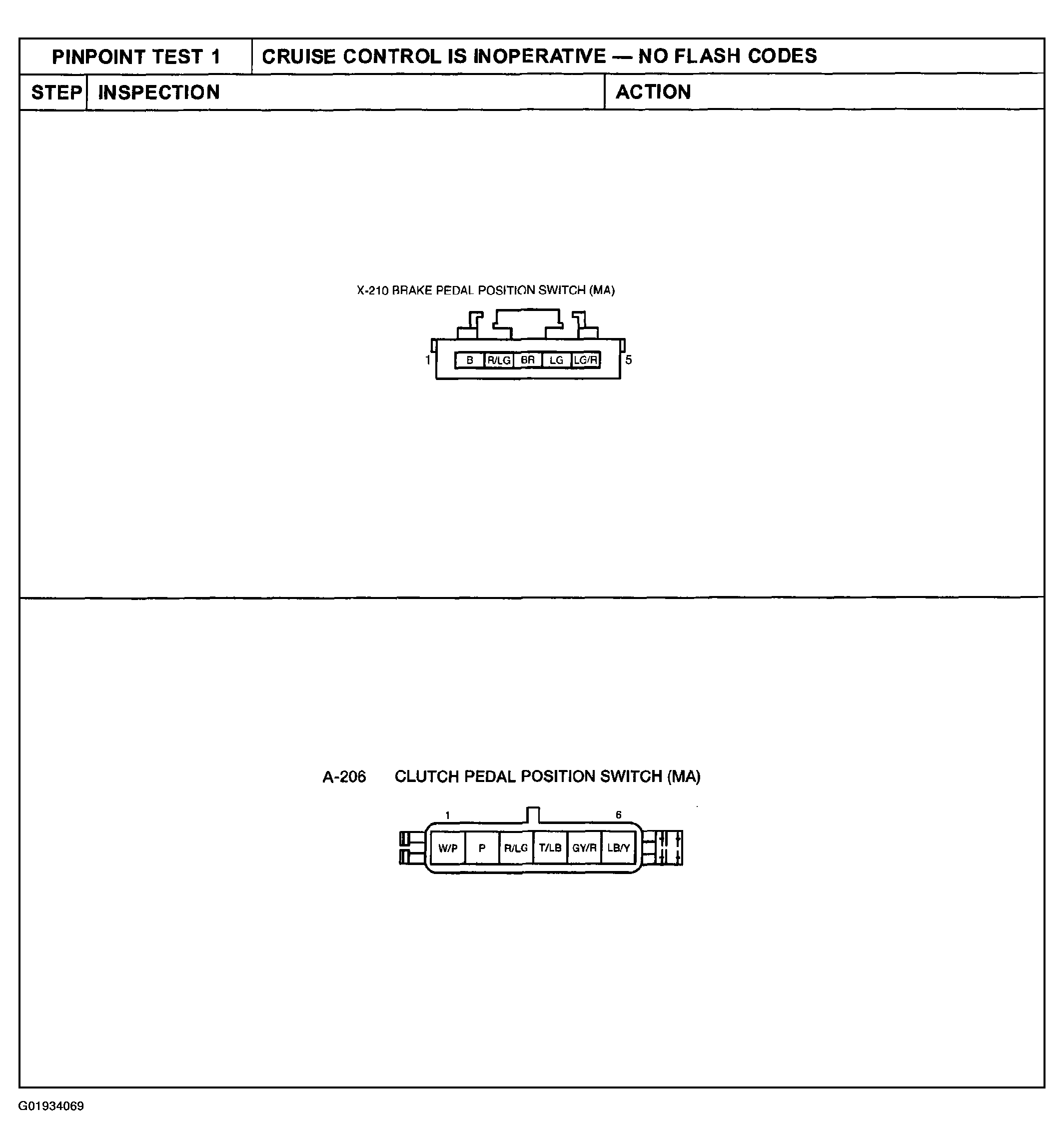

Fig 8: Cruise Control System Pinpoint Test 1: Identifying Brake Pedal Position Switch & Clutch Pedal Position Switch Connector Terminals.

Courtesy of MAZDA MOTORS CORP.
