Front Climate Control Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the illustration.

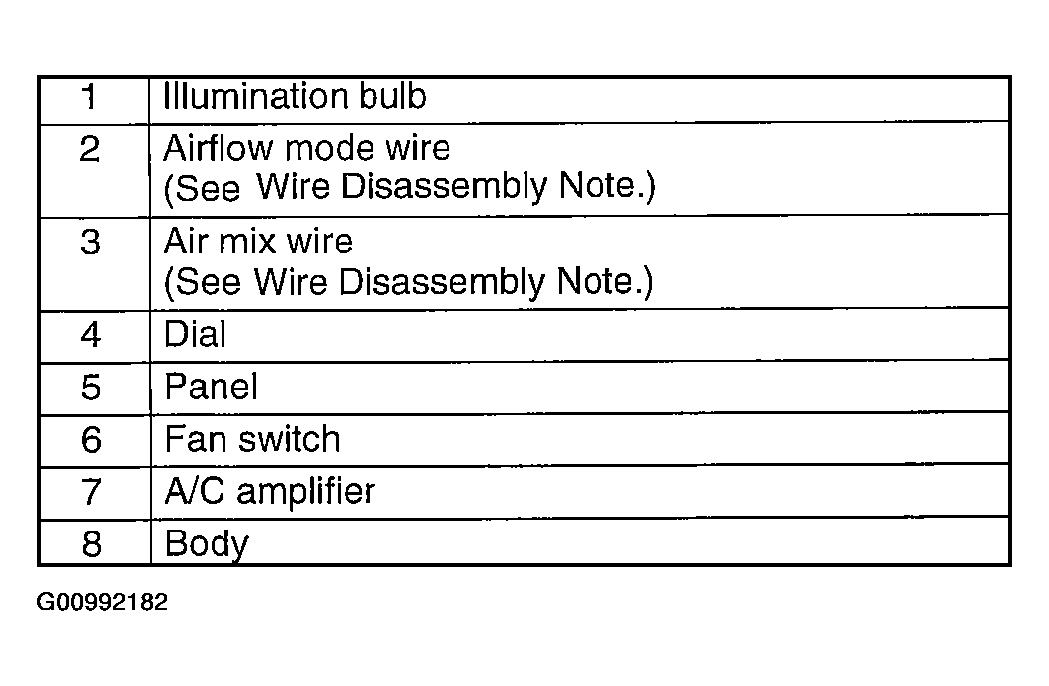

    Fig 1: Disassembling Order Of Front Climate Control Unit
    G00992182Courtesy of MAZDA MOTORS CORP.

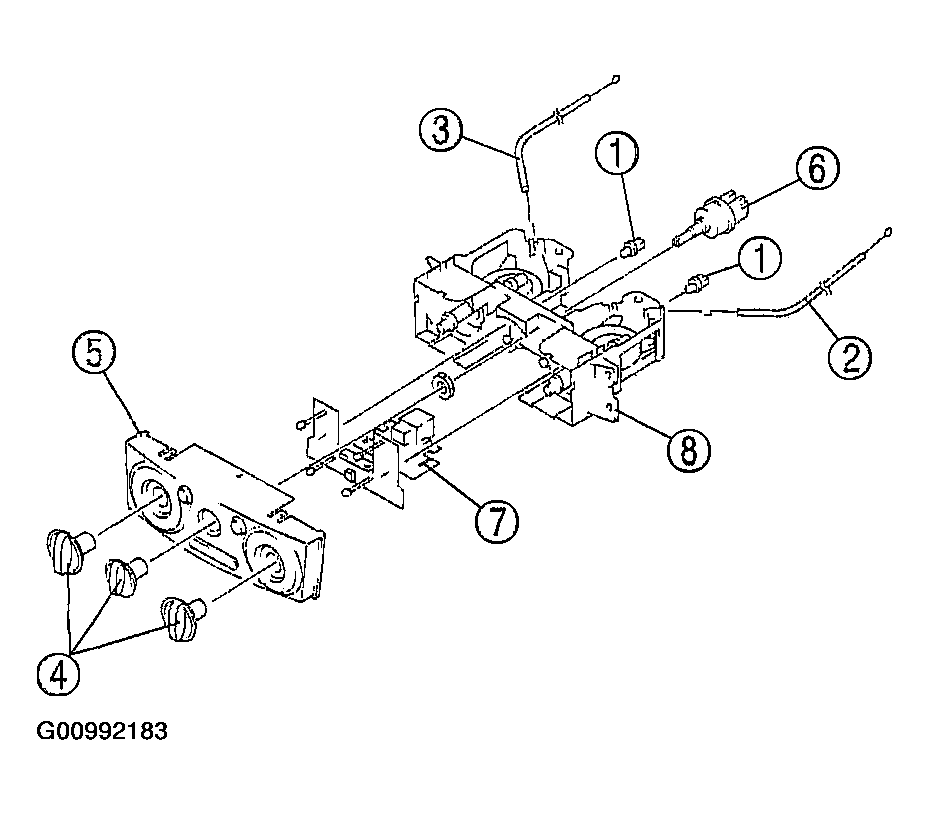

    Fig 2: Disassembling/Assembling Front Climate Control Unit
    G00992183Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
