Sas Control Module Configuration

Connect scan tool to Data Link Connector (DLC). Select MODULE PROGRAMMING and PROGRAMMABLE MODULE INSTALLATION. Select RCM and perform procedure according to directions on scan tool screen.

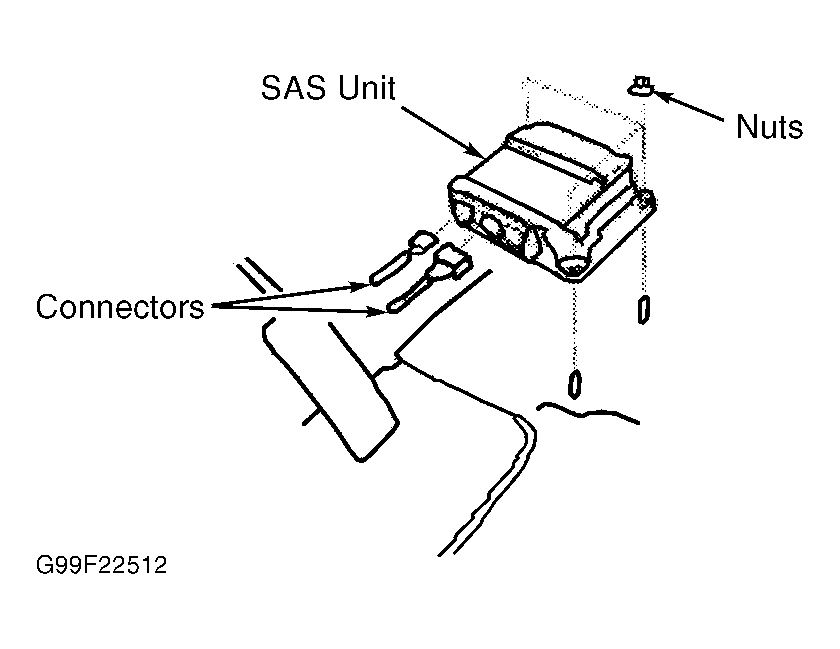

Fig 1: Identifying SAS Control Module

Courtesy of MAZDA MOTORS CORP.
