DTC P2405: Evaporative Emissions System Leak Detection Pump Orifice Fallen Off: Notes

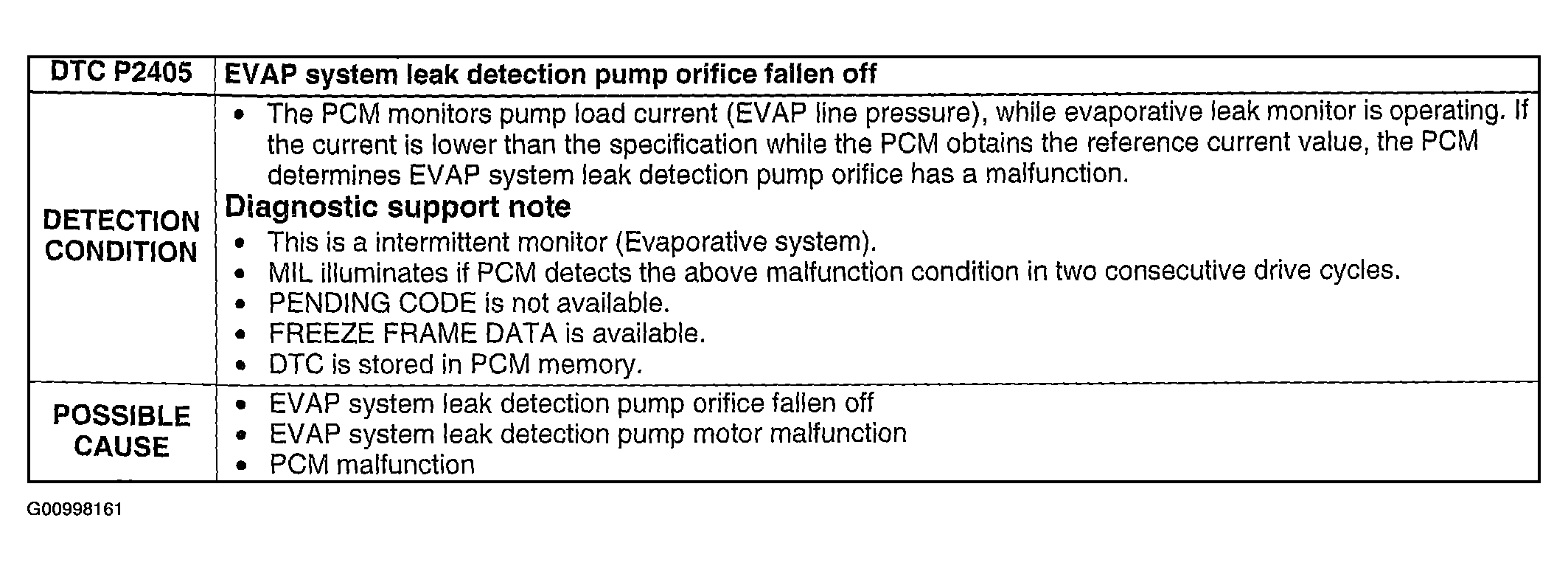

Fig 1: DTC P2405 Detection Condition & Possible Causes Chart
G00998161Courtesy of MAZDA MOTORS CORP.
