Symptom Troubleshooting [Engine Control System AJ]
>>
No. 19 Exhaust Smoke
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure

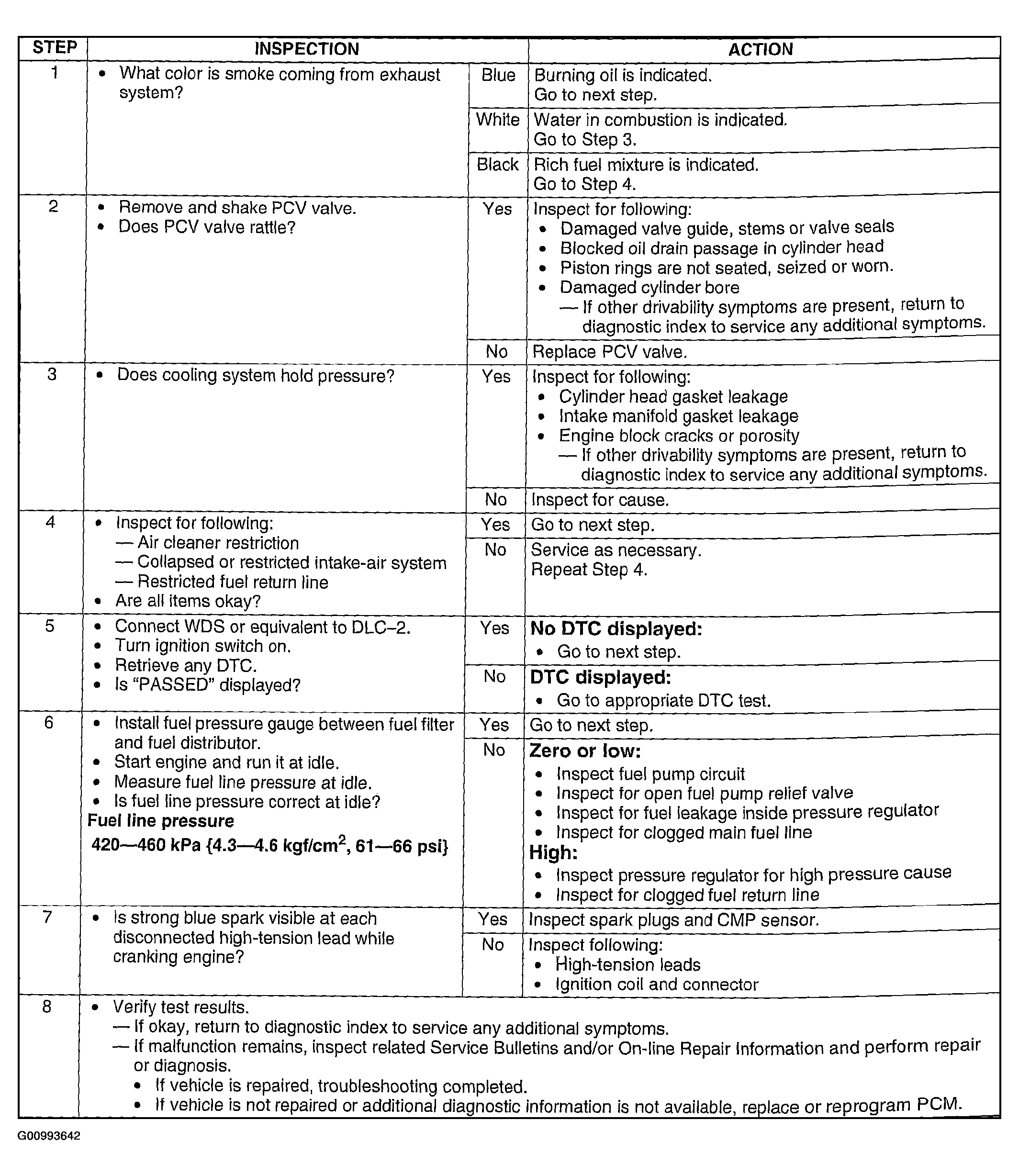

Fig 1: Symptom No.19 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
