DTC P0461: Fuel Gauge Sender Unit Circuit Range/Performance Problem

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

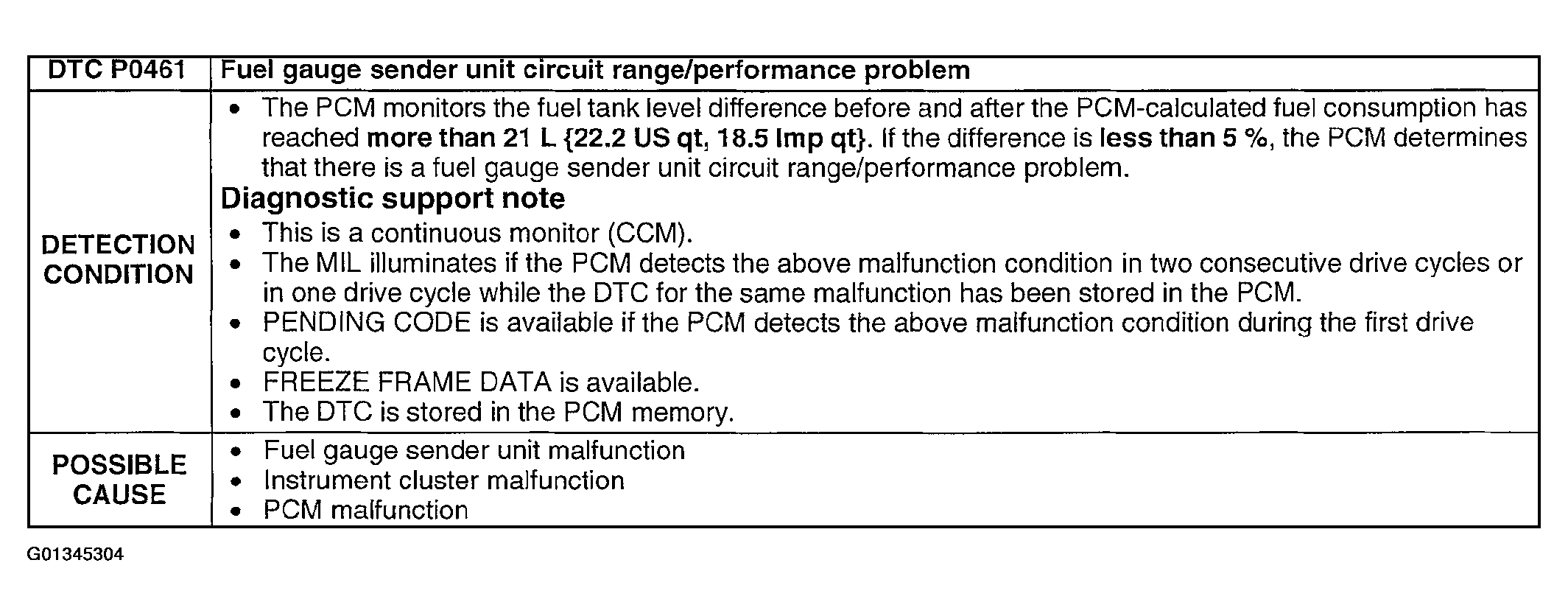

Fig 1: DTC P0461 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

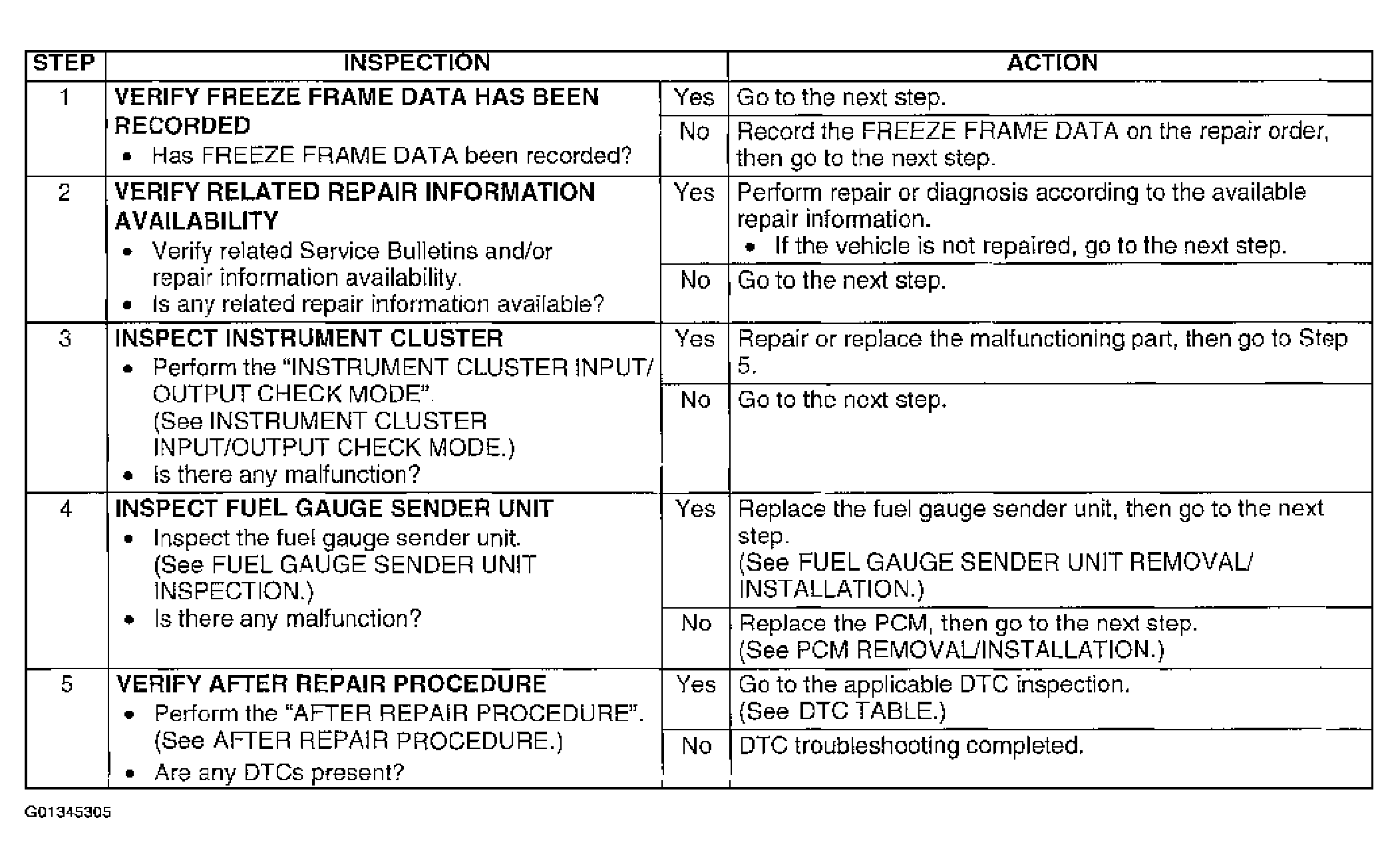

Fig 2: DTC P0461 Diagnostic Procedure Chart

Courtesy of MAZDA MOTORS CORP.
