DTC P2406: EVAP System Leak Detection Pump Sense Circuit Low

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

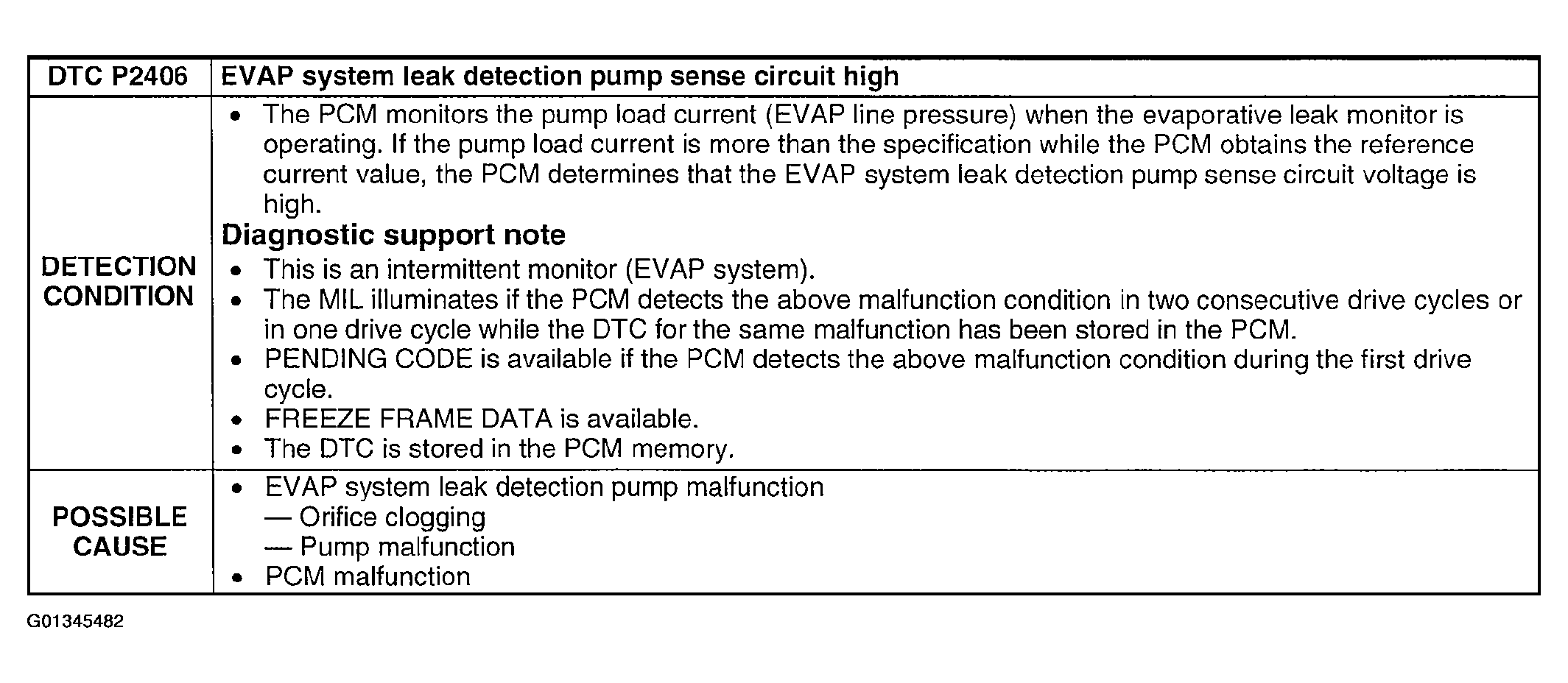

Fig 1: DTC P2406 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

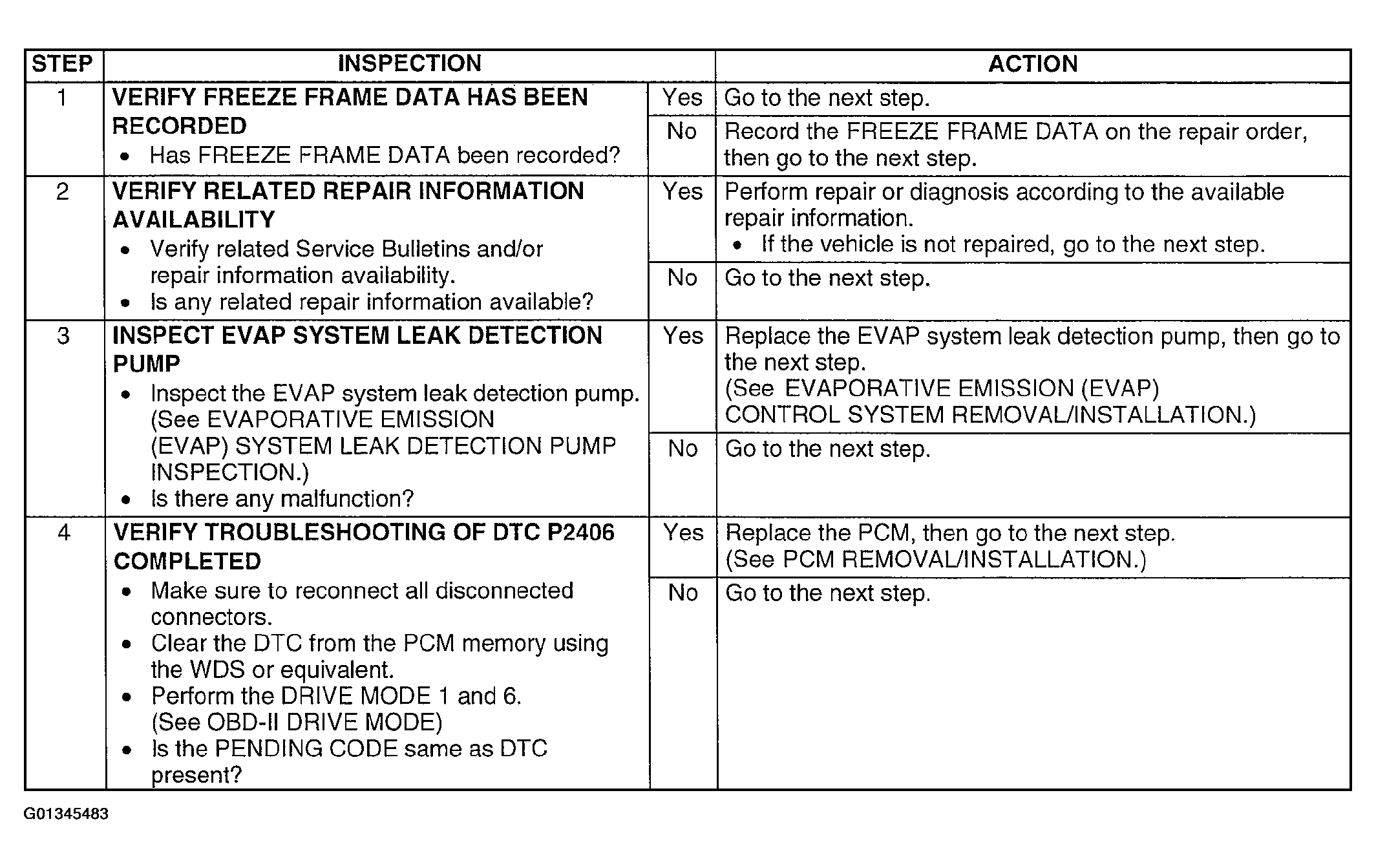

Fig 2: DTC P2406 Diagnostic Procedure Chart (Step 1-4)

Courtesy of MAZDA MOTORS CORP.

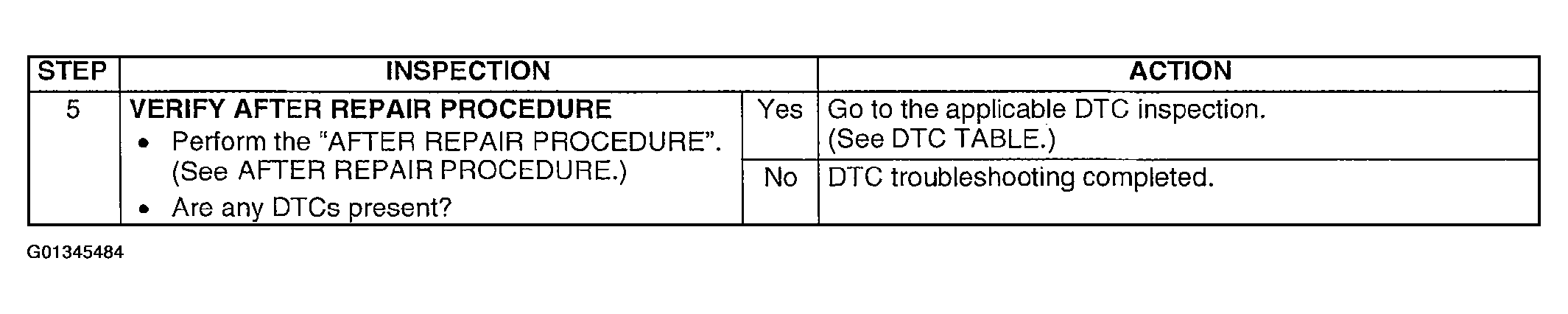

Fig 3: DTC P2406 Diagnostic Procedure Chart (Step 5)

Courtesy of MAZDA MOTORS CORP.
