Front Climate Control Unit Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

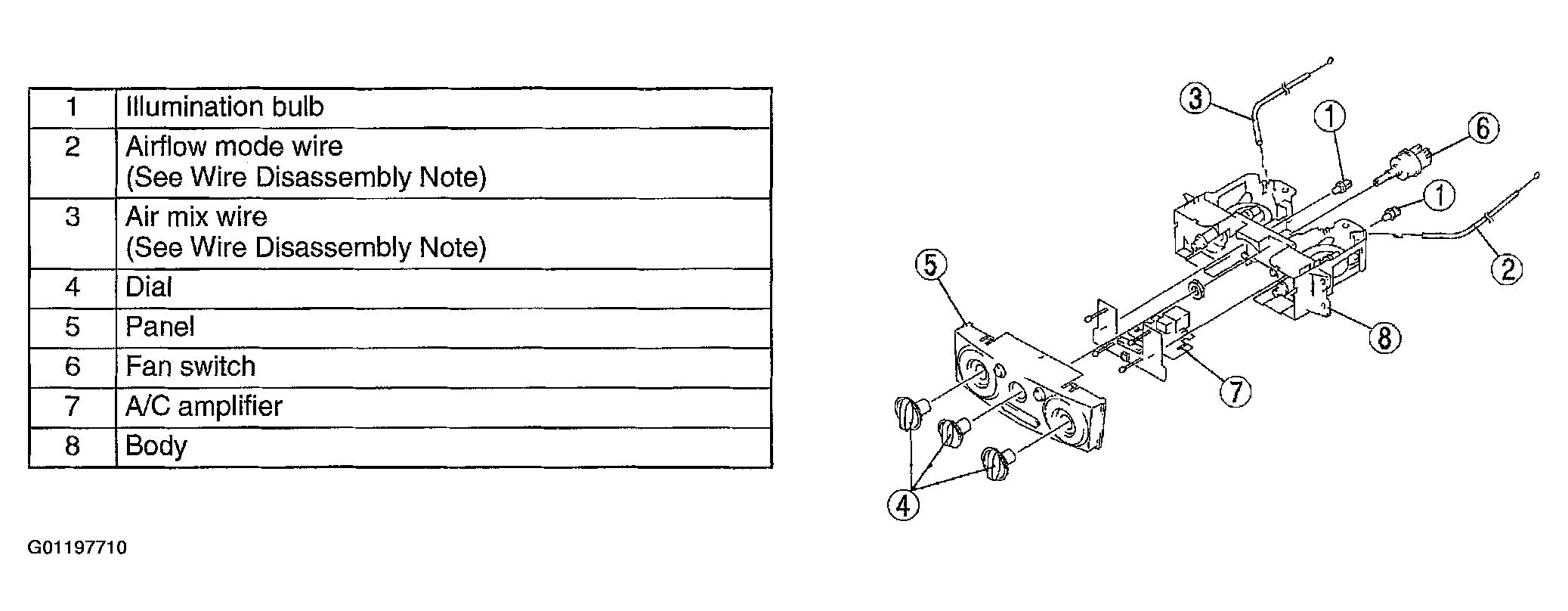

- Disassemble in the order indicated in the illustration.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
