Front Climate Control Unit Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front climate control unit to the center panel.
  2. Pass each wire through the following routes then connect to front A/C unit.
  3. Connect the front climate control unit connectors.
  4. Install the meter hood.
  5. Adjust the front climate control unit wire. See FRONT CLIMATE CONTROL UNIT WIRE ADJUSTMENT  .
  6. Connect the negative battery cable.

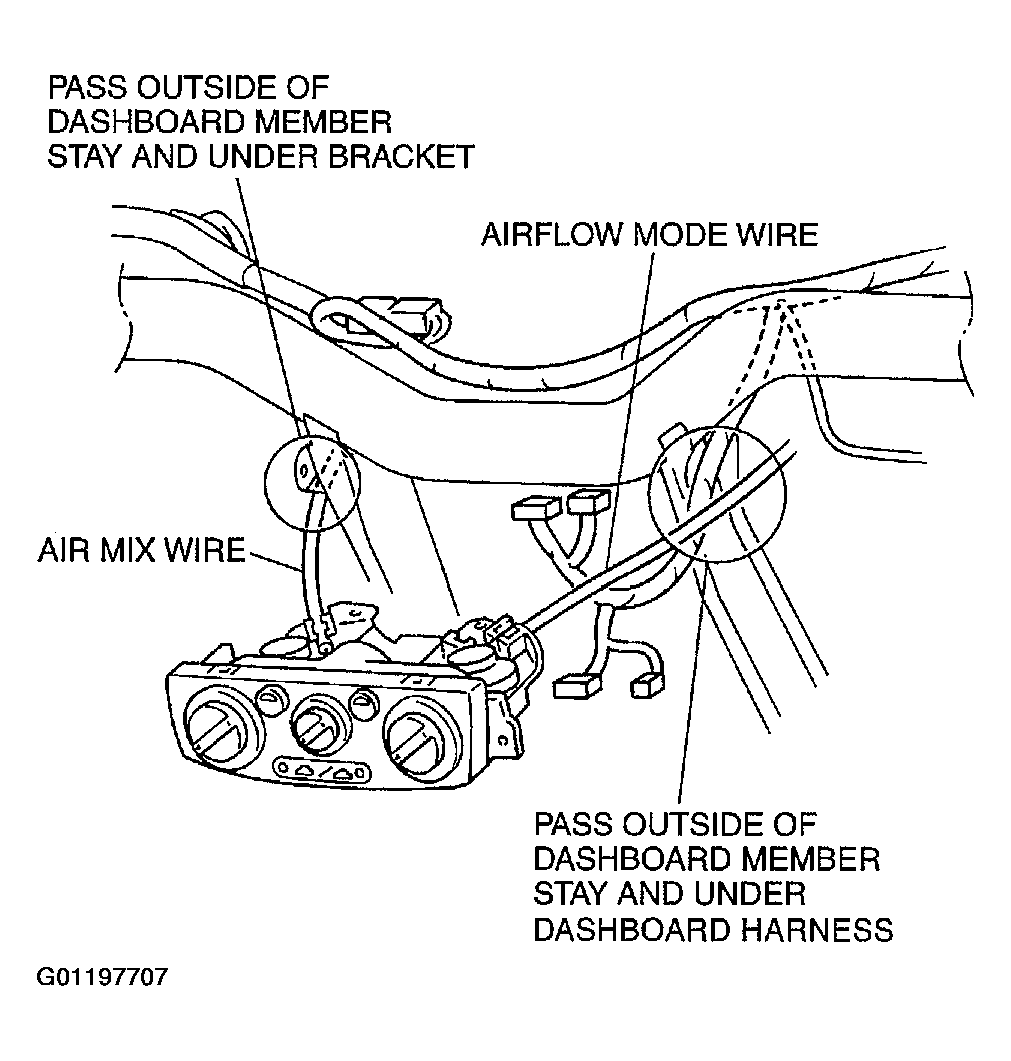

Fig 1: Installing Front Climate Control Unit
G01197707Courtesy of MAZDA MOTORS CORP.
