Upper Bearing Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply grease to a new upper bearing.
  2. Press in the upper bearing using the SST.

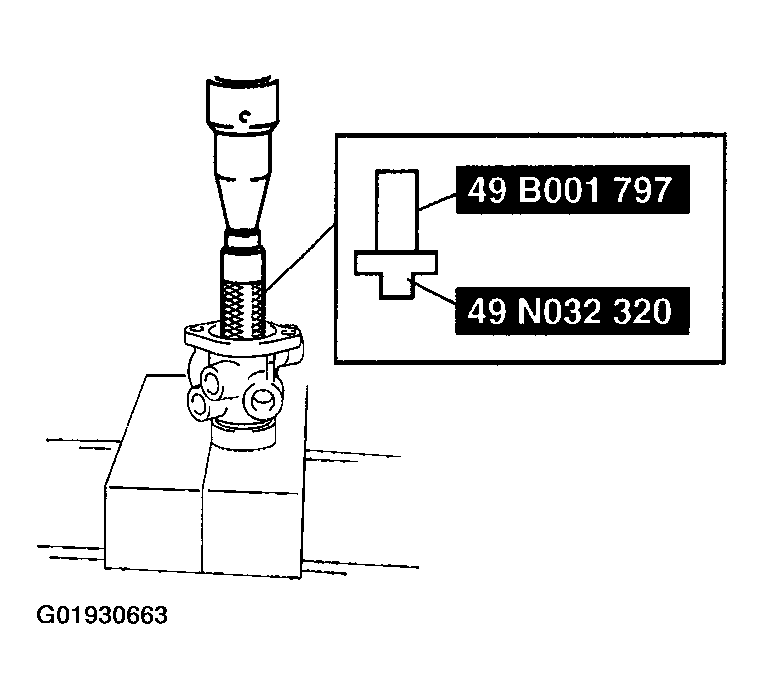

    Fig 1: Installing Upper Bearing
    G01930663Courtesy of MAZDA MOTORS CORP.
