Key Interlock Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the key interlock resistor connector.

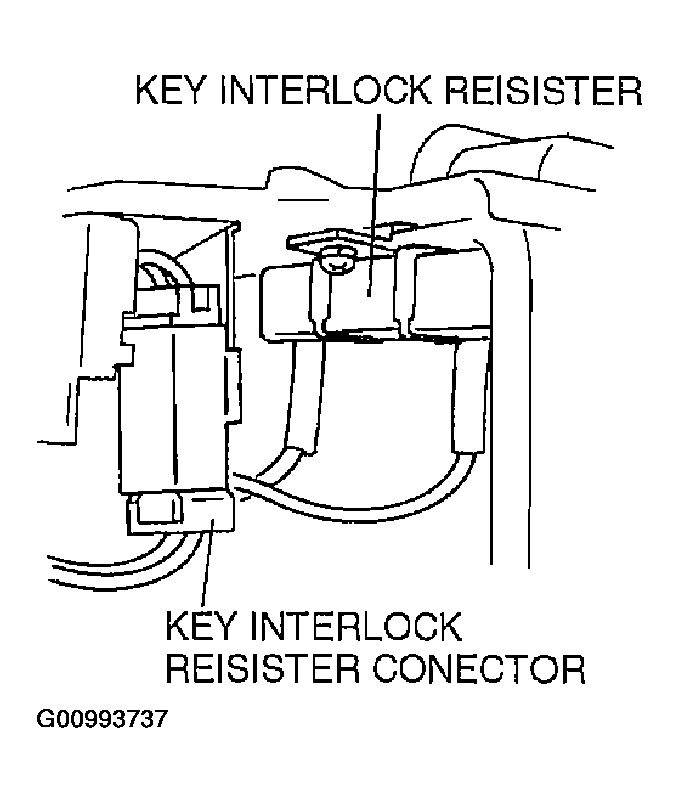

    Fig 1: Locating Key Interlock Resistor & Connector
    G00993737Courtesy of MAZDA MOTORS CORP.
  3. Remove the key interlock resistor.
  4. Install the key interlock resistor.
  5. Connect the key interlock resistor connector.
  6. Connect the negative battery cable.
