Diagnostic Procedure

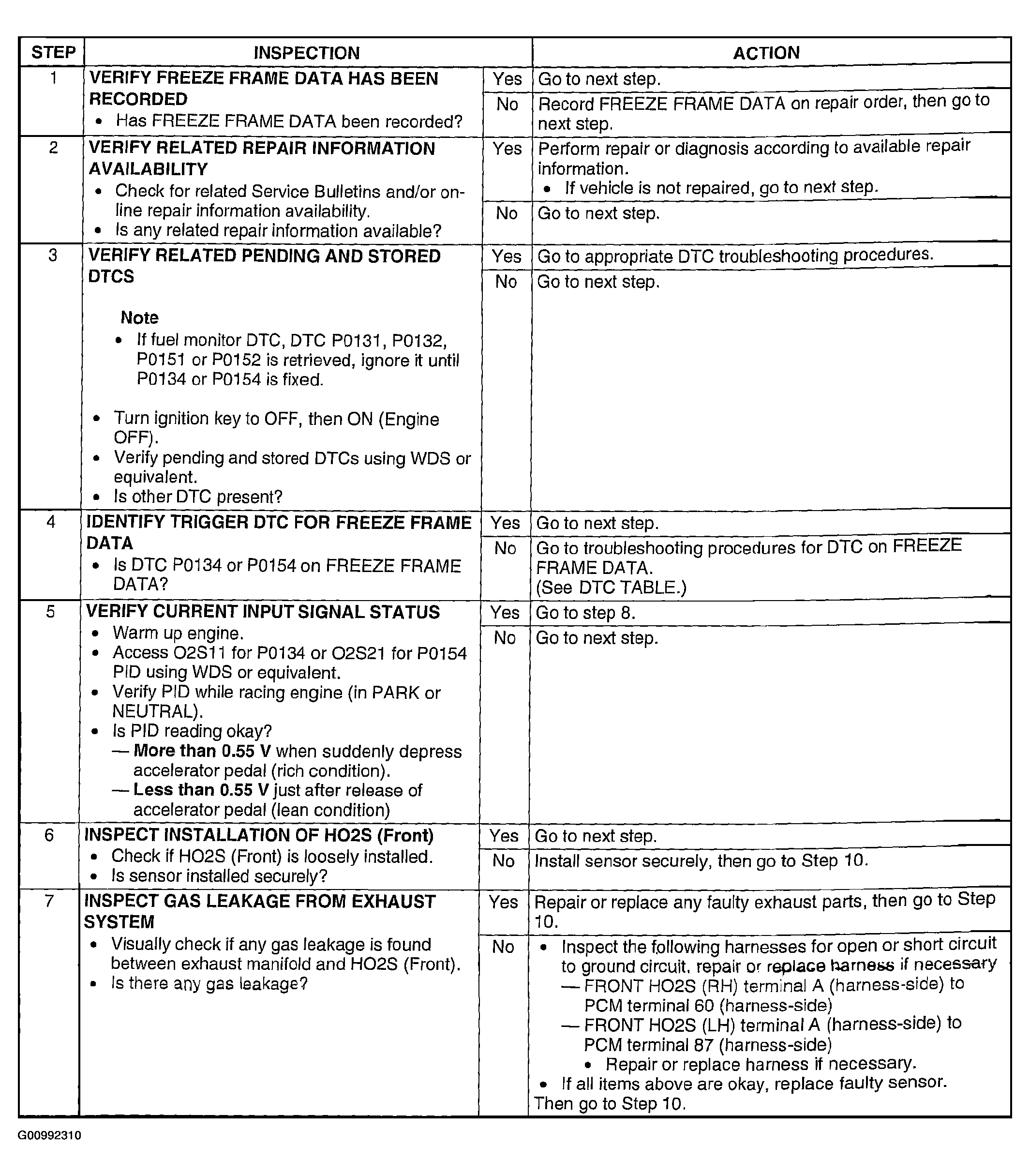

Fig 1: DTC P0134, P0154 Diagnostic Procedure Chart (Step 1-7)
G00992310Courtesy of MAZDA MOTORS CORP.

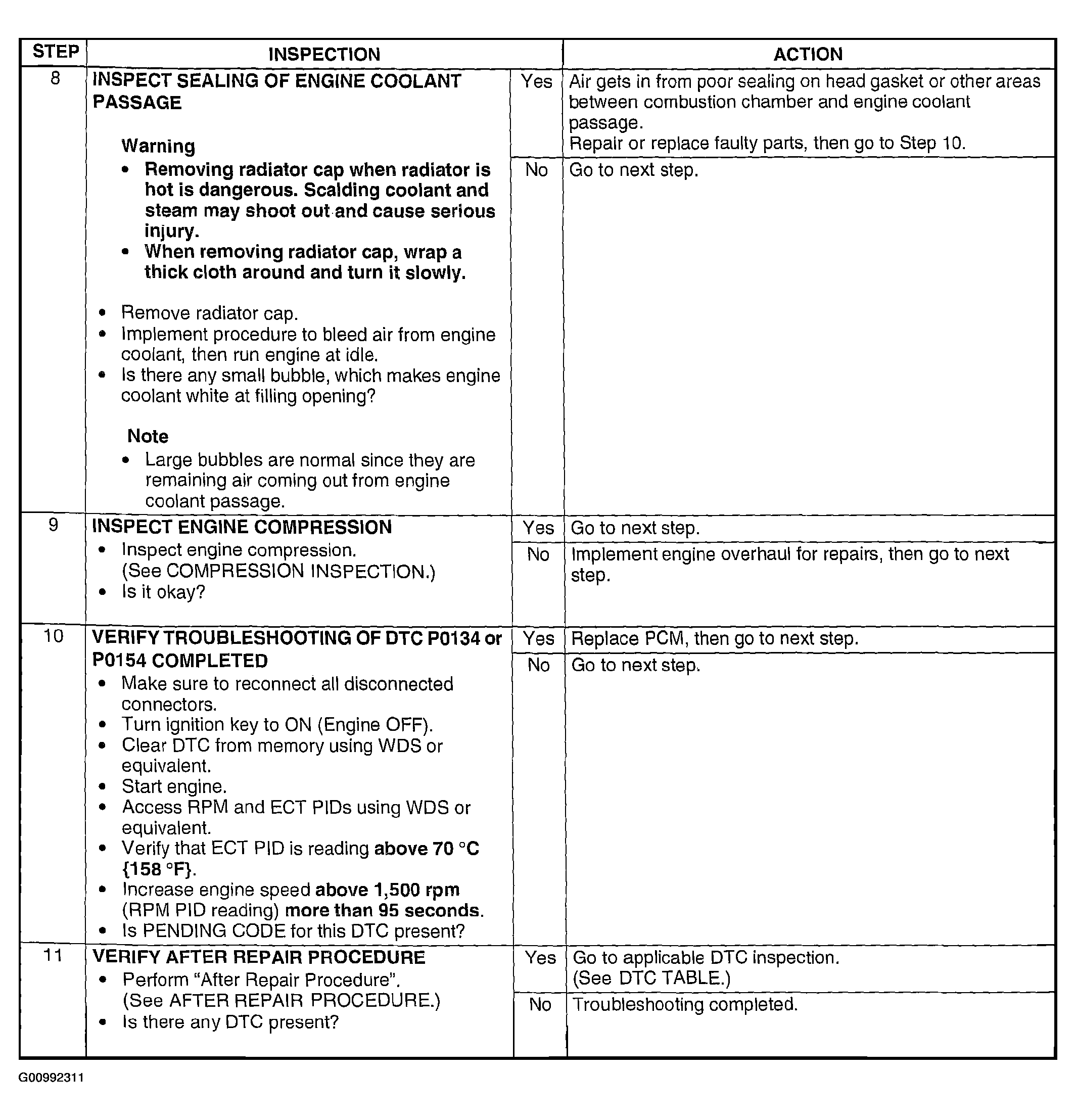

Fig 2: DTC P0134, P0154 Diagnostic Procedure Chart (Step 8-11)
G00992311Courtesy of MAZDA MOTORS CORP.
