DTC P0140, P0160: Ho2S (Rear, RH) Circuit No Activity Detected; Ho2S (Rear, LH) Circuit No Activity Detected: Notes

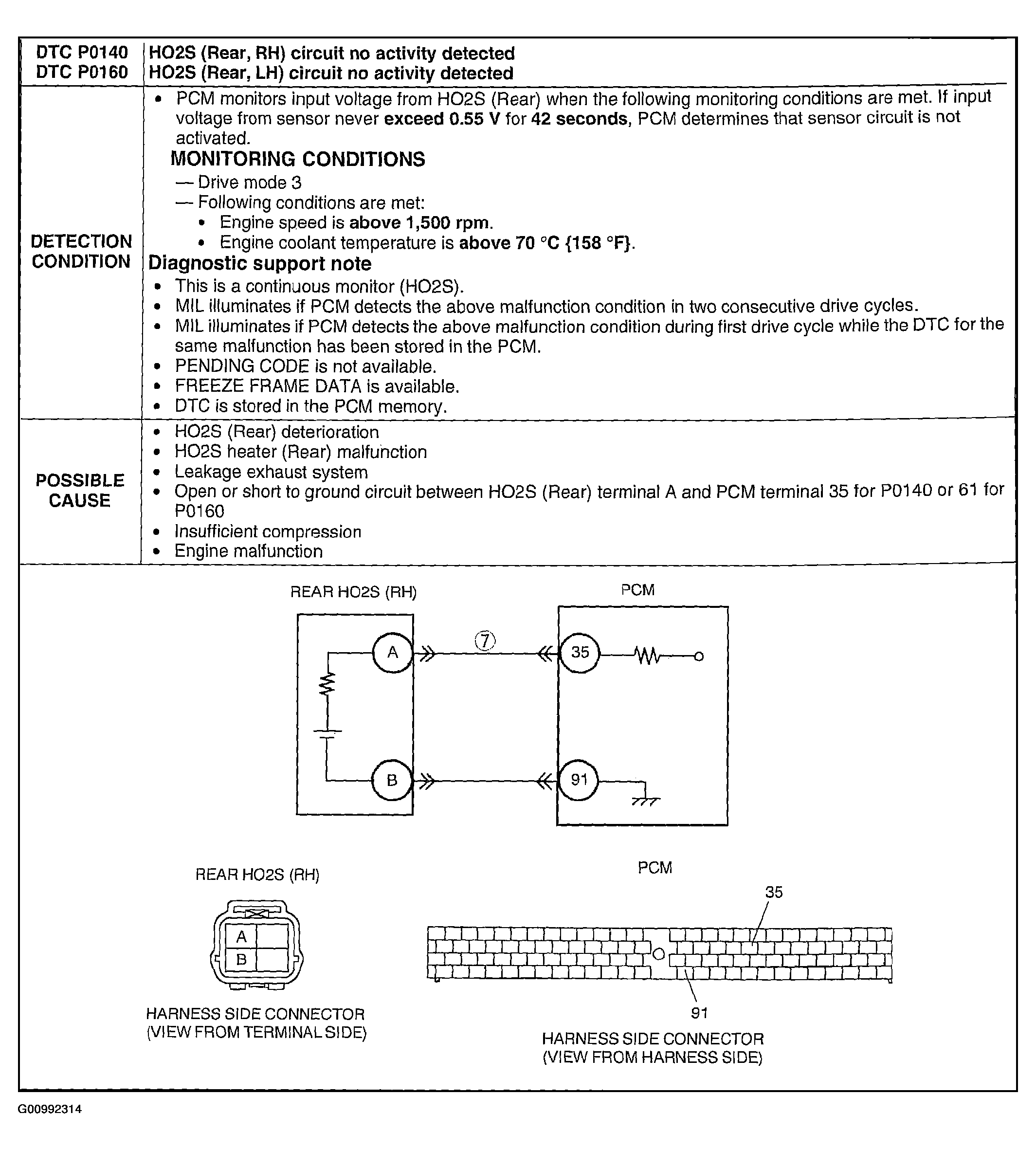

Fig 1: DTC P0140, P0160 Detection Condition & Possible Causes Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

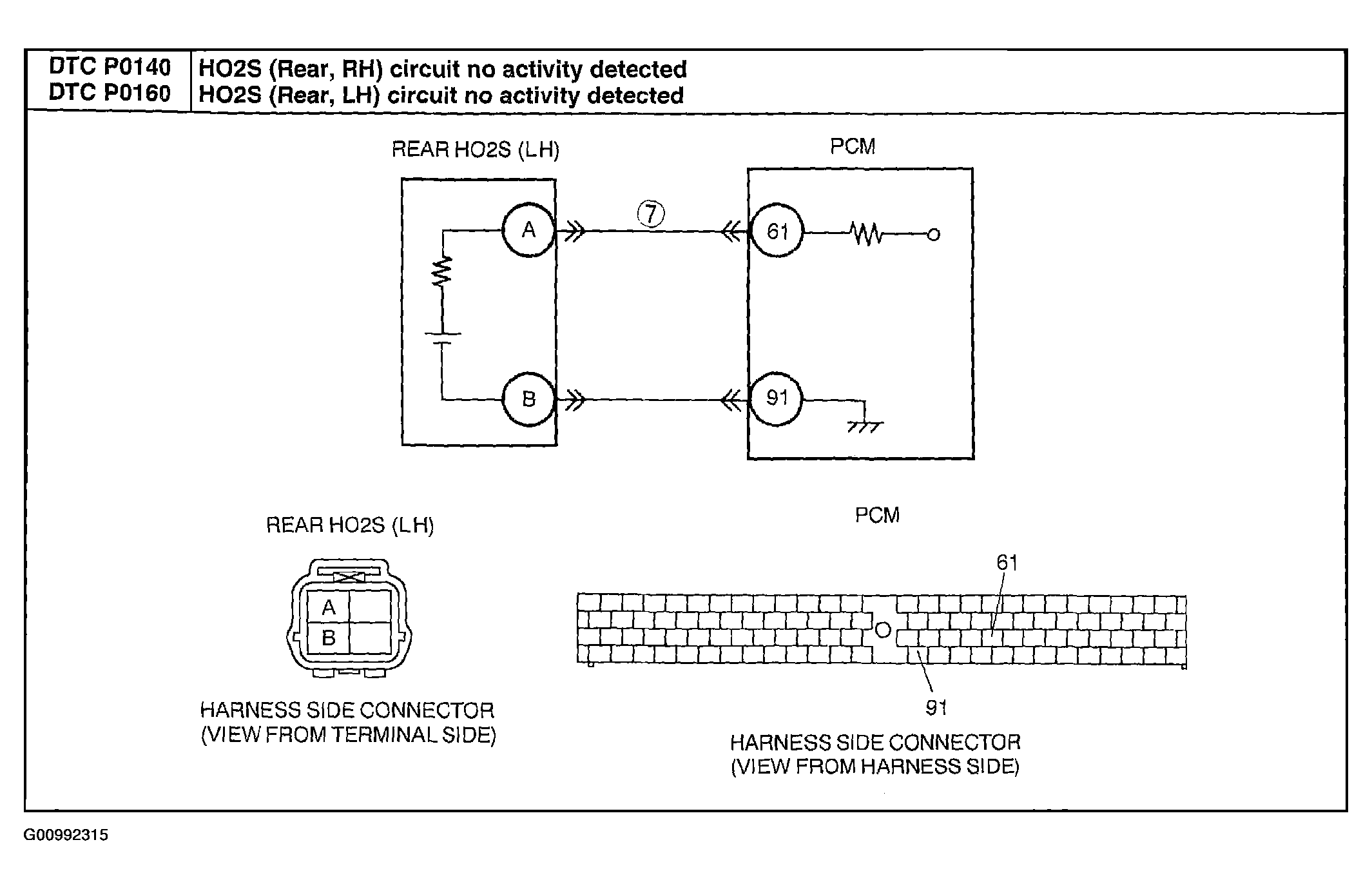

Fig 2: DTC P0140, P0160 Detection Condition & Possible Causes Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
