Easy Closure Control Module Connector End View

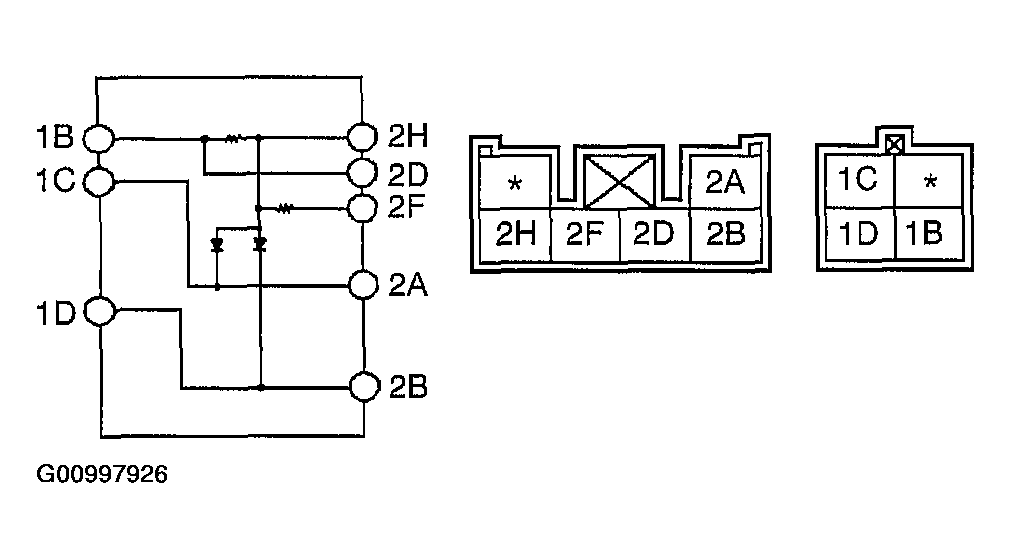

Fig 1: Easy Closure Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
