Engine SST

1: Mazda SST number

2: Global SST number

Fig 1: Crankshaft Damper Remover
G02564157Courtesy of MAZDA MOTORS CORP.

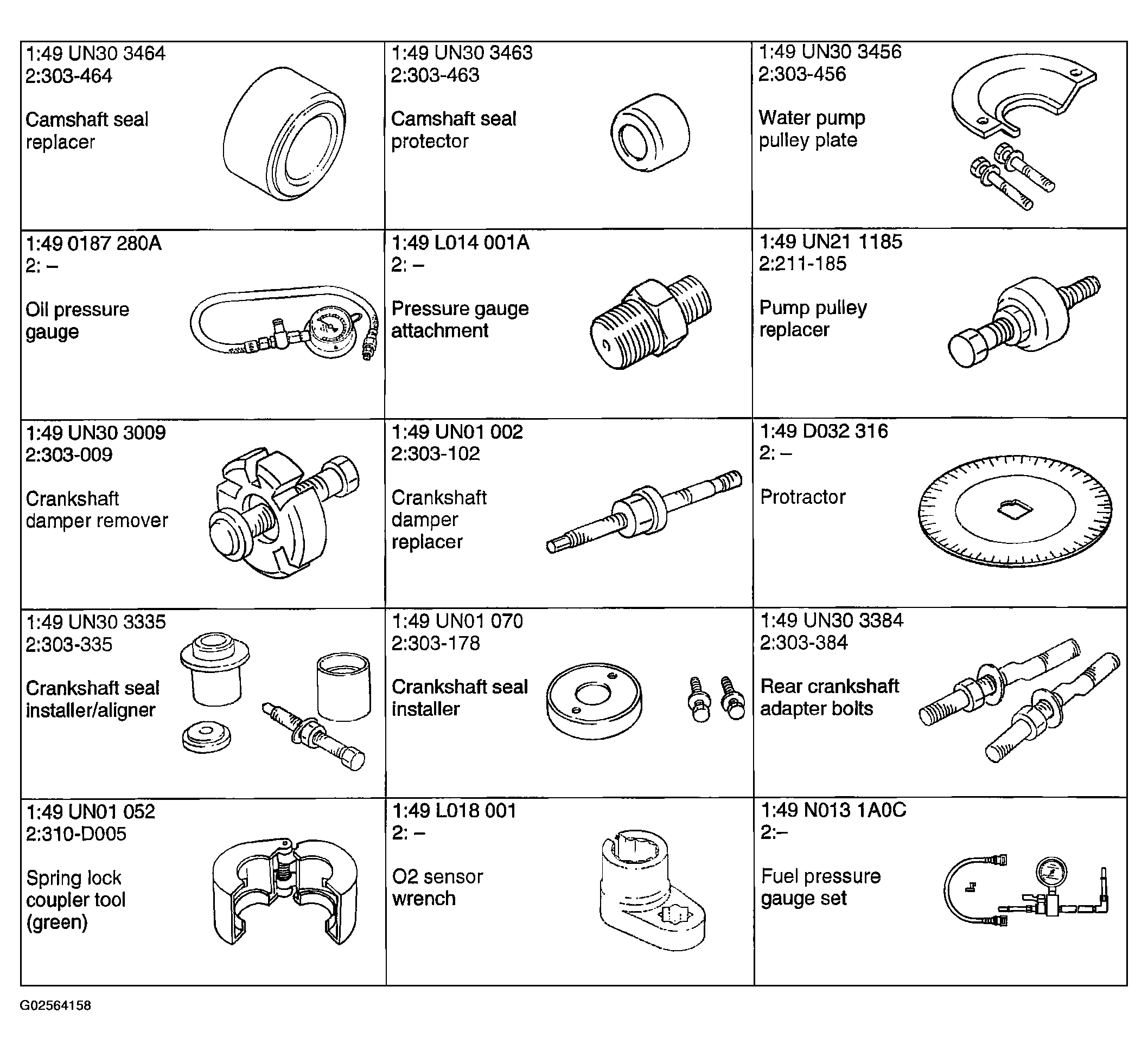

Fig 2: Special Tools (1 Of 2)
G02564158Courtesy of MAZDA MOTORS CORP.

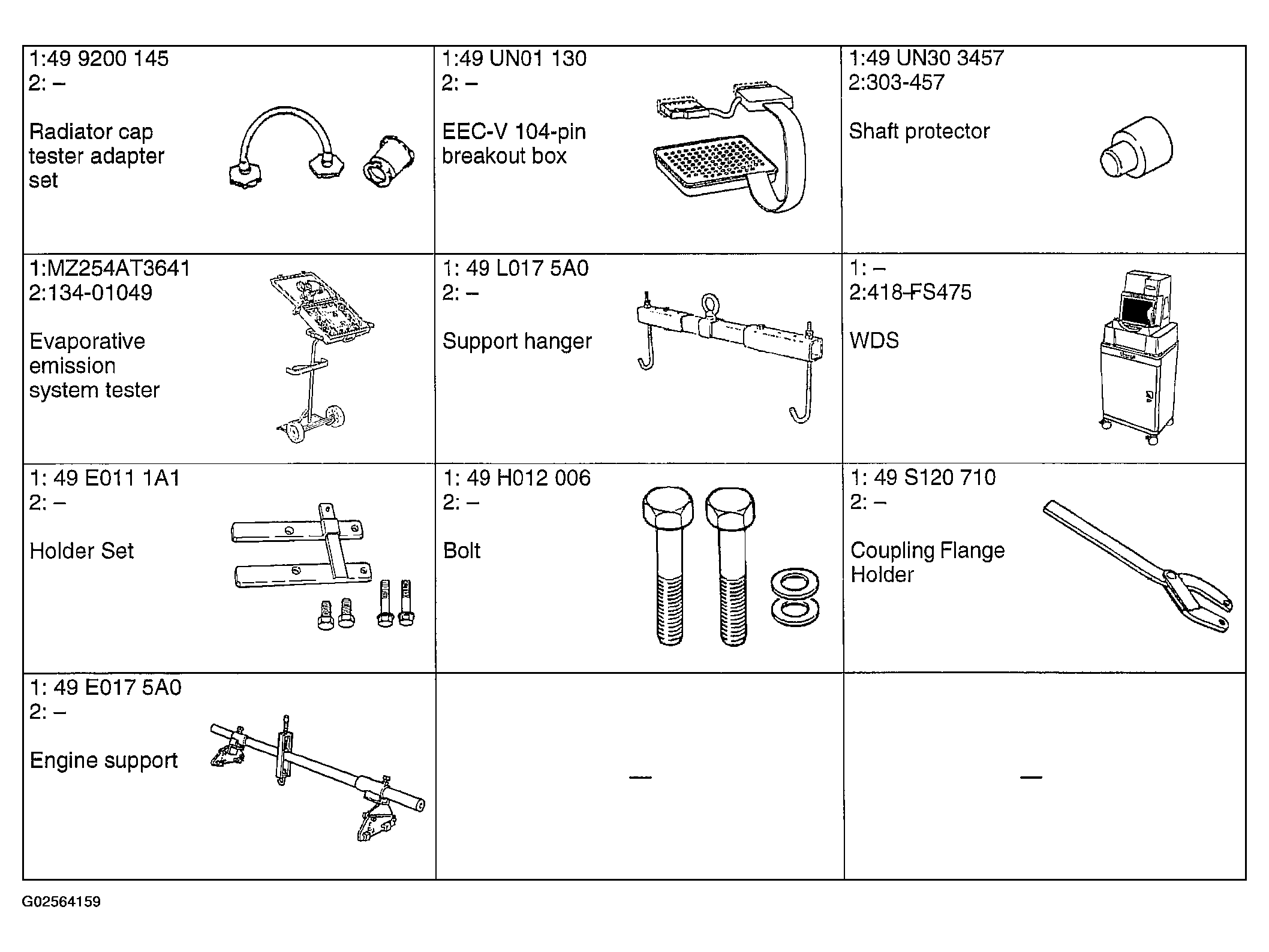

Fig 3: Special Tools (2 Of 2)
G02564159Courtesy of MAZDA MOTORS CORP.
