Section 17 (Generators & Regulators): Adjustments

WARNING: This page is about a different car, the 2001 Mazda Tribute, 2001 Mazda B4000, 2001 Mazda B3000, 2001 Mazda B2500, and 2001 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drive belt tension is regulated by automatic tensioner. Use illustration for proper routing. See Fig 1 through Fig 5 .

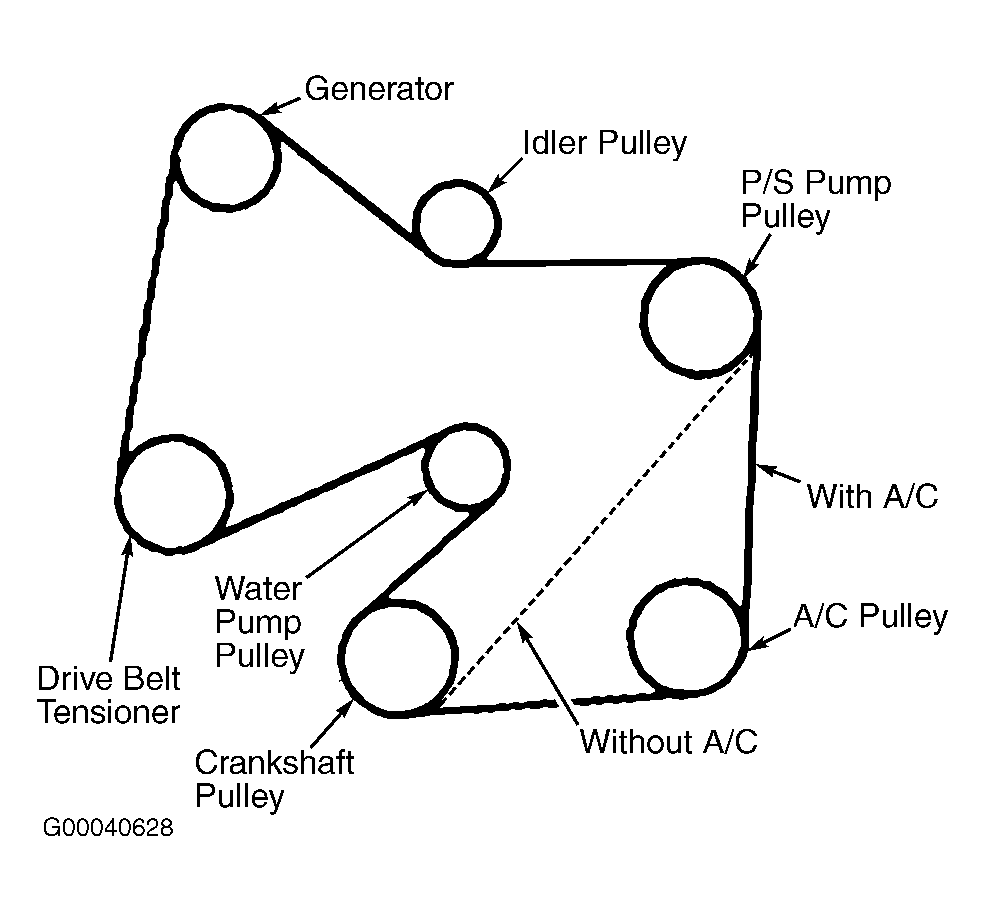

Fig 1: Checking Belt Routing & Tension (B2500)

Courtesy of FORD MOTOR CO.

Fig 2: Checking Belt Routing & Tension (B3000)

Courtesy of FORD MOTOR CO.

Fig 3: Checking Belt Routing & Tension (B4000)

Courtesy of FORD MOTOR CO.

Fig 4: Checking Belt Tension & Routing (2.0L Tribute)

Courtesy of FORD MOTOR CO.

Fig 5: Checking Belt Tension & Routing (3.0L Tribute)

Courtesy of FORD MOTOR CO.
