Engine Technical Data

NOTE: For ENGINE TECHNICAL DATA legend, see Fig 3 .

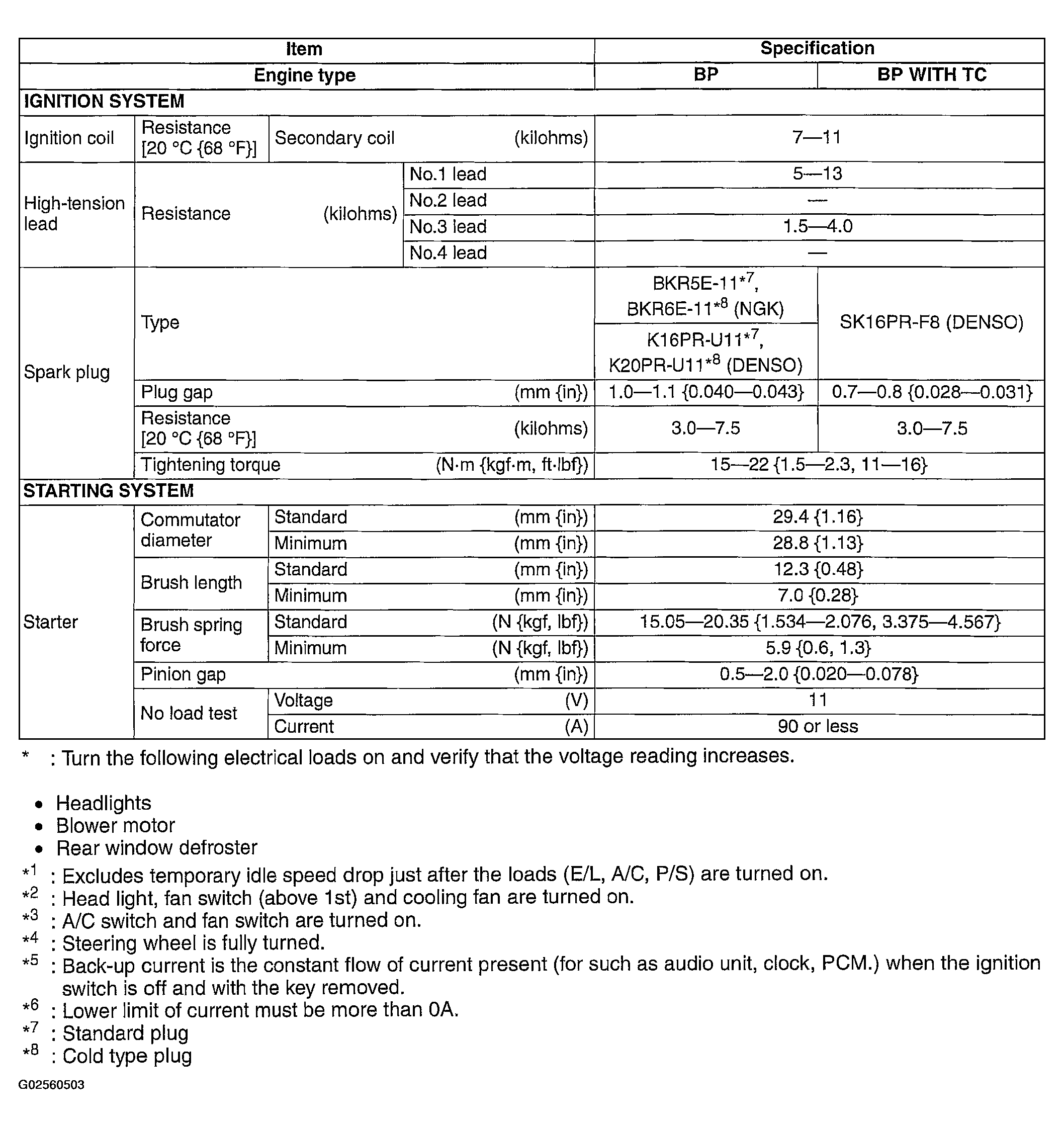

Fig 1: Engine Technical Data (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

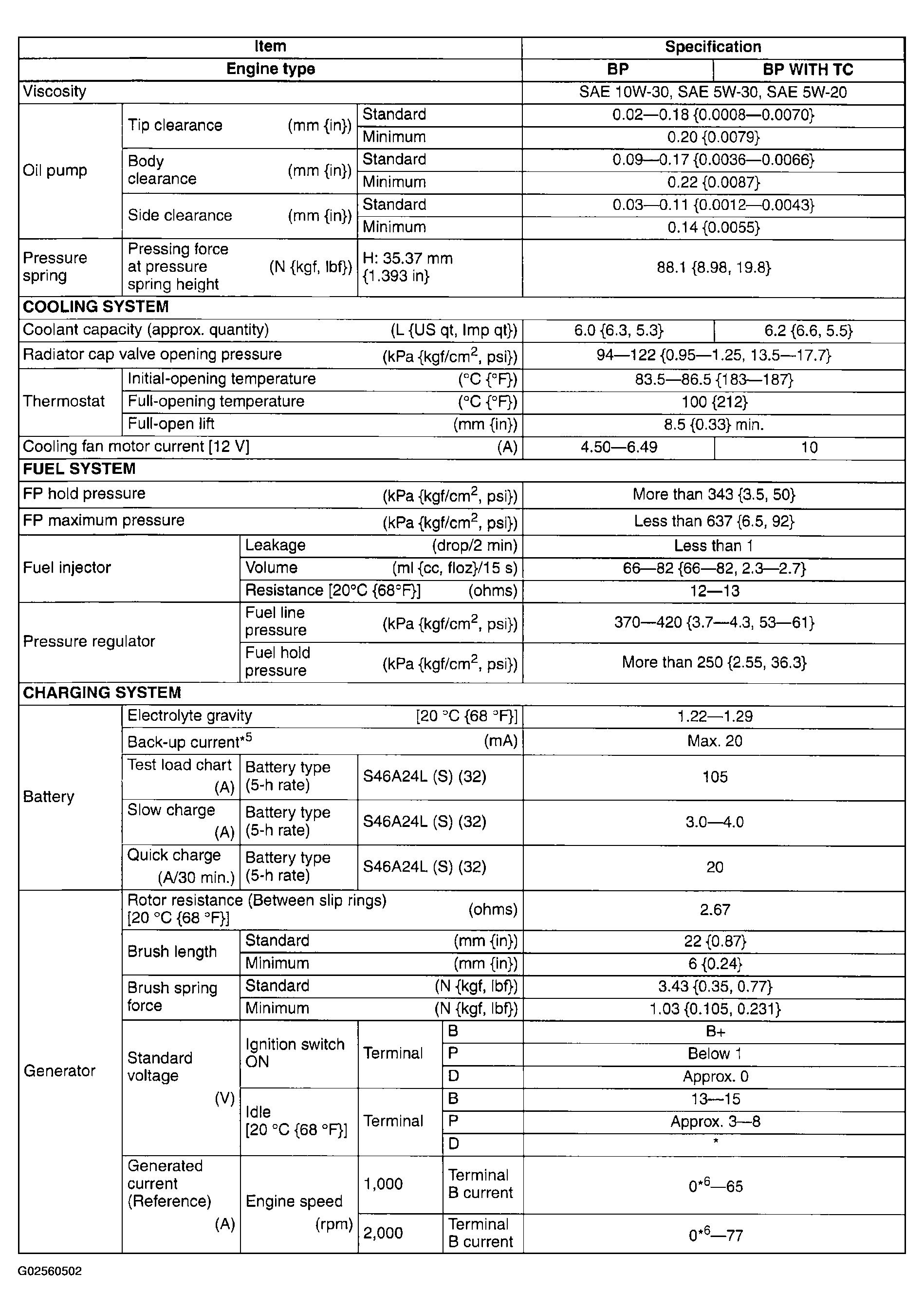

Fig 2: Engine Technical Data (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

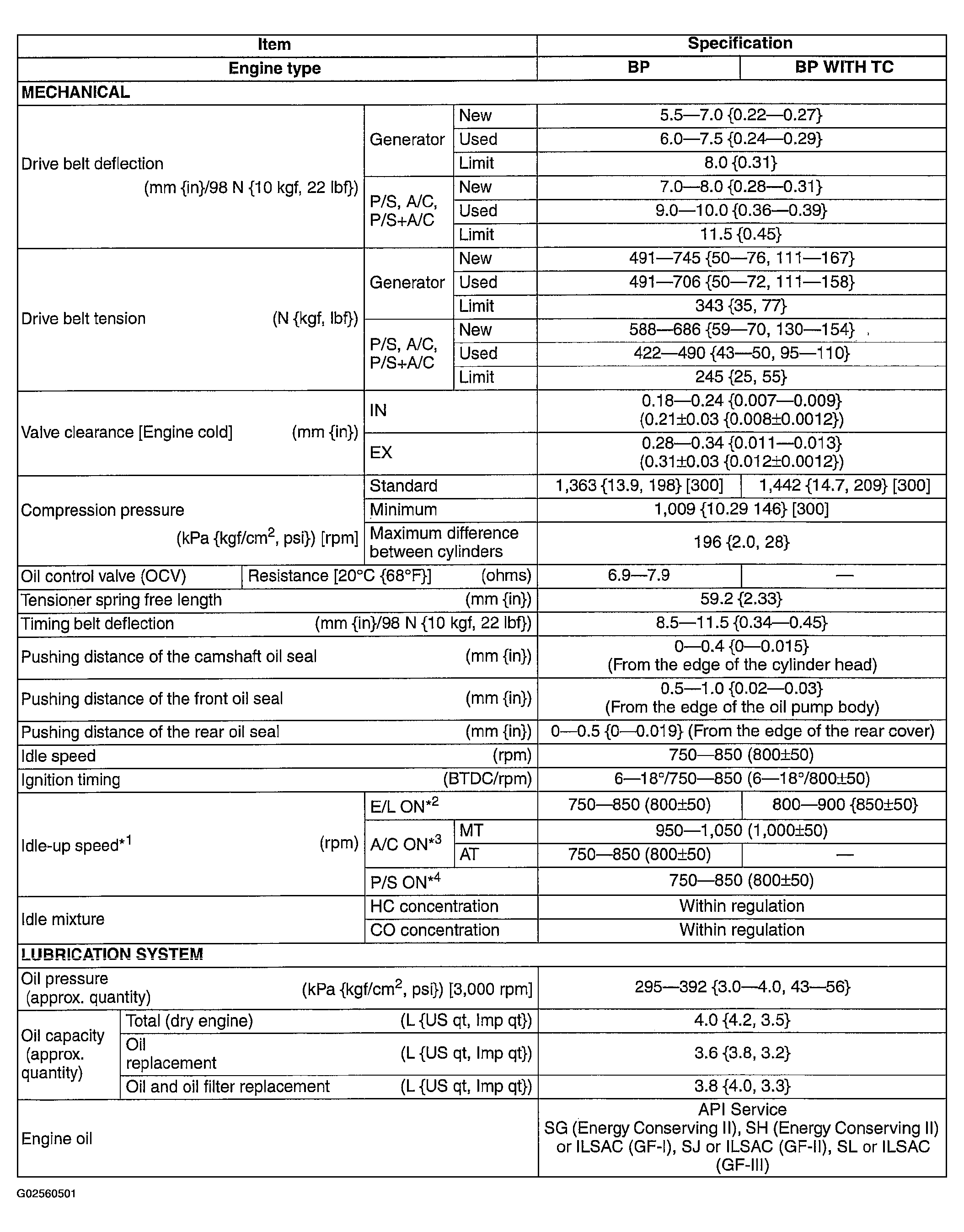

Fig 3: Engine Technical Data (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
