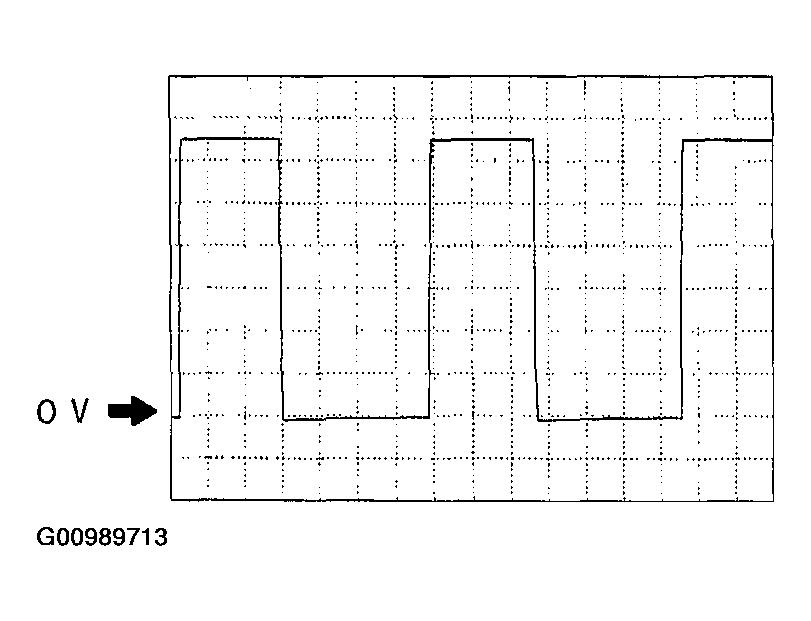

Oil Control Valve (OCV) Signal
- PCM terminal: 4D(+) <-> 4A(-)
- Oscilloscope setting: 2.0 V/DIV (Y), 0.5 ms/DIV (X), DC range
- Vehicle condition: Idling after warm-up (no electrical load)
Courtesy of MAZDA MOTORS CORP.
