DTC P0012: [BP] CMP - Timing Over-Retarded
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0012: [BP] CMP - Timing Over-Retarded: Notes

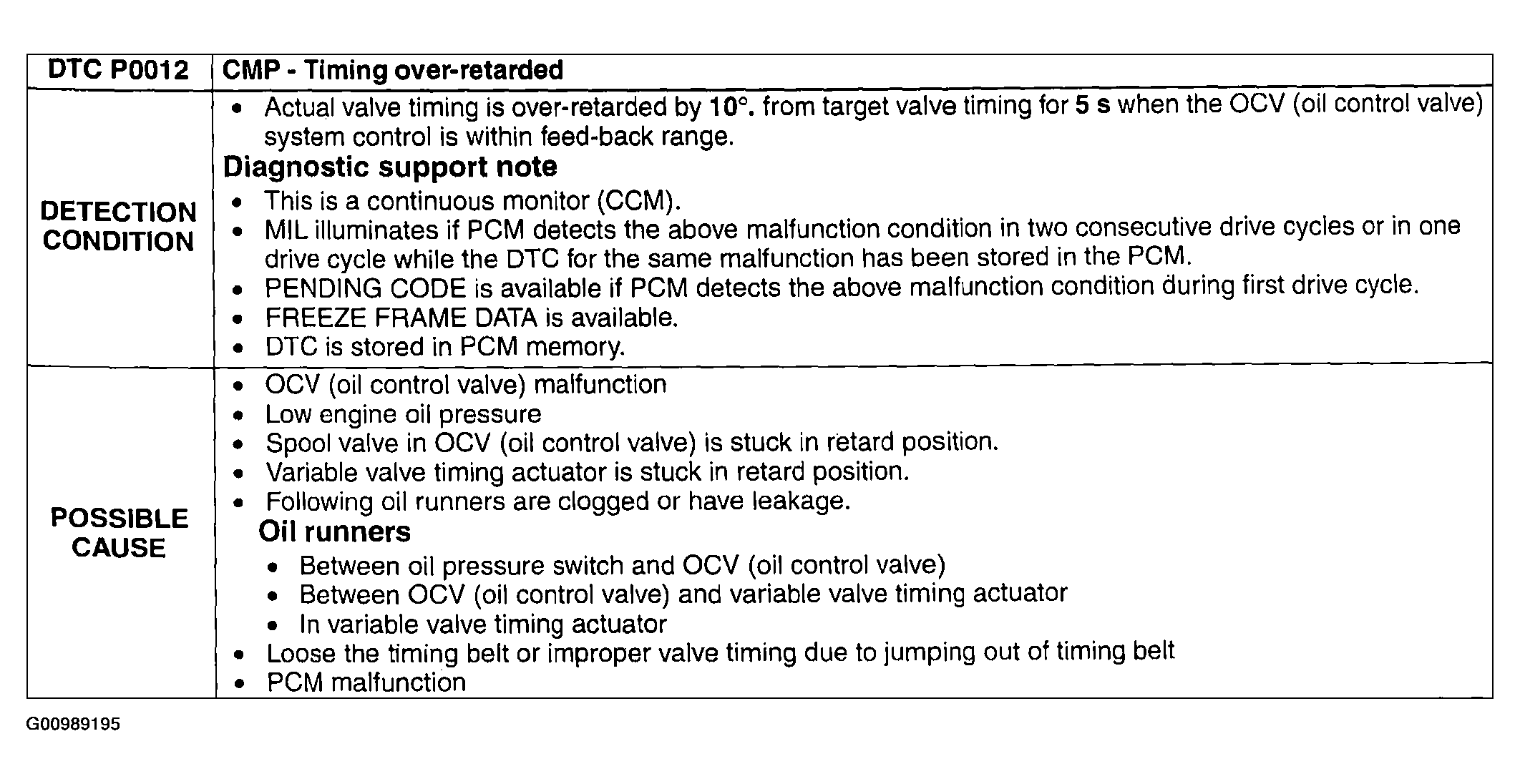

Fig 1: Possible Causes - DTC P0012 [BP]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
