DTC P0101: MAF Circuit Range/Performance Problem
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

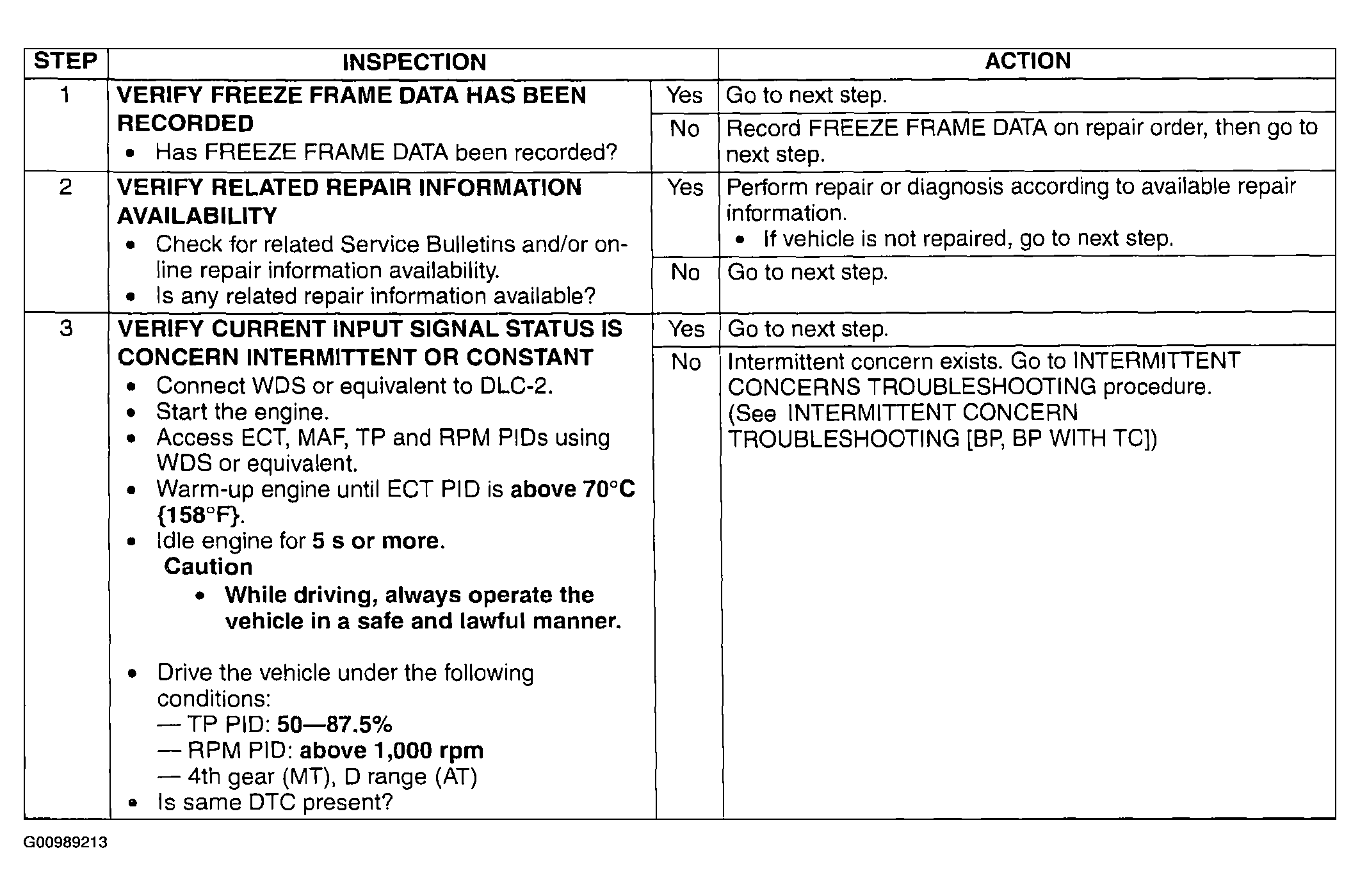

Fig 1: Diagnostic Procedure - DTC P0101 [BP, BP With TC] (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

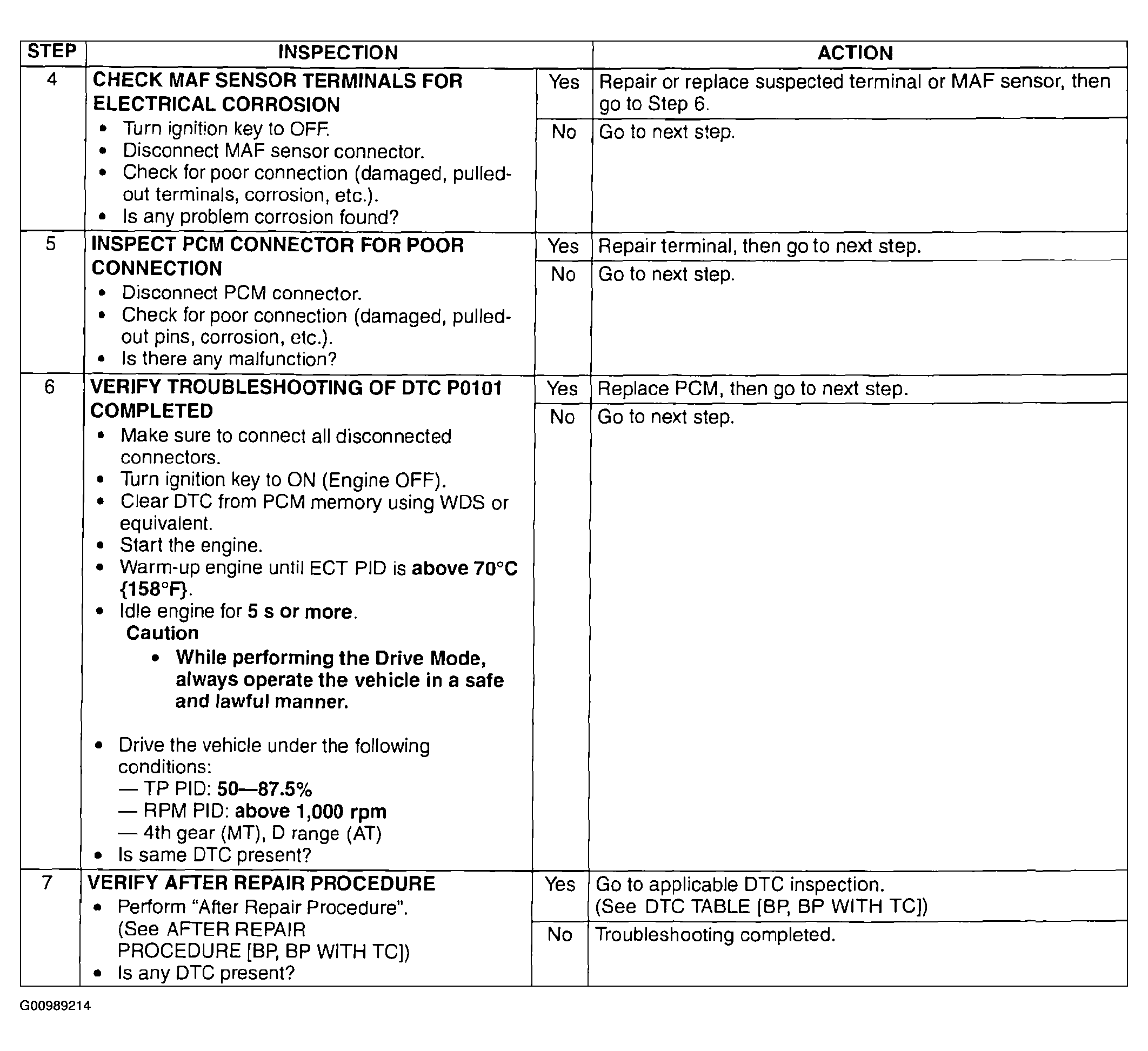

Fig 2: Diagnostic Procedure - DTC P0101 [BP, BP With TC] (Steps 4-7)
Courtesy of MAZDA MOTORS CORP.
