Diagnostic Procedure

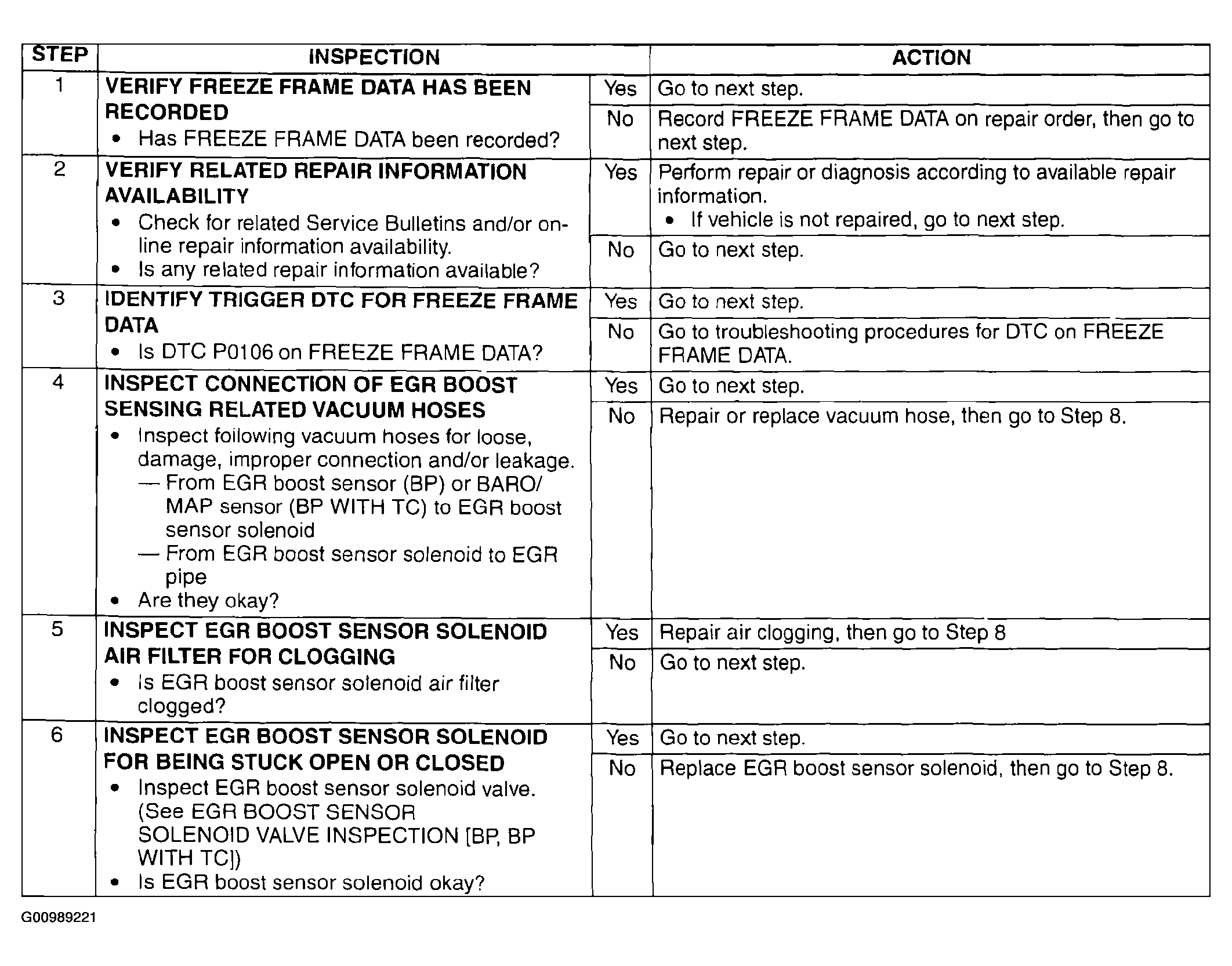

Fig 1: Diagnostic Procedure - DTC P0106 [BP, BP With TC] (Steps 1-6)
G00989221Courtesy of MAZDA MOTORS CORP.

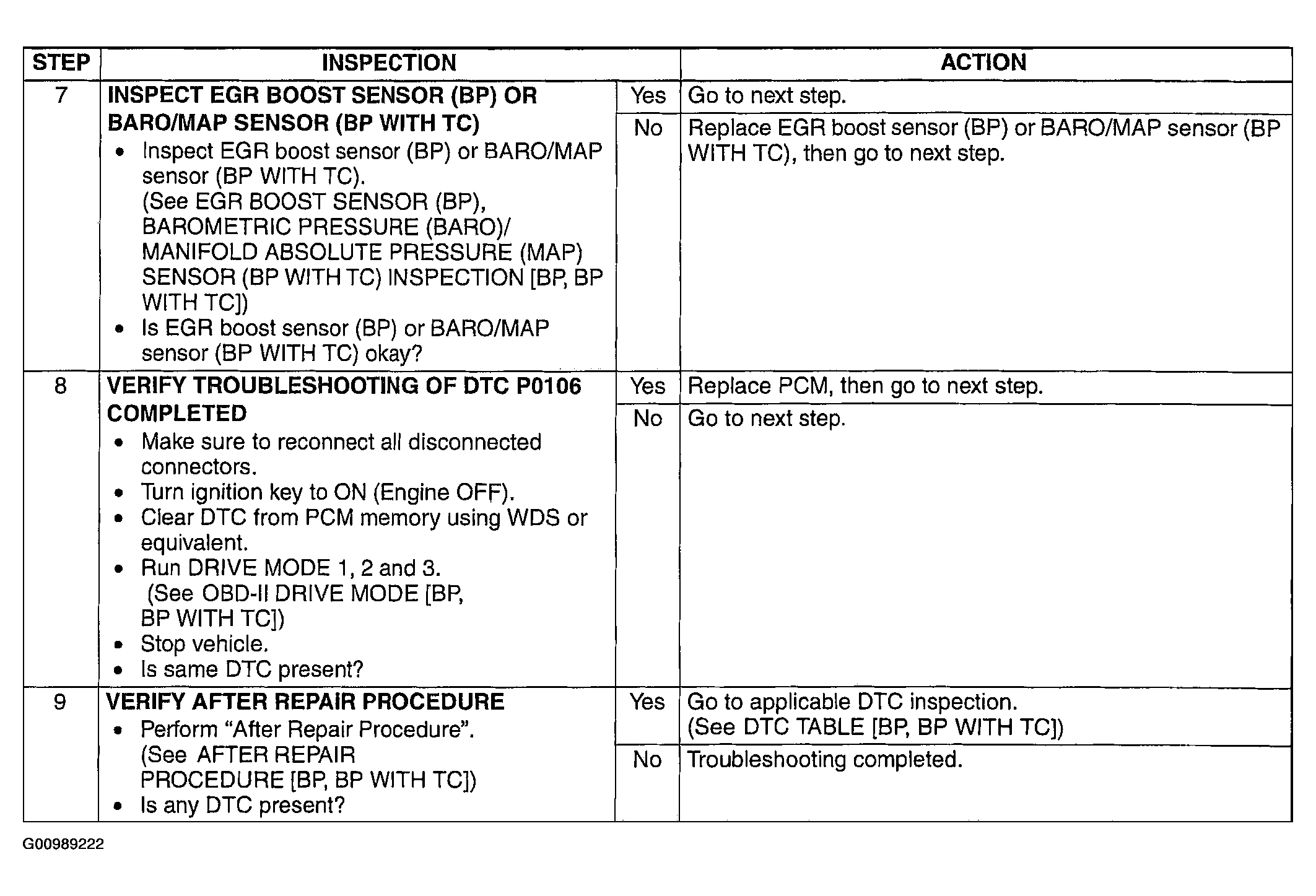

Fig 2: Diagnostic Procedure - DTC P0106 [BP, BP With TC] (Steps 7-9)
G00989222Courtesy of MAZDA MOTORS CORP.
