Diagnostic Procedure

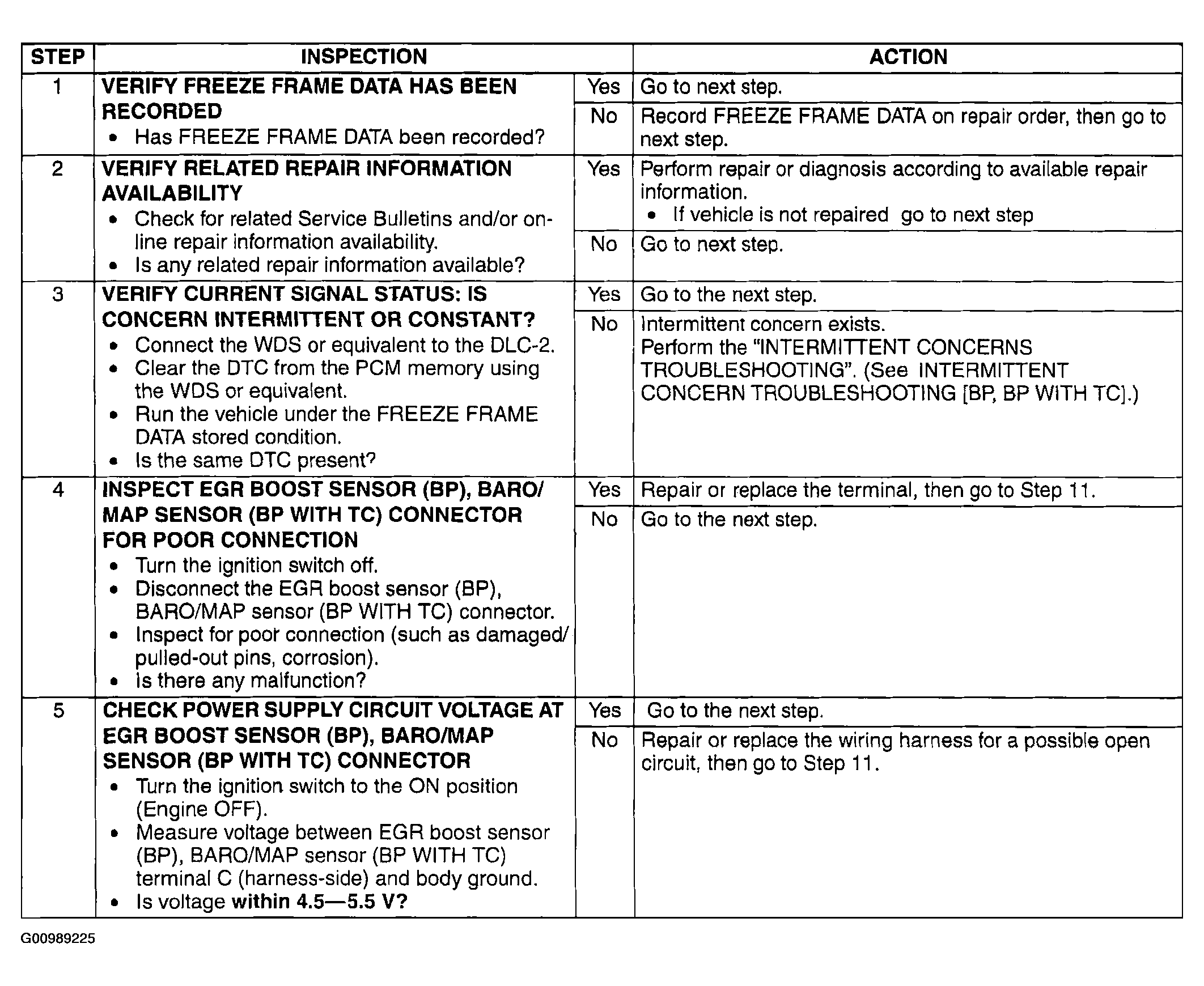

Fig 1: Diagnostic Procedure - DTC P0107 [BP, BP With TC] (Steps 1-5)
G00989225Courtesy of MAZDA MOTORS CORP.

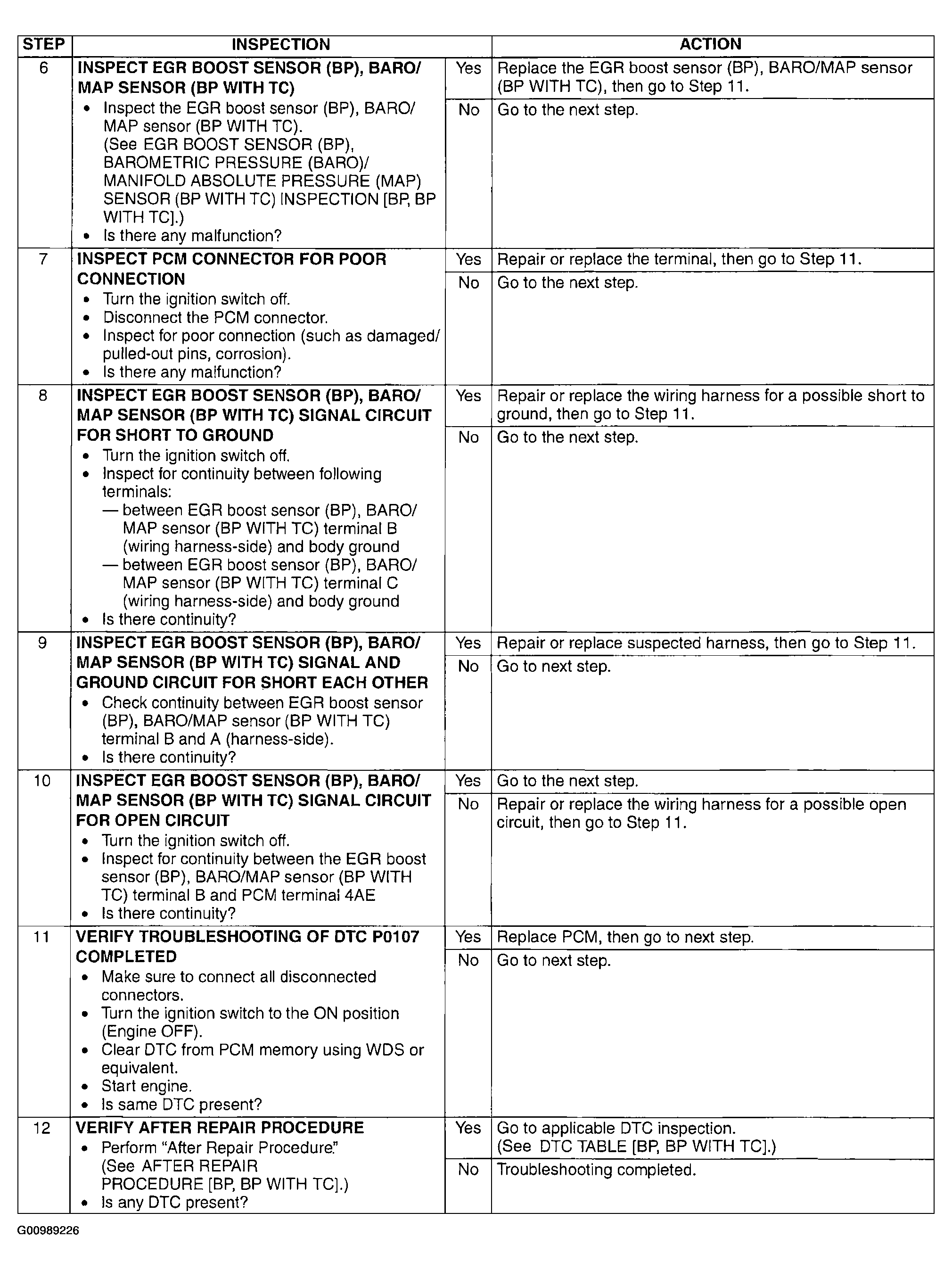

Fig 2: Diagnostic Procedure - DTC P0107 [BP, BP With TC] (Steps 6-12)
G00989226Courtesy of MAZDA MOTORS CORP.
