DTC P0108: [BP, BP With TC] BARO Circuit High Input (BP); BARO/Map Circuit High Input (BP With TC)
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

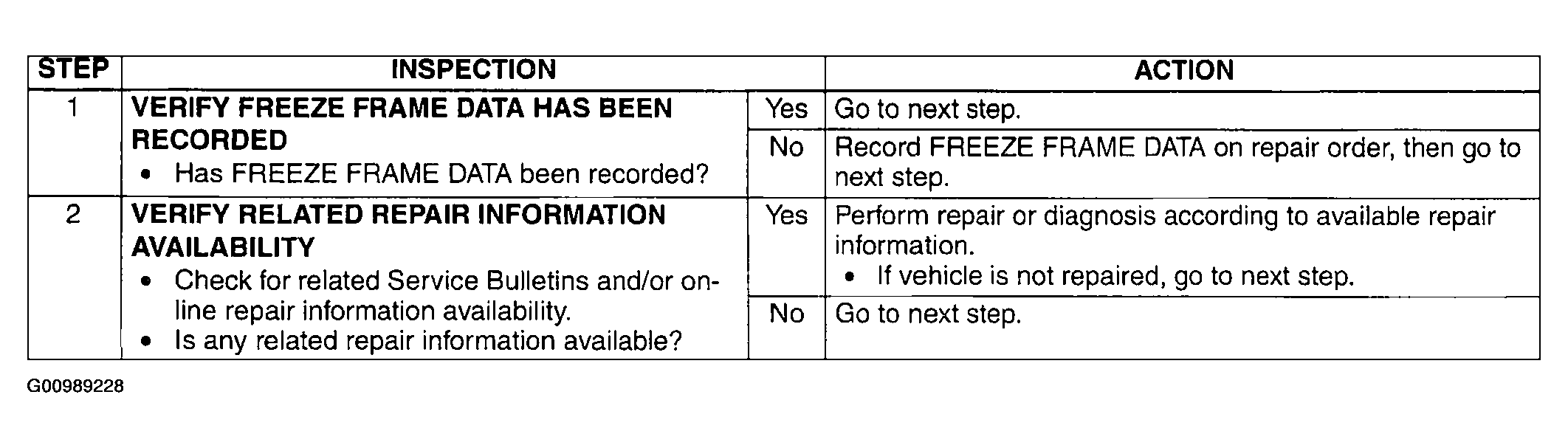

Fig 1: Diagnostic Procedure - DTC P0108 [BP, BP With TC] (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

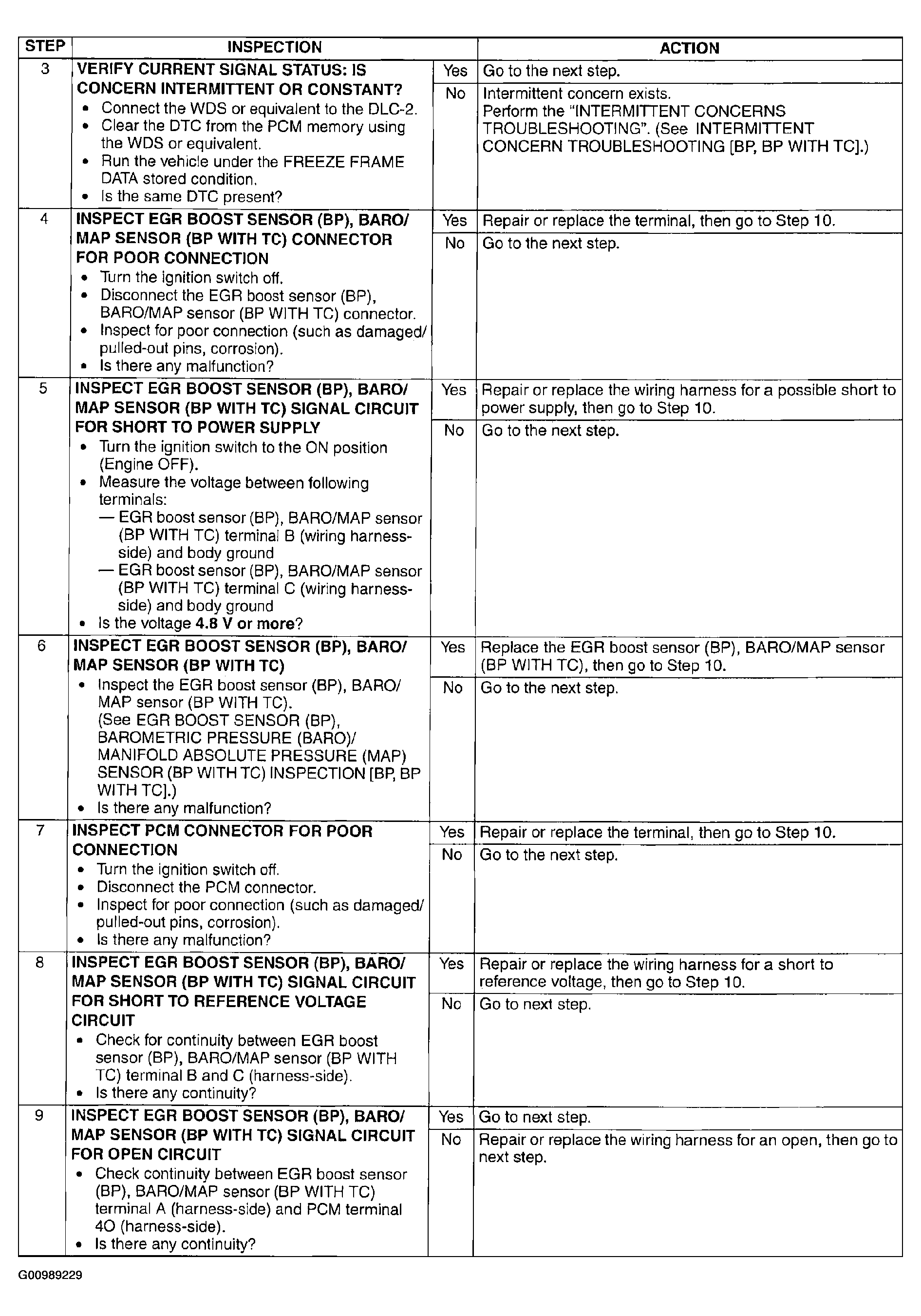

Fig 2: Diagnostic Procedure - DTC P0108 [BP, BP With TC] (Steps 3-9)
Courtesy of MAZDA MOTORS CORP.

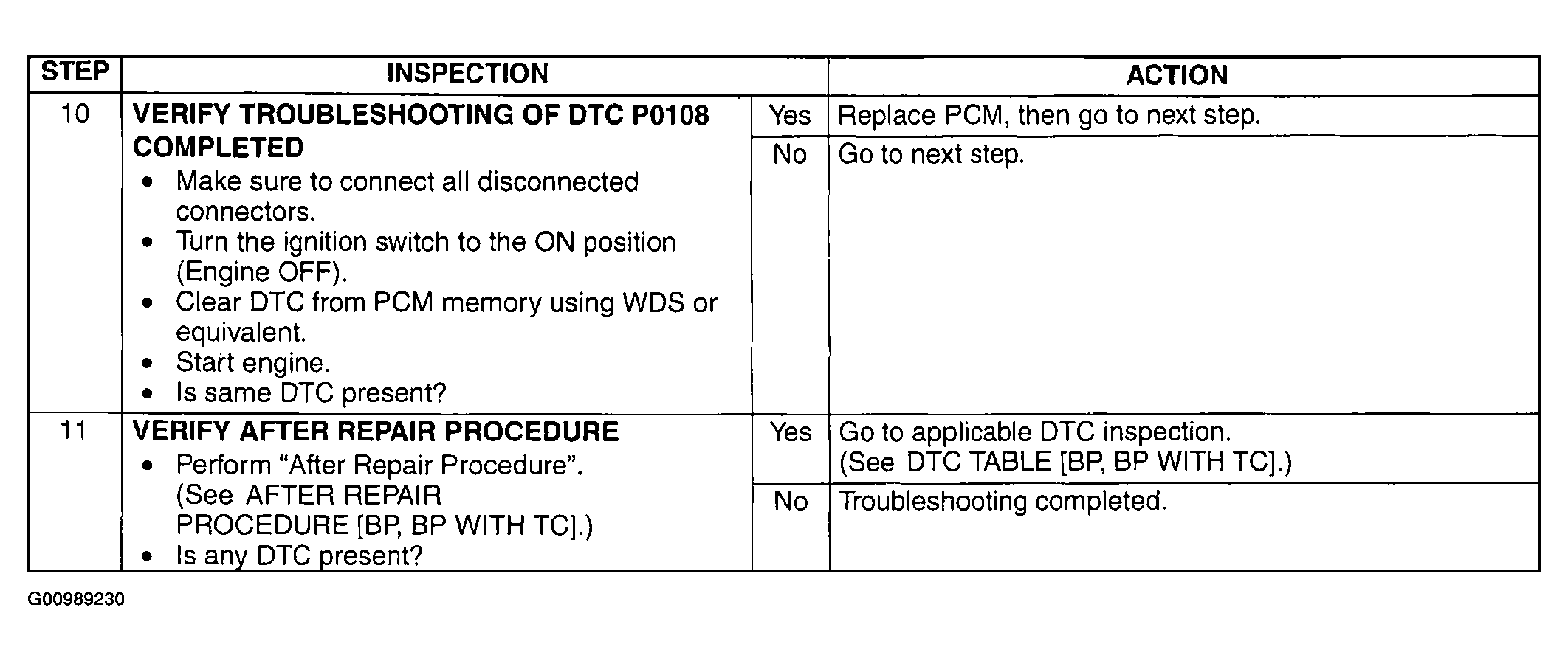

Fig 3: Diagnostic Procedure - DTC P0108 [BP, BP With TC] (Steps 10-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
