Diagnostic Procedure

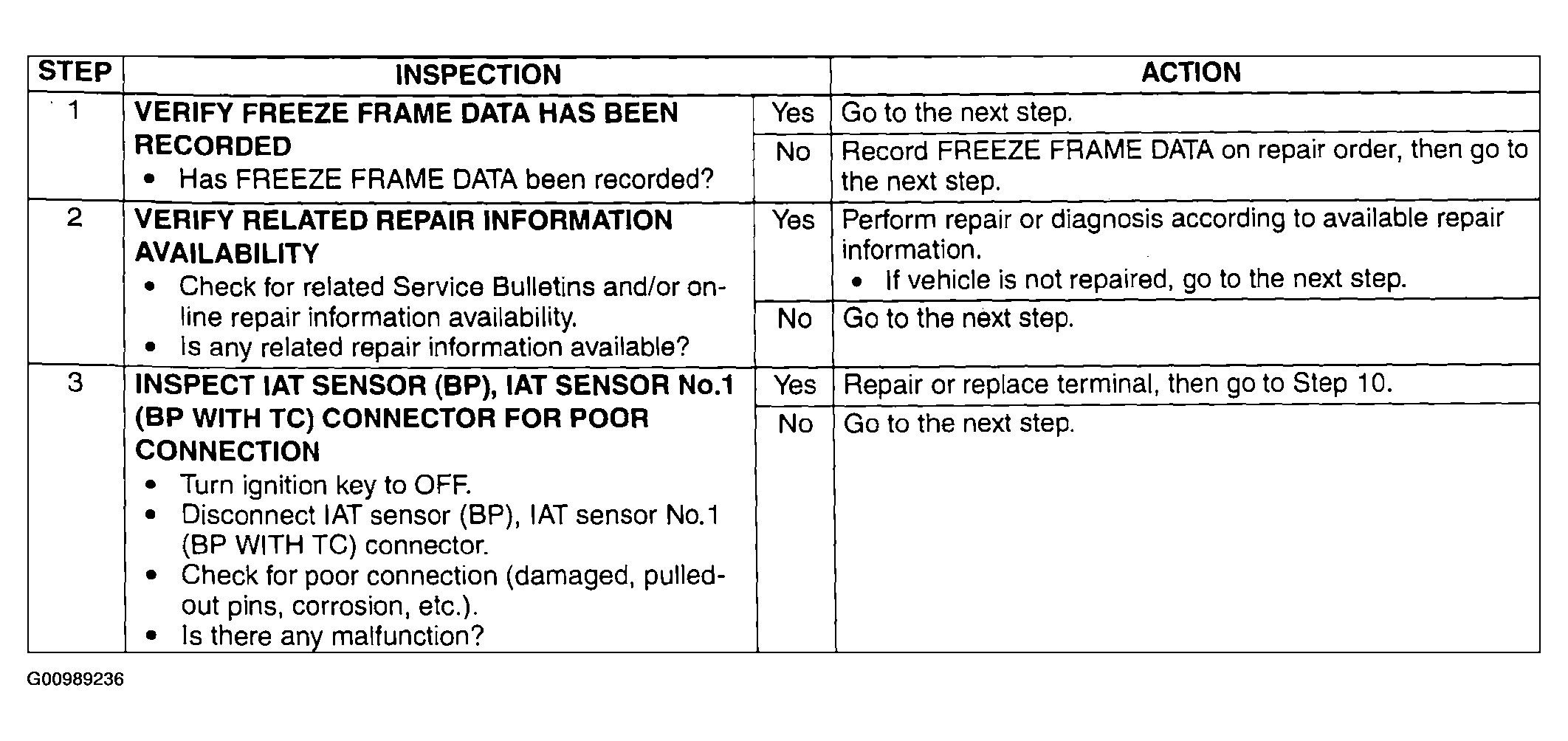

Fig 1: Diagnostic Procedure - DTC P0113 [BP, BP With TC] (Steps 1-3)
G00989236Courtesy of MAZDA MOTORS CORP.

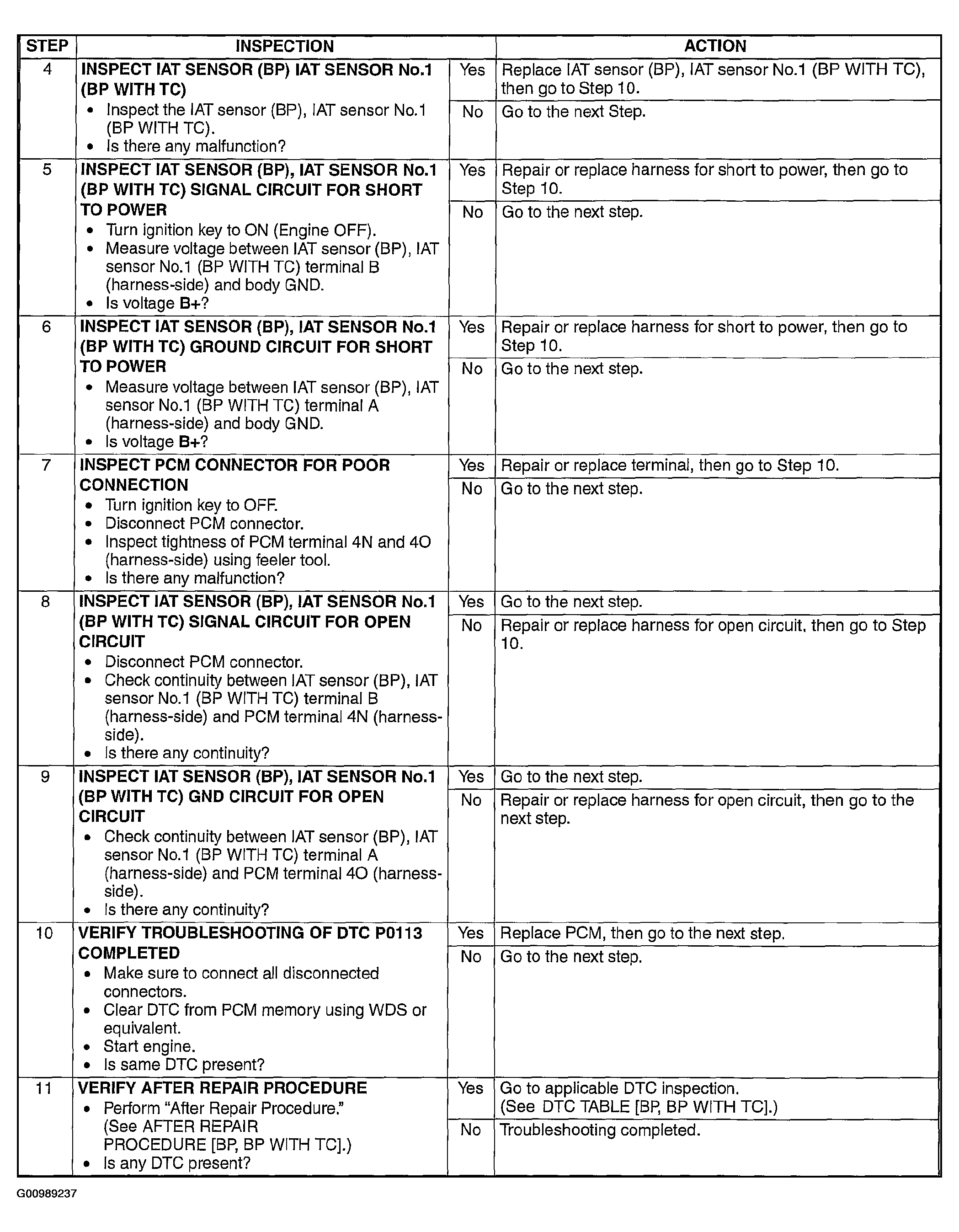

Fig 2: Diagnostic Procedure - DTC P0113 [BP, BP With TC] (Steps 4-11)
G00989237Courtesy of MAZDA MOTORS CORP.
