DTC P0134: Ho2S (Front) Circuit No Activity Detected
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

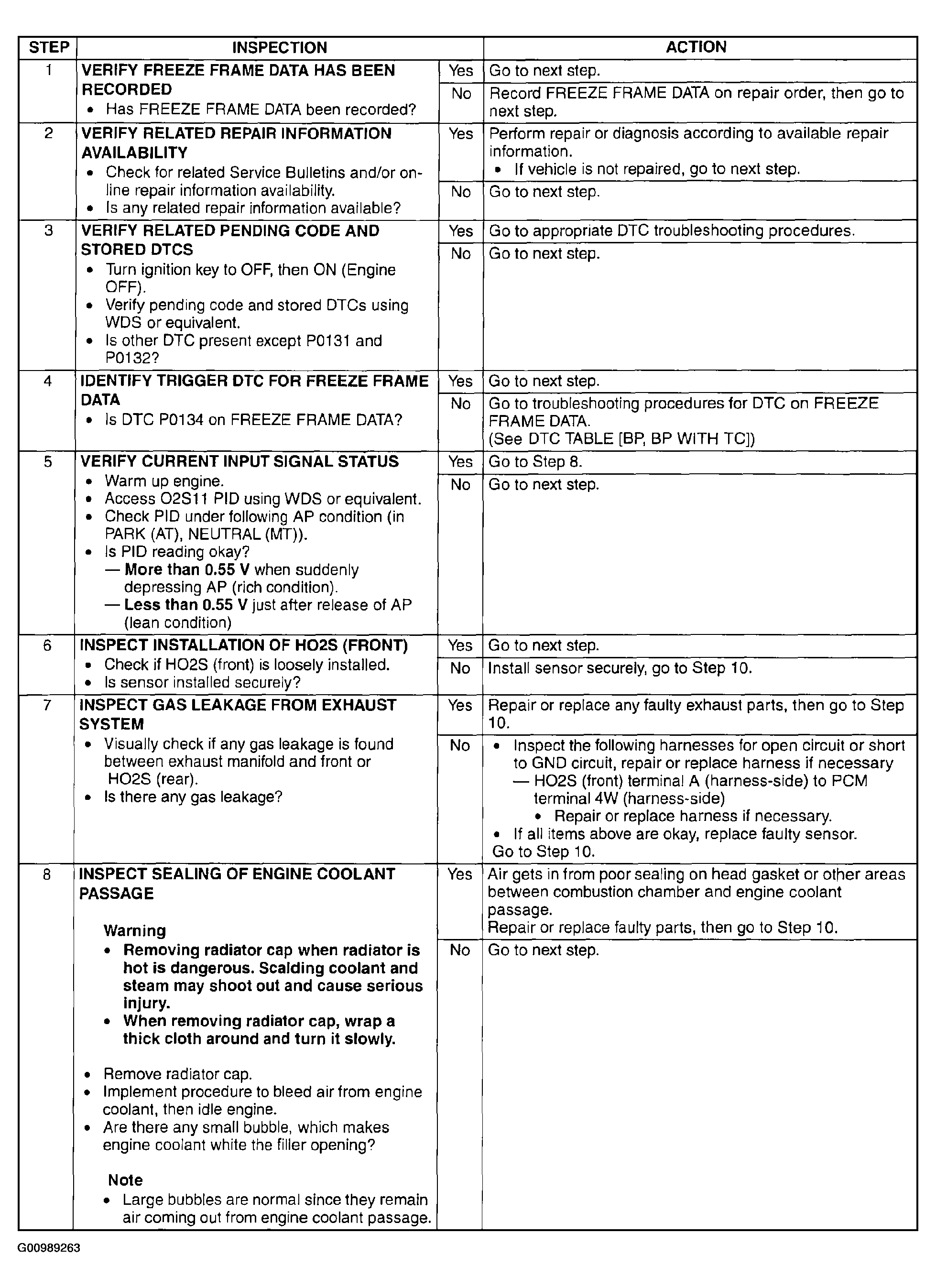

Fig 1: Diagnostic Procedure - DTC P0134 [BP, BP With TC] (Steps 1-8)
Courtesy of MAZDA MOTORS CORP.

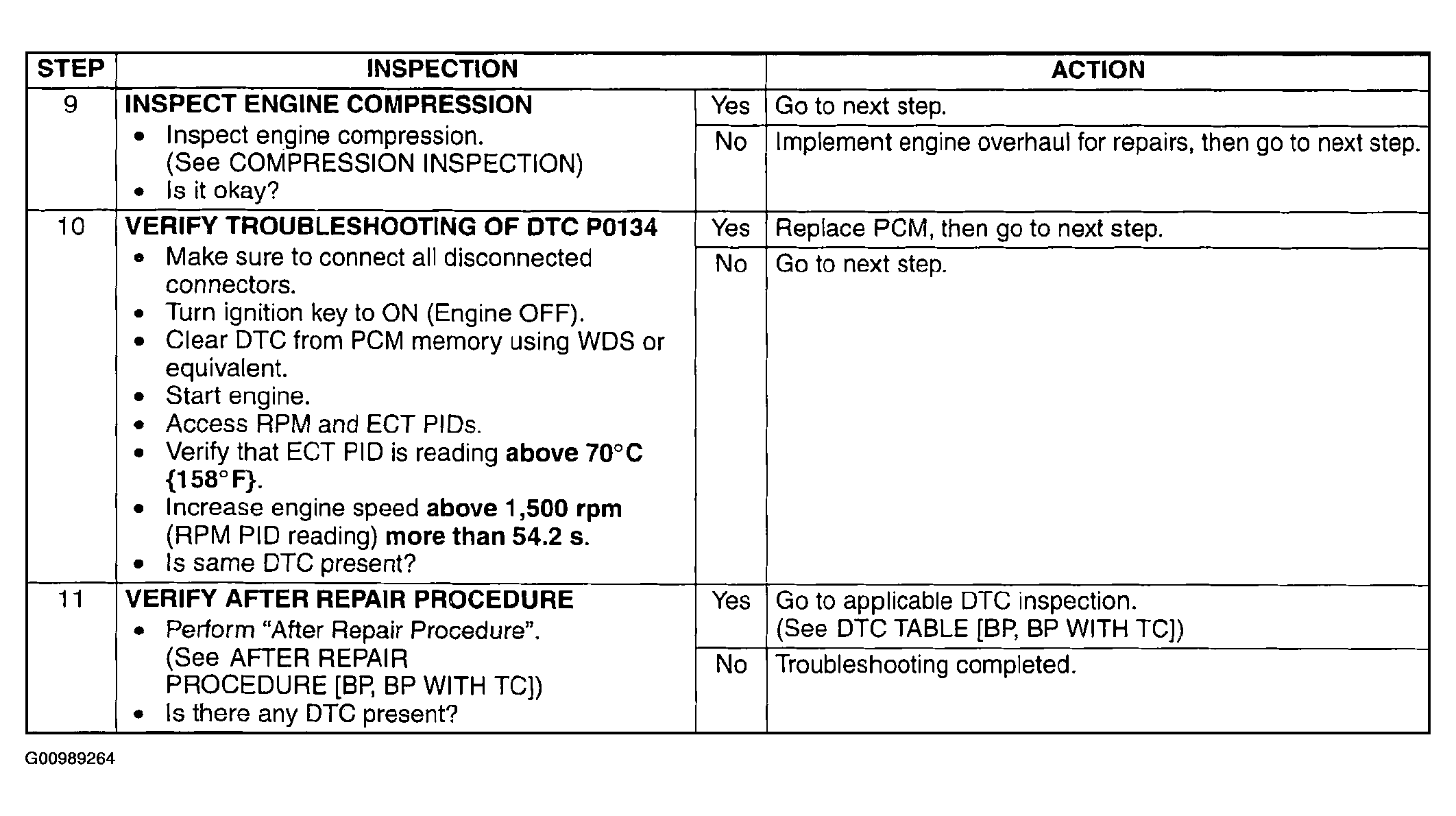

Fig 2: Diagnostic Procedure - DTC P0134 [BP, BP With TC] (Steps 9-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
