Engine Performance
>>
System
>>
On-Board Diagnostic (Engine Control System BP, BP With TC]
>>
DTC P0401: EGR Flow Insufficient Detected
>>
Diagnostic Procedure
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Procedure

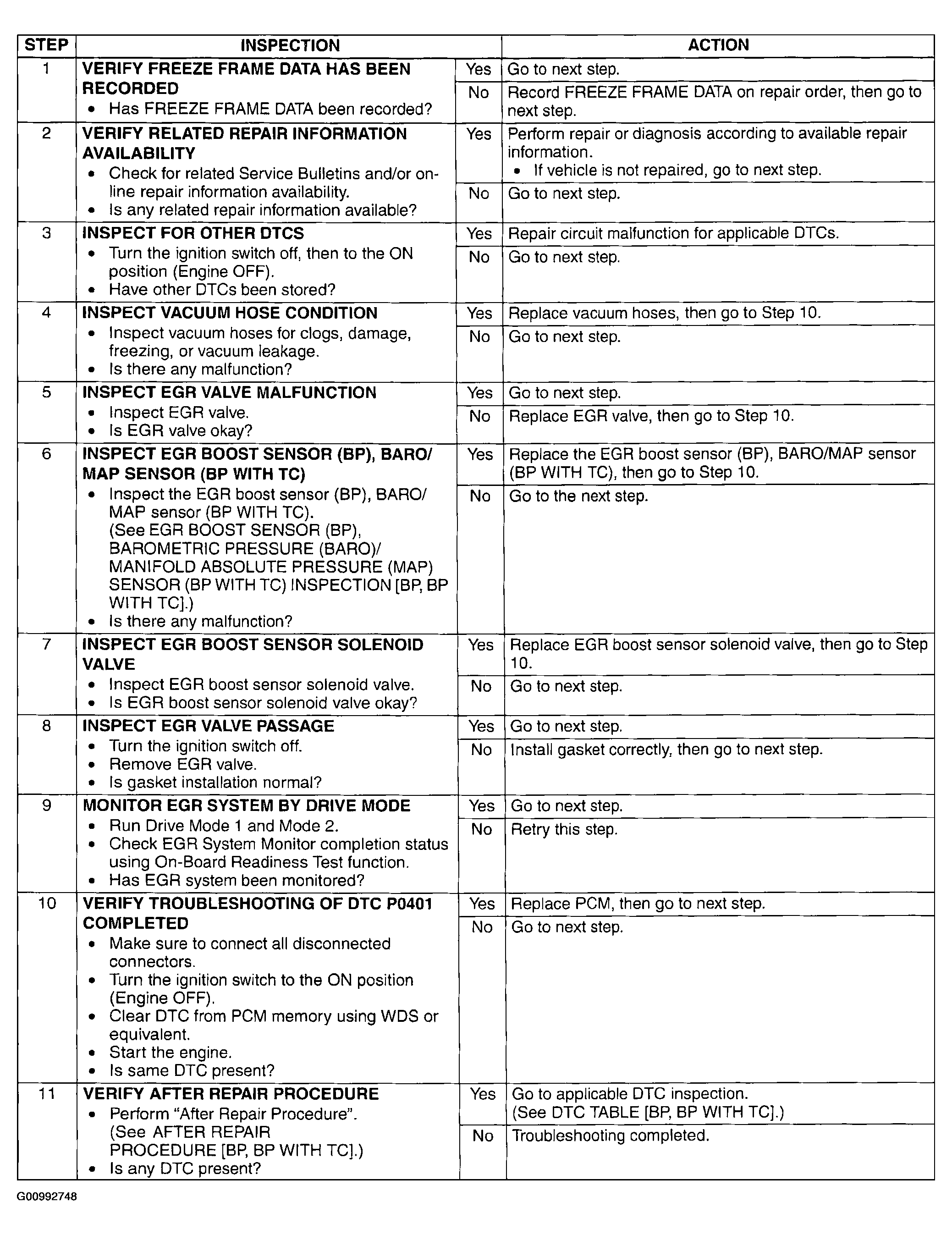

Fig 1: Diagnostic Procedure - DTC P0401 [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
