Seal Ring Assembly Note

  1. Install a new seal ring to the valve part of the pinion shaft using the SST.
  2. After installing it, seat it properly using the SST.
  3. Install the snap ring.

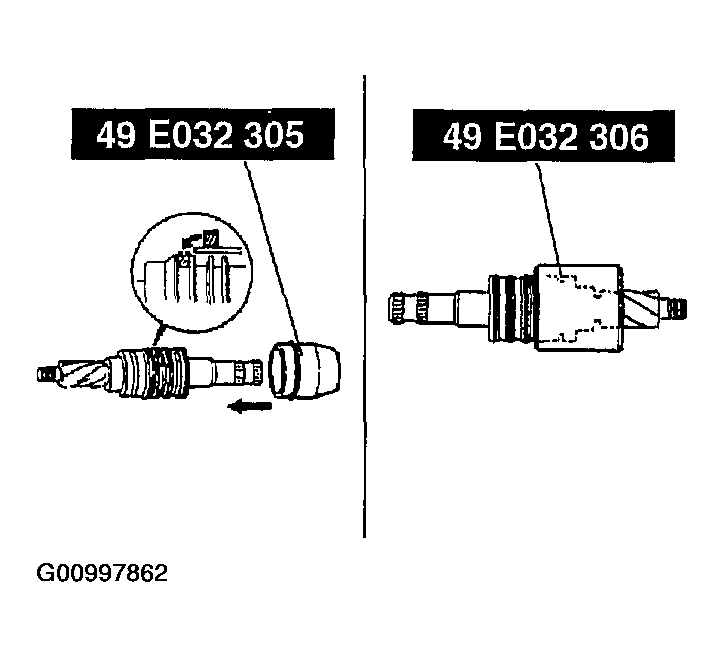

    Fig 1: Installing Snap Ring Using Special Service Tool
    G00997862Courtesy of MAZDA MOTORS CORP.
