Steering Lock Mounting Bolts and Bracket Assembly Note

  1. Install the steering lock component. Install the new steering lock mounting bolts. Tighten the bolts until the heads break off.

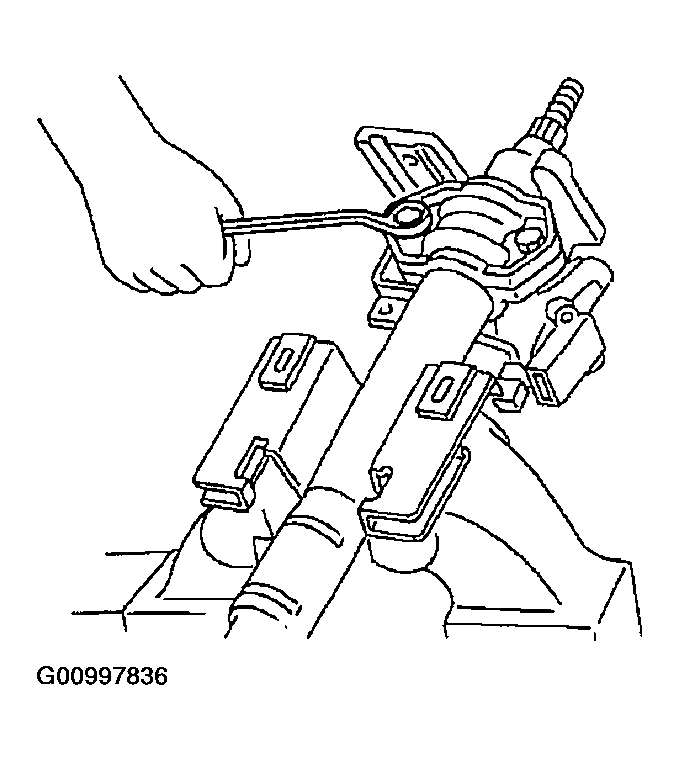

    Fig 1: Tightening Of Steering Lock Mounting Bolts
    G00997836Courtesy of MAZDA MOTORS CORP.
