Cruise Control Module Inspection: Notes
- Remove the lower panel.
- Remove the key interlock unit. See
KEY INTERLOCK UNIT REMOVAL/INSTALLATION
.
- Remove the cruise control module with the connector connected.

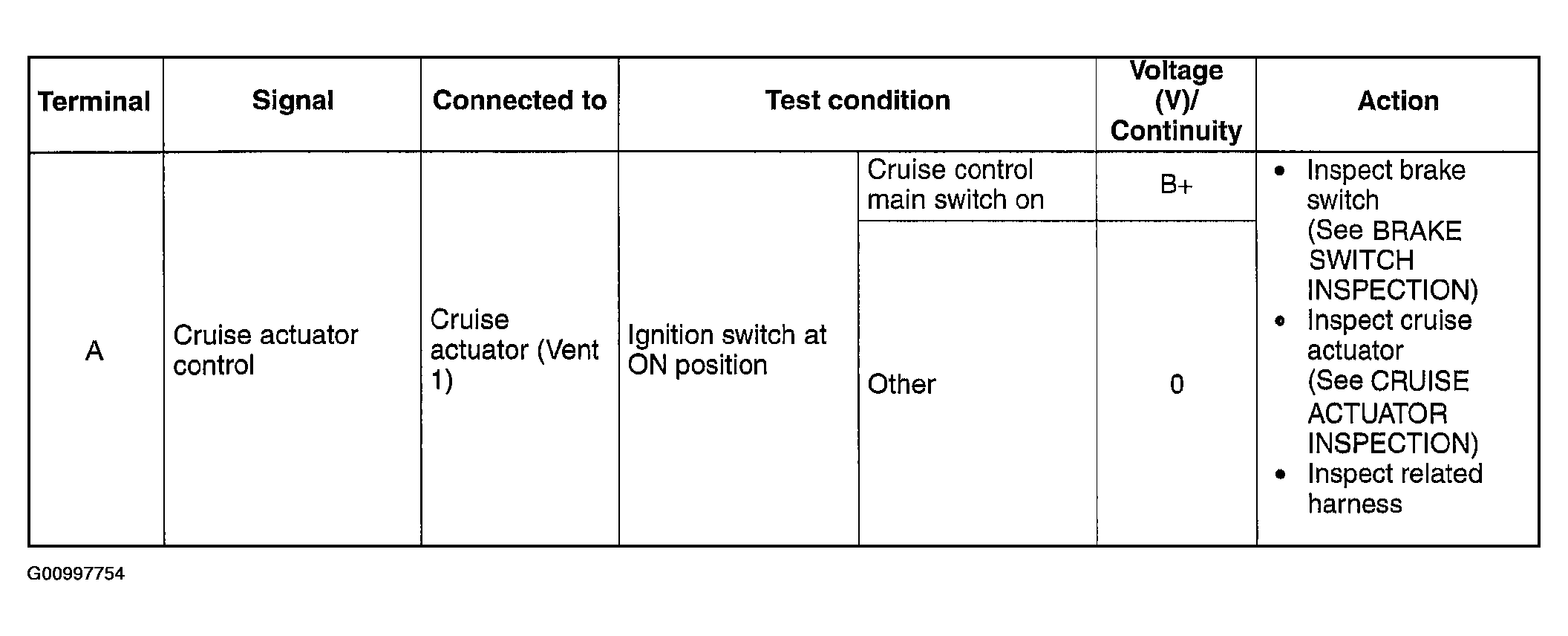

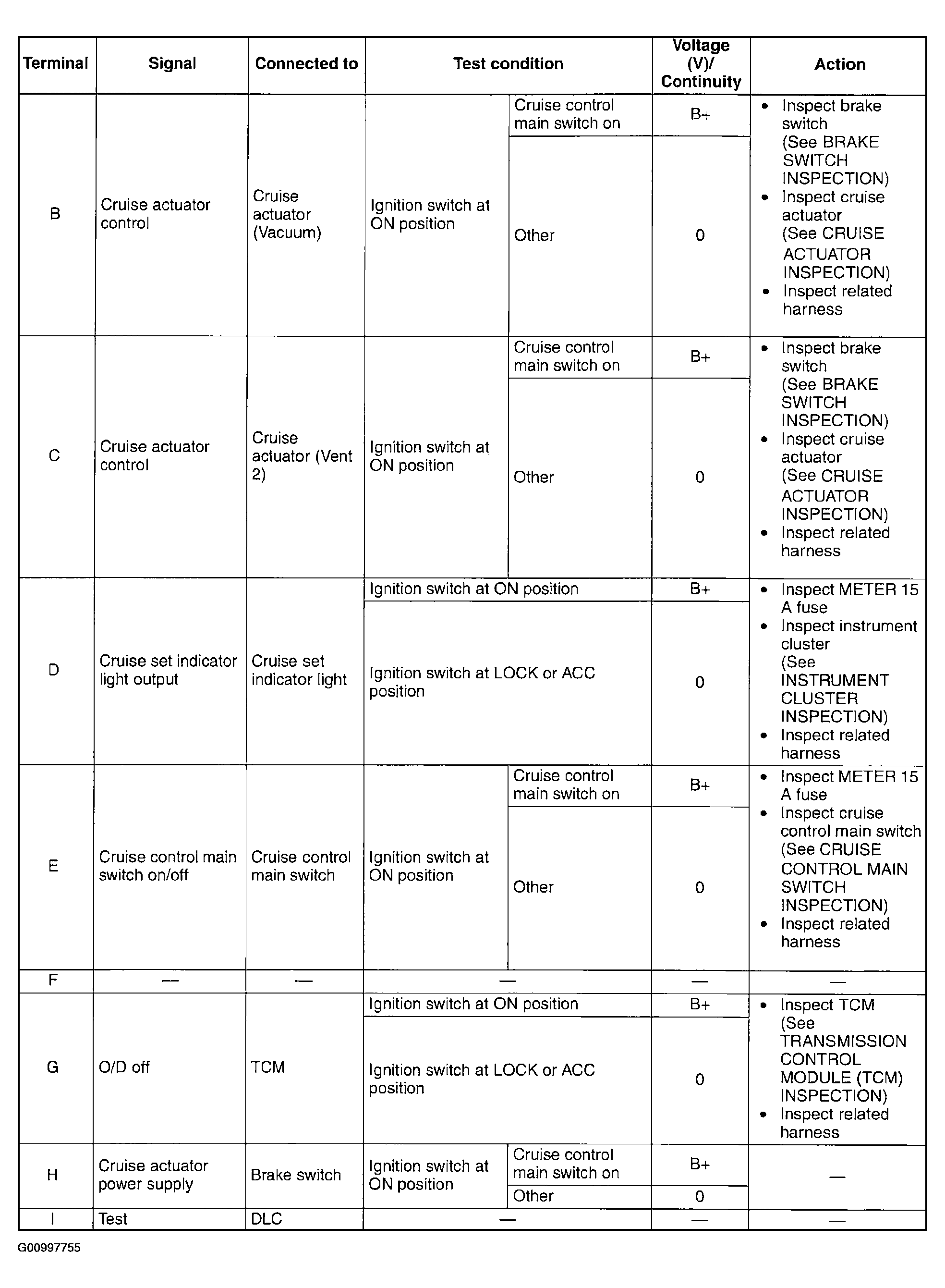

- Measure the voltage at the cruise control module terminals as indicated below.
- Disconnect the cruise control module connector before inspecting for continuity at terminal T.
- If not as specified, inspect the parts listed under "Action" in Figure and Figure.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise control module.
