Internal Trunk Lid Release Handle Installation Note

CAUTION:
  • Always keep the handle firmly attached to the holder and in the recessed position. Not securing the handle this way could allow it to snag luggage in the compartment and open the trunk lid.
  1. After installation of the internal trunk lid release handle, pull the handle forward to verify the handle and rod are securely installed.
  2. Attach the handle to the holder on the cover and in the recessed position.

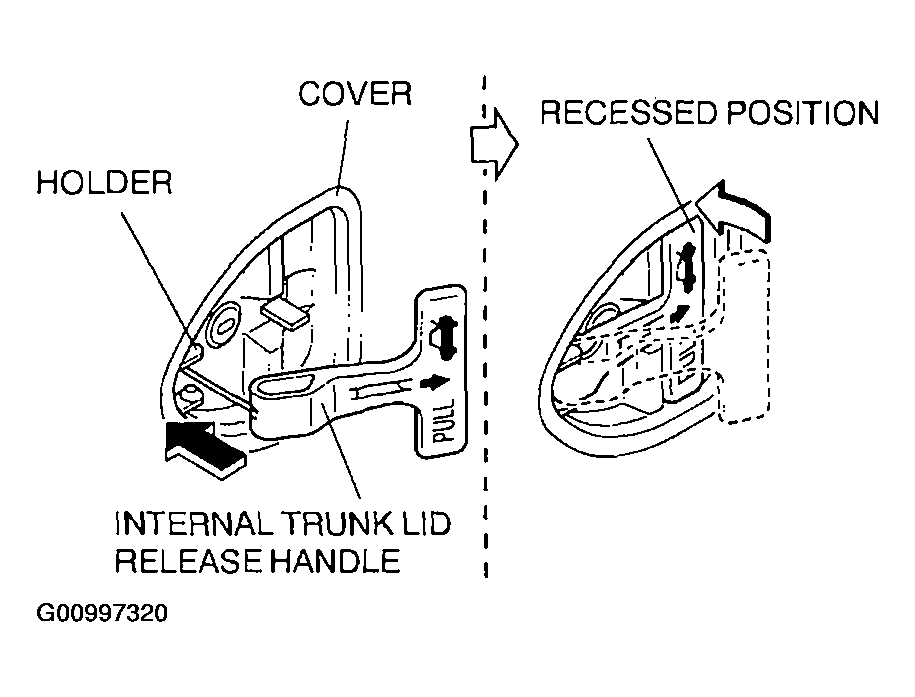

    Fig 1: Attaching Handle To Holder On Cover & In Recessed Position
    G00997320Courtesy of MAZDA MOTORS CORP.
