Power Outside Mirror Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Grasp the left and right sides of the power outside mirror switch and push it out to remove it.
  4. Disconnect the power outside mirror switch connector.
  5. Remove the power outside mirror switch.
  6. Install in the reverse order of removal.

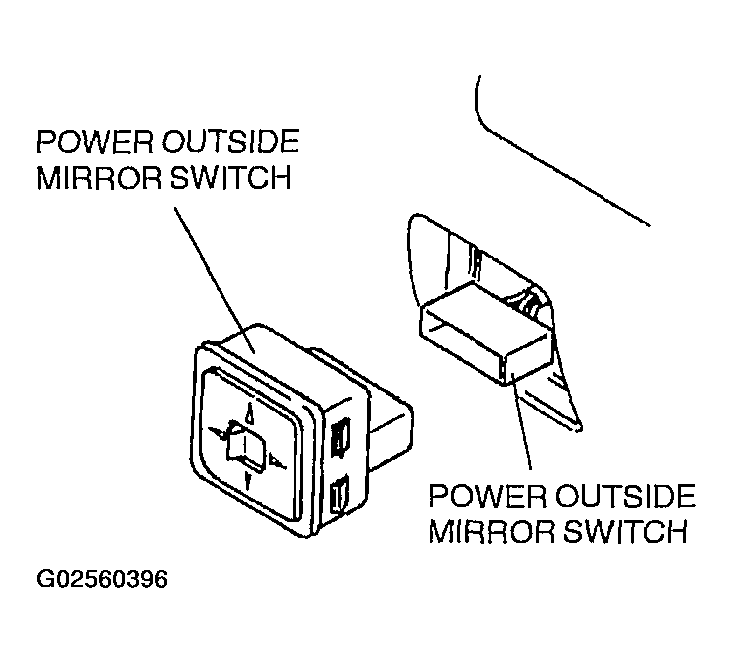

    Fig 1: Removing/Installing Power Outside Mirror Switch
    G02560396Courtesy of MAZDA MOTORS CORP.
