Power Window Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the power window switch. (See POWER WINDOW SWITCH REMOVAL/INSTALLATION .)
  3. Inspect for the continuity between the power window switch terminals using an ohmmeter.
    • If not as specified, replace the power window switch.
      Fig 1: Power Window Switch Terminals Continuity Table
      G02560363Courtesy of MAZDA MOTORS CORP.

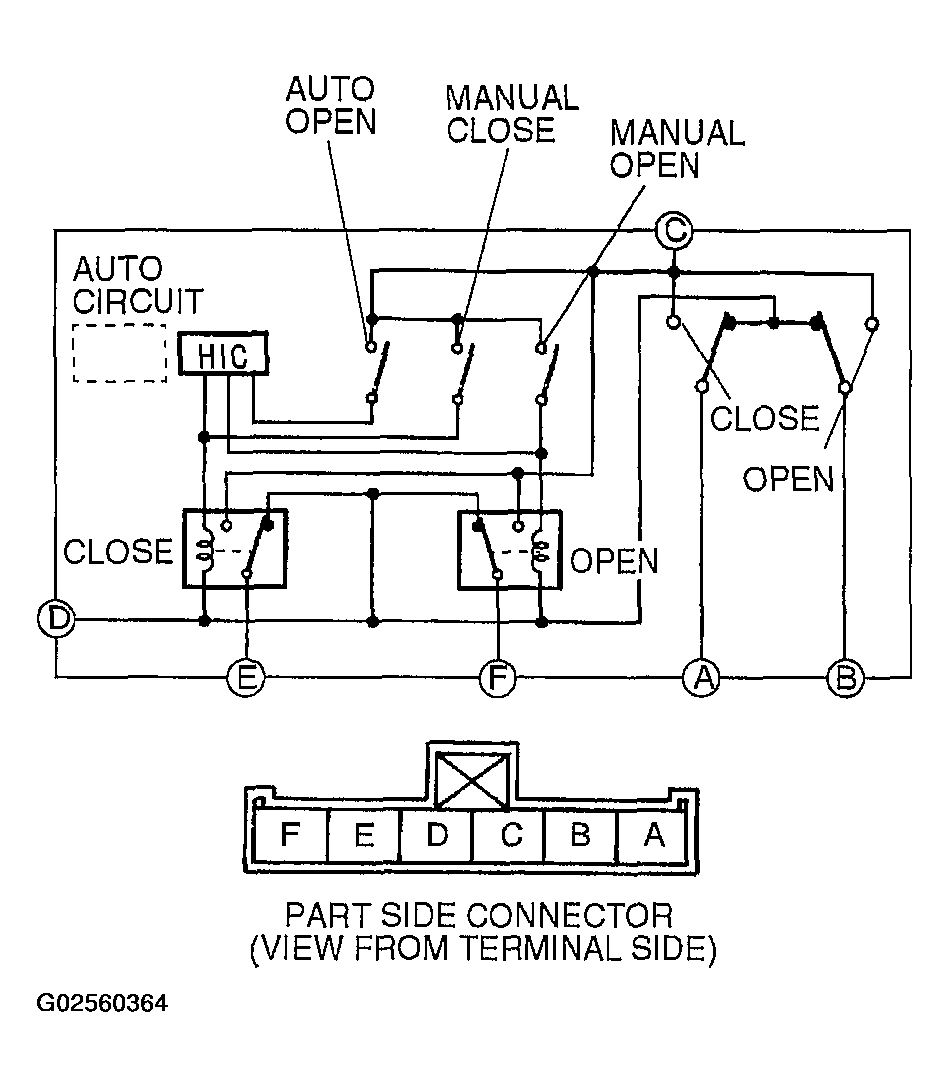

      Fig 2: Identifying Power Window Switch Terminals Connection
      G02560364Courtesy of MAZDA MOTORS CORP.
